24.7
Removing variator drive plate
L
Note:
The following description of variator drive plate re-
moval applies to both the lubricated and the unlubri-
cated version! Note differences during assembly
and installation!
To enhance clarity some of the illustrations portray
the components with the powertrain cradle removed
•
Remove vent cover
•
Remove variator cover
e
Attention:
Make sure that belt and belt pulleys remain free of
oil and grease!
•

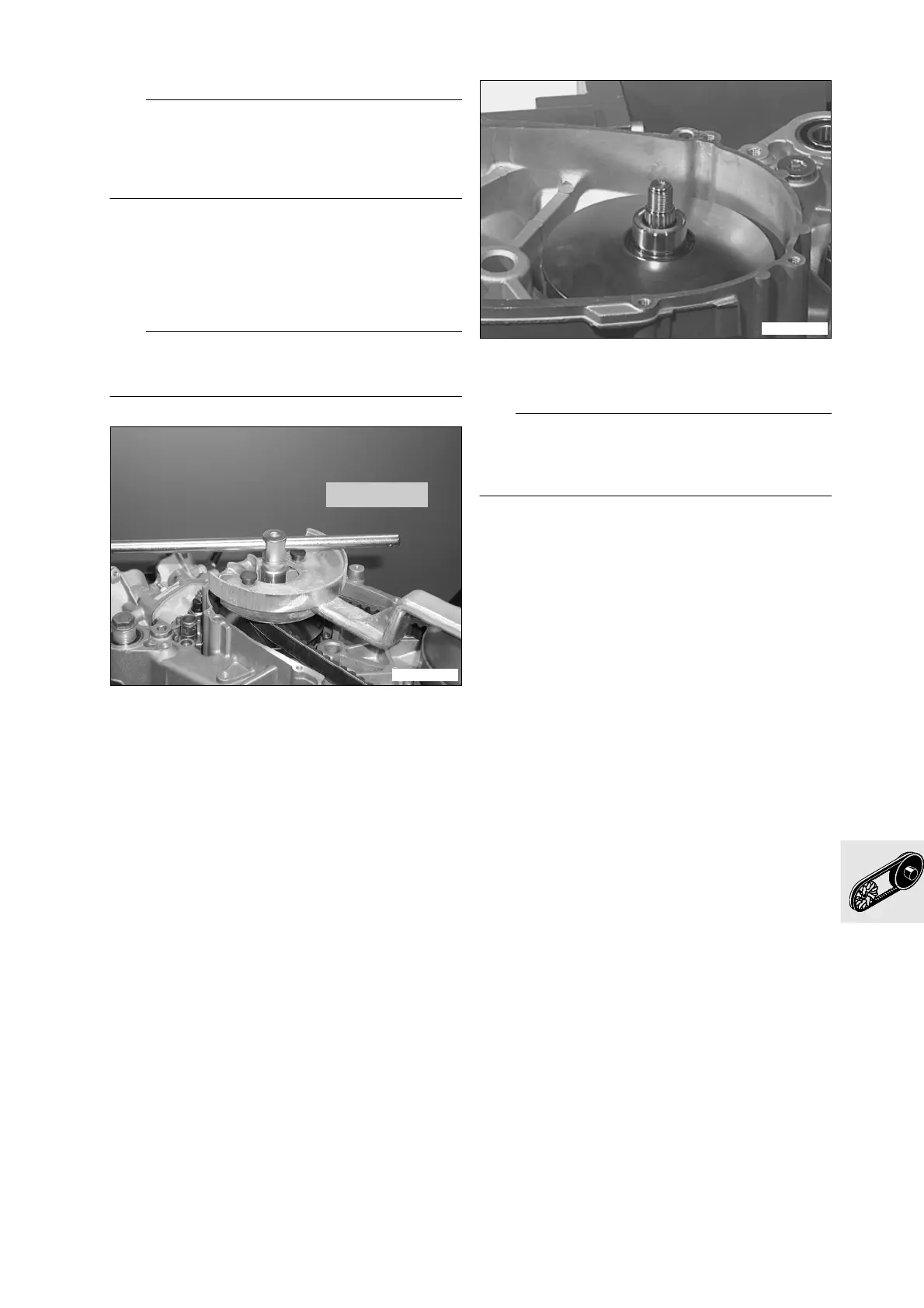

Use retainer,
BMW No. 11 7 521,
to undo nut on
outer plate of drive variator from the crankshaft
•
Remove outer plate from crankshaft
•
Remove belt
•
Remove drive wheel with bearing tube (spacer)
from crankshaft
e
Attention:
Insert a cloth or piece of foam rubber between taper
plate and sealing cover to prevent the roller weights
from jamming!
11 7 521
C1110411
C1110420
