BMW C1 200 - Articulated Joint Hand Lever Mechanism Removal and Installation; Large Hand Lever Removal and Installation

46.37
Articulated joint hand lever mechanism
removal and installation
Large hand lever removal and installation
– Remove instrument trim
a
....................................................See Group 46
•

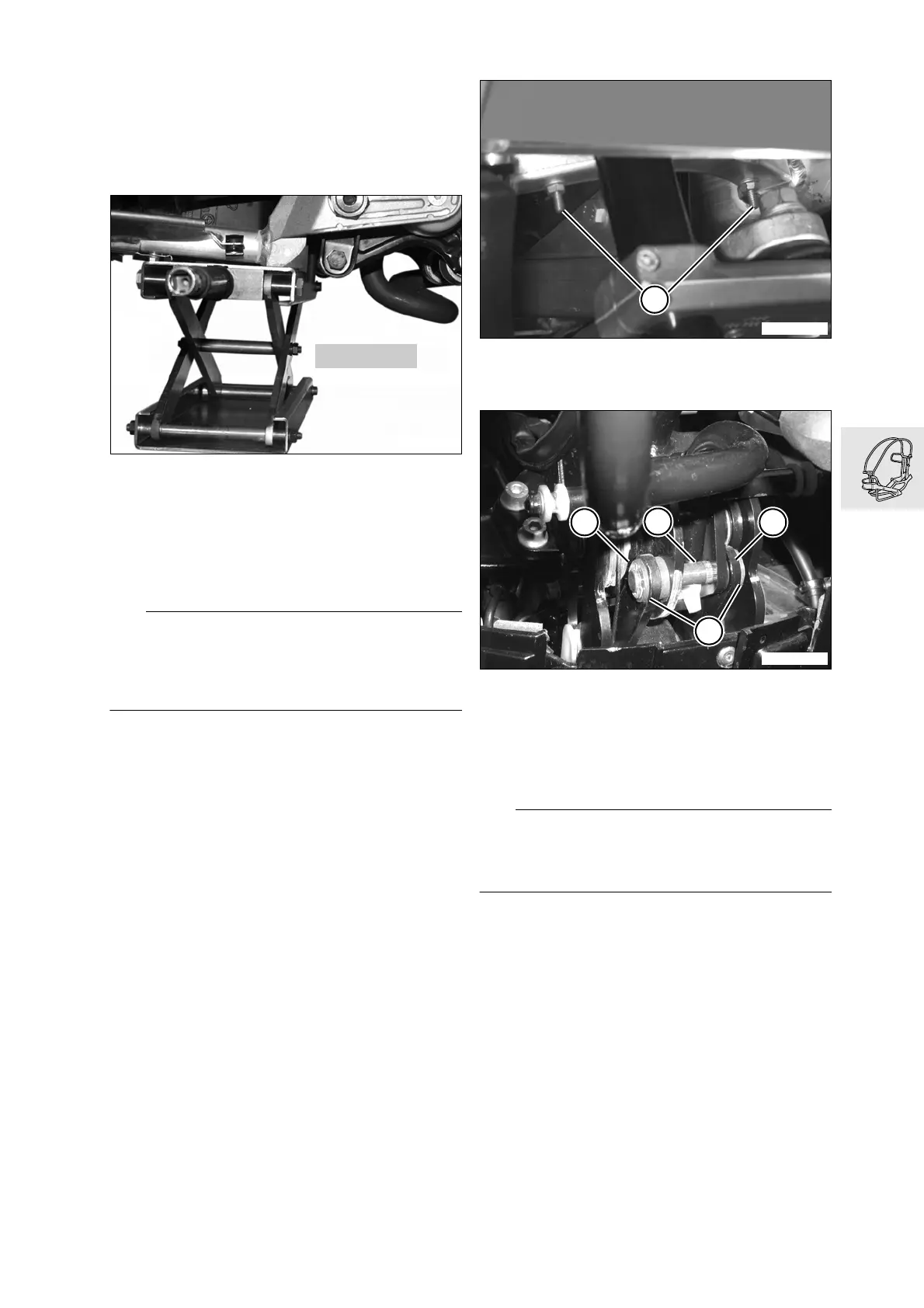

Position hoist,
BMW No. 00 1 570,
to allow re-
traction of the stand
•
Use hoist,
BMW No. 00 1 570,
to raise C1 so
that front wheel is clear and the C1 is securely
supported
•
Lower the front wheel (easy-lift mechanism - start
by moving the large lever up, then move it down)
L
Note:
The new version of the articulated joint mechanism
incorporates but a single spring, on the right (8). The
operations associated with removal of the left-side
spring are thus redundant on the new version!
•
Release eye bolt mount(s) (1)
•
Detach spring(s) at top
•
Easy-lift mechanism - snap large lever into place
by first moving it all the way up, and then moving
it down
•
Support the front wheel and position C1 without
weight on the large lever (pointing up)
•
Remove circlips (1) and washers (4)
e
Attention:
When tapping out the stud do not damage the
groove for the circlips!
Do not lose the washers!
C1130050
00 1 570
C1460460
1
C1310320
4
1 3
2
