BMW C1 200 - Indicator LED Replacement; Control Unit Replacement

65.7

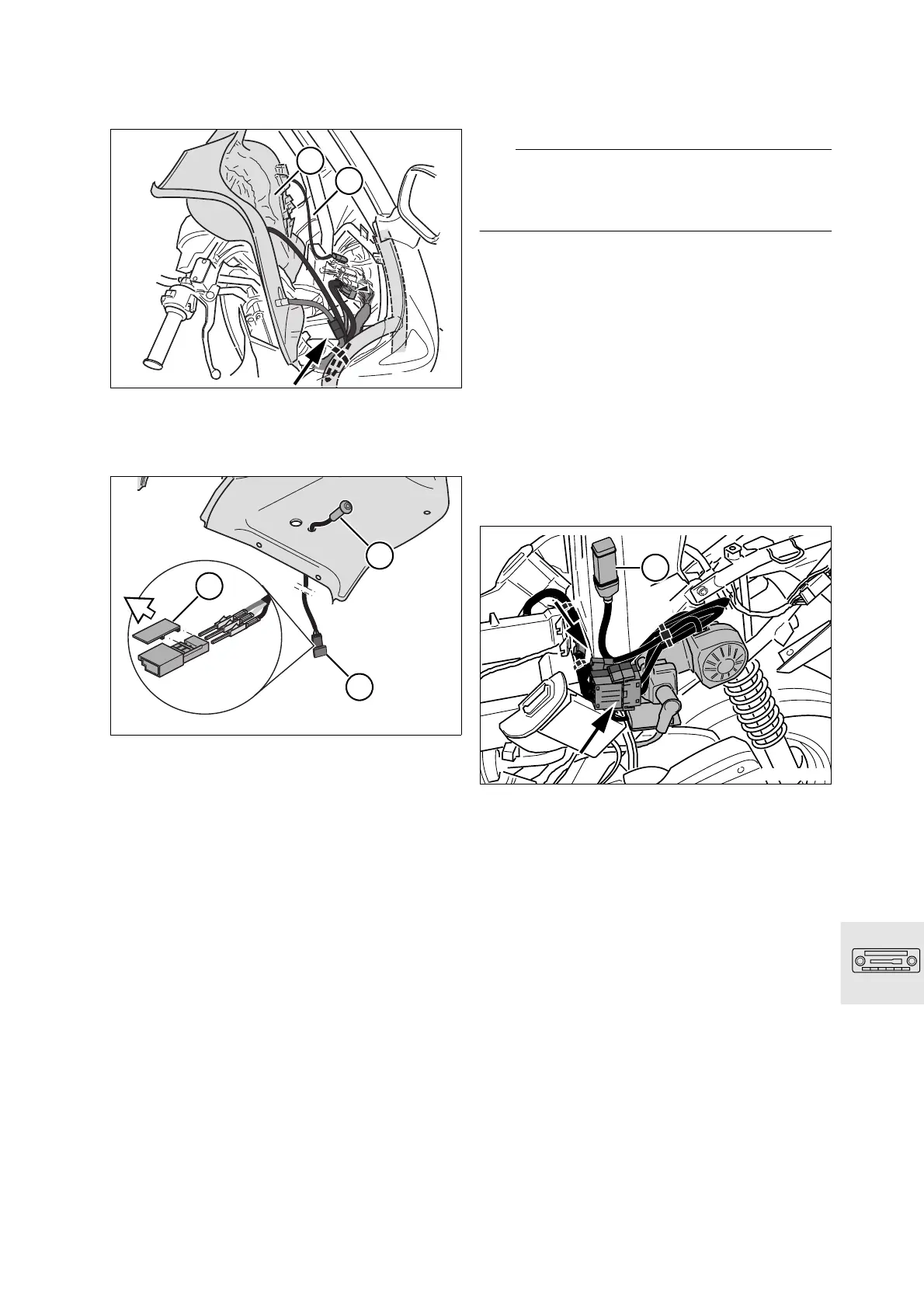

Indicator LED replacement
– Deactivate alarm system (
a
65.4)
•
Remove instrument trim far enough to gain ac-
cess to the plug-in connection (arrow)
•
Disconnect plug
•
Open plug housing (2) by sliding cover (3) to the
side
•
Remove wire
•
Remove indicator LED (1)
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
When installing ensure that the wiring is routed cor-
rectly! Avoid potential areas of rubbing and abra-
sion!
•
Correctly install wire in plug housing
Socket wire colour
1 ......................................................................red
2 ...................................................................white
3 .................................................................. black
Control unit replacement
– Deactivate the alarm system (
a
65.4)
–Remove seat
– Remove the backrest
a
....................................................See Group 52
– Remove rear left side panel
a
....................................................See Group 46
•
Separate plug-in connections (arrows)
•
Remove receiver (1) from key fob
C1650050
2
1
3 2 1
110
10
30
50
70
90
13
C1650040
1
2
1
3
3
C1650060
1
