Roof bar replacement
The procedure for replacing the left roof bar is de-
scribed below. The procedure for replacing the right
roof bar is essentially the same.
– Remove front fairing panel
– Remove left and right mirrors
– Disengage side trim panels from front frame at
left and right
– Remove wiper arms
– Remove instrument trim
– Remove the backrest
– Remove head restraint
– Remove the storage compartment
– Remove the rear panel
– Remove spoiler
– Remove lightweight foam element from cross
brace
– Remove inside trim of C-pillars
– Remove lightweight foam elements from left and
right C-pillars
– Remove roof
– Remove front windscreen
– Remove mirror brackets
•

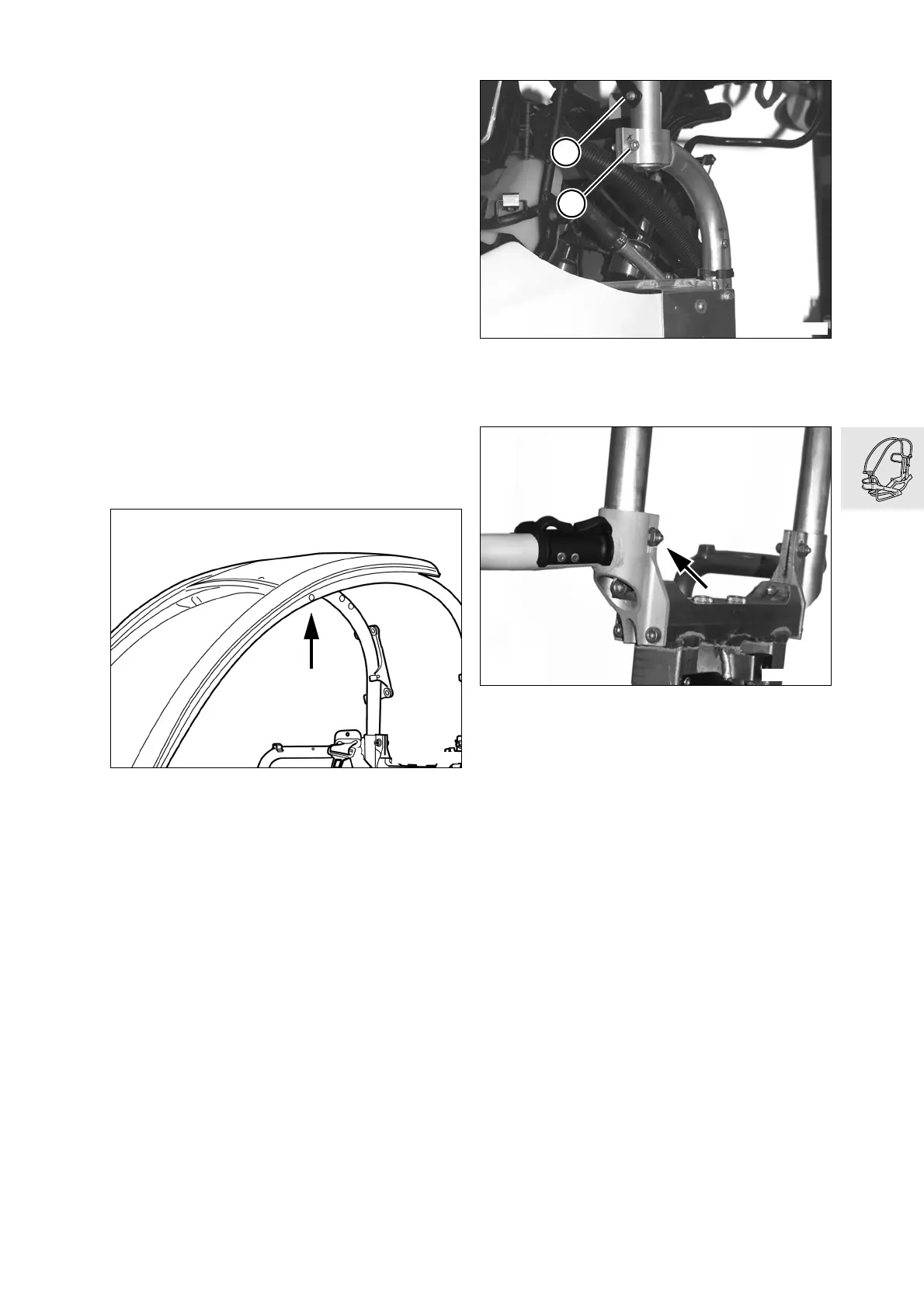

Remove fastener (arrow) for cross brace
•
Remove fastener (1) securing subframe for front
windscreen/wiper motor to roof bar
•
Release clamp (2) securing frame at front
•
Slacken clamp (arrow) for shoulder bar
•
Lift up roof bar and remove
