46.30
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:

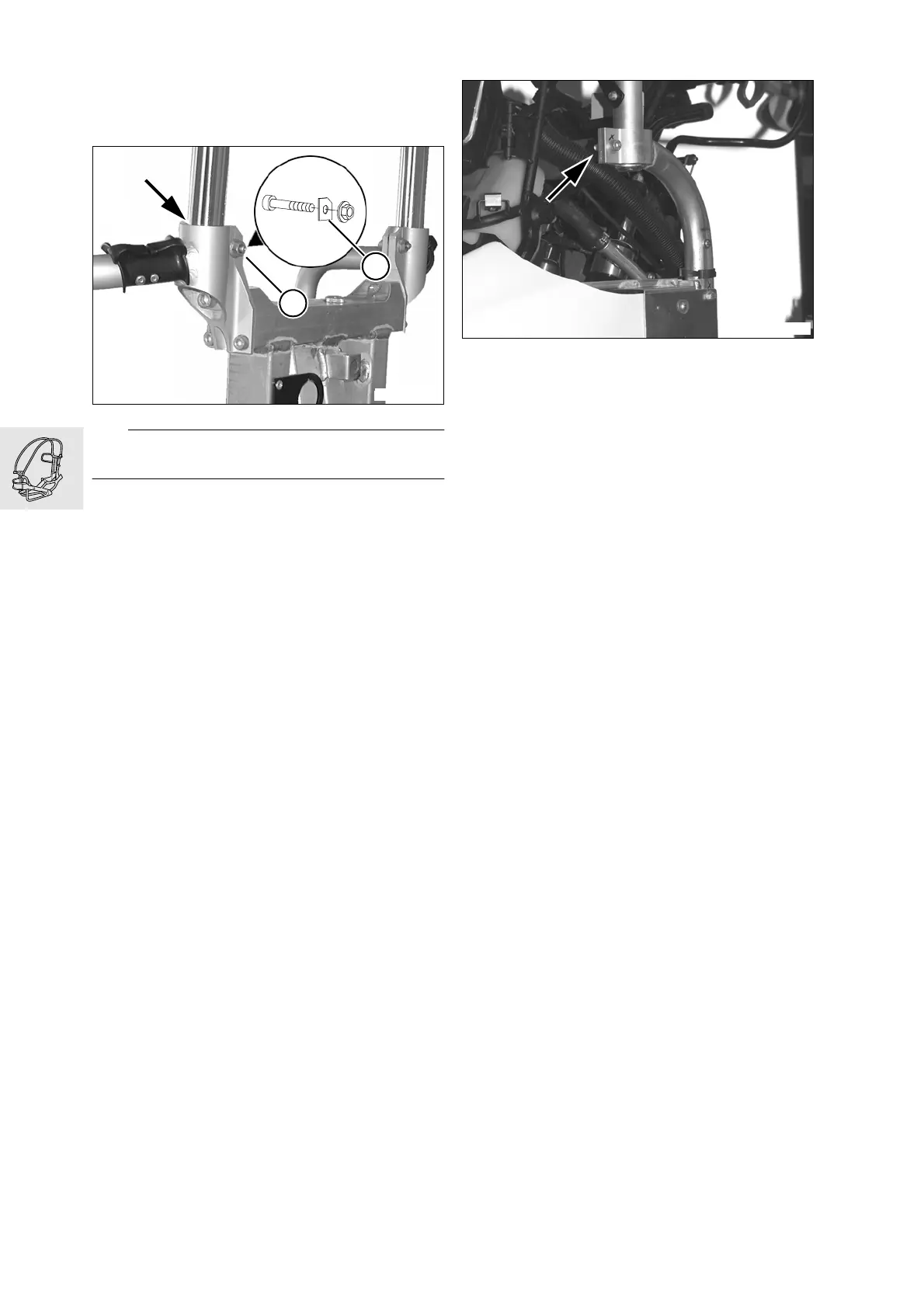

Note installed position of washer (2)!
•
Install roof bar in rear clamp (arrow) and gently
tighten screw (1)
•
Install rear trim
•
Align roof bar with rear trim
•
Tighten retainer for rear roof bar
•
Install roof bar in front retainer (arrow) and tighten
gently
•
Install mirror bracket
•
Install side trim
•
Align the front of the roof bar with the mirror
bracket centred in the side trim's recess
•
Tighten down front roof bar retainer
X
Torque specification:
Front roof bar retainer .................................. 21 Nm
Rear roof bar retainer ................................... 21 Nm
Cross brace retainer .................................... 21 Nm
Windscreen attachment ................................. 5 Nm
Mirror bracket attachment .............................. 5 Nm
1
2
C1460381
C1460370
