46.57

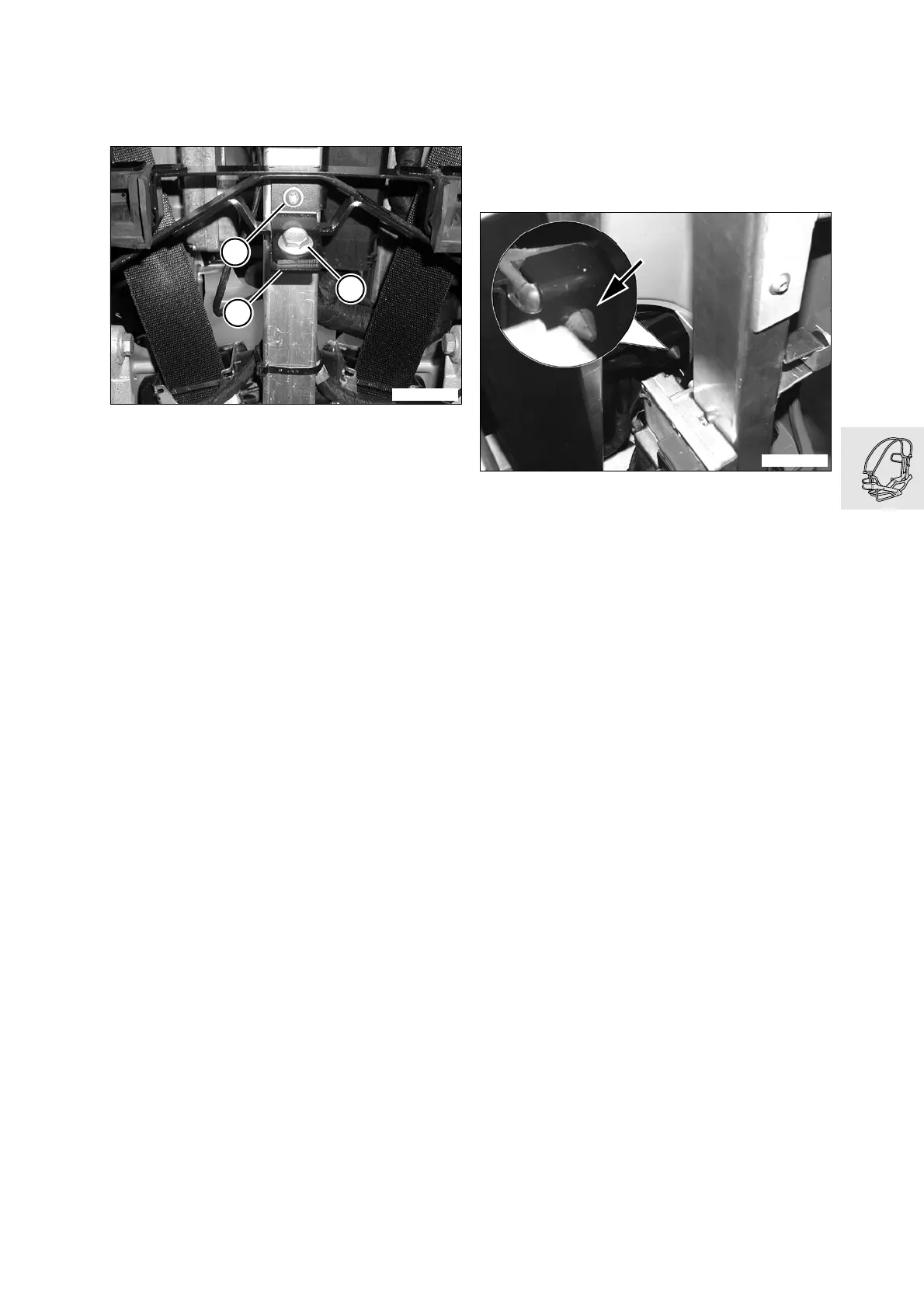

Upper bracket removal and installation
– Remove the rear storage compartment
•
Undo upper bracket to bracket mount (2)
•
Undo upper bracket mount (1) on frame
•
Remove upper bracket (3)
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Upper bracket to frame .................................. 8 Nm
Upper bracket to bracket ............................. 21 Nm
Support base removal and installation
The following section describes the procedures for
left-side rubber support base. The operations for the
right side are essentially the same.
– Remove the backrest
– Remove the rear storage compartment
•
Remove support base by extracting to the
rear (arrow)
When installing:
•
Installation is the reverse of the removal proce-
dure
C1460990
2
3
1
C1461000
