31.17
– Install seal holder (
a
31.14)
– Install telescopic tube seal (
a
31.13)
•
Install front wheel
– Install telescopic tube cross brace with telescop-
ic tubes (
a
31.18)
X
Torque specification:
Clamp, telescopic tube ................................ 25 Nm
Replacing telescopic tube cross brace
– Remove telescopic tube cross brace with tele-
scopic tubes (
a
31.11)
•
Remove front wheel
– Remove ball joint (
a
31.18)
– Remove seals from both telescopic tubes
(
a
31.13)
– Remove telescopic tubes (
a
31.16)
L
Note:
The remaining fork oil can be allowed to run out!
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
•
Install telescopic tubes
•

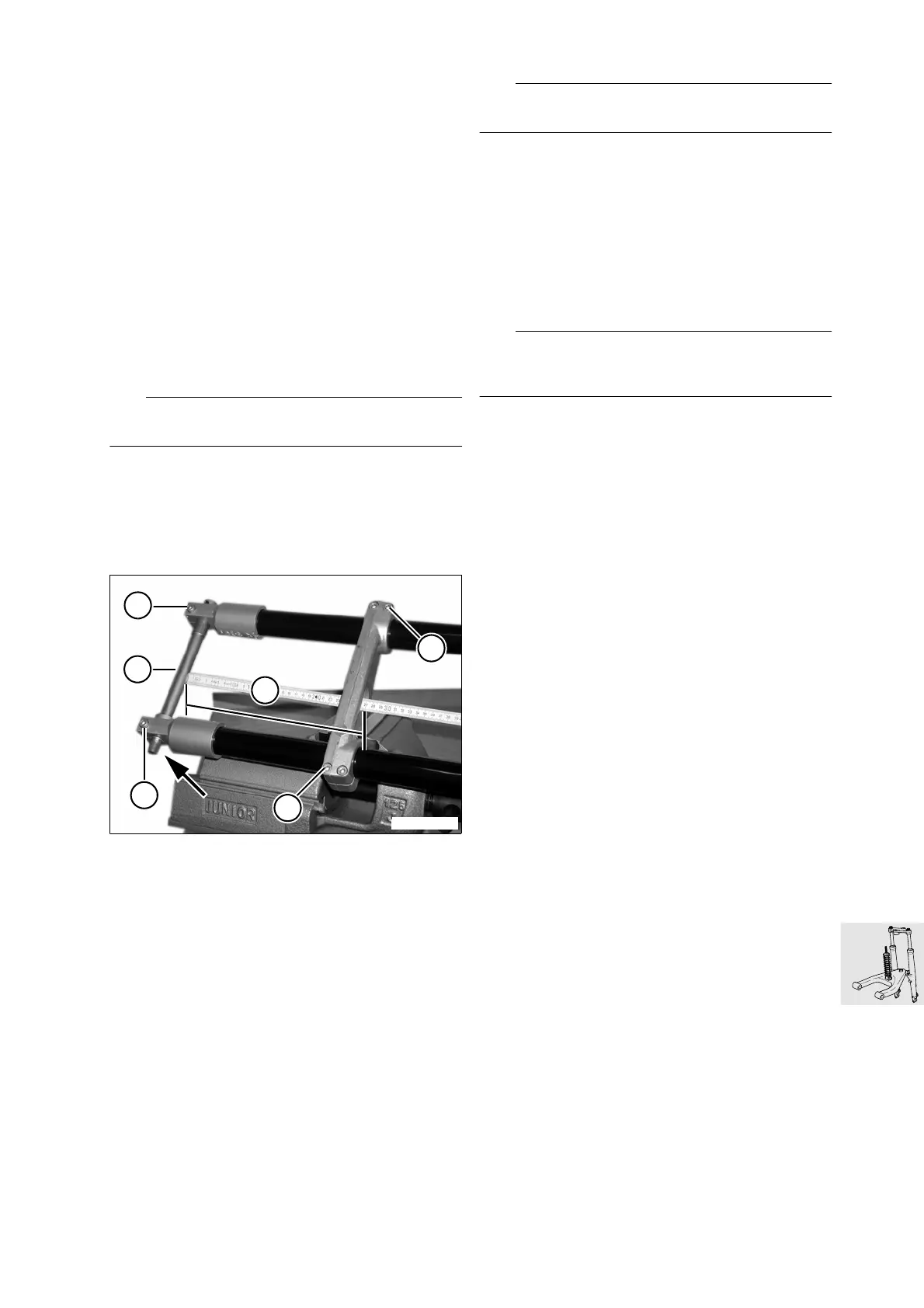

Insert floating axle (5) through both telescopic
tubes while turning the floating axle (5) through
several rotations
L
Note:
The threads (arrow) must be completely visible!
•
Tighten clamps on (1, 4) floating axle
•
Adjust telescopic tubes to dimension "x"
•
Tighten clamp on (3) telescopic tube to specified
torque
•
Loosen clamp (1, 4) on floating axle
•
Turn floating axle while adjusting second tele-
scopic tube
•
Tighten clamp (3) on telescopic tube to specified
torque
•
Check installation by rotating floating axle (5)
L
Note:
After tightening the floating axle (5) should still be
easy to turn and to remove!
– Install seal holder (
a
31.14)
– Install telescopic tube seal (
a
31.13)
•
Install front wheel
– Install telescopic tube cross brace with telescop-
ic tubes (
a
31.18)
X
Torque specification:
Telescopic tube clamp ................................. 25 Nm
Adjustment specifications:
Adjustment dimension for upper floating axle to con-
tact surface of ball joint "x" ................268.9 ± 1 mm
............................................. (10.5866 ± 0.0394 in)
C1310360
X
5
3
4
1
2
