BMW C1 200 - Replacing Air Cleaner Element; (Inspections II and III); Empty Drain Pipe from Intake-Air Plenum Chamber; (Inspection IV)

00.43
Replacing air cleaner element
(Inspections II and III)
•

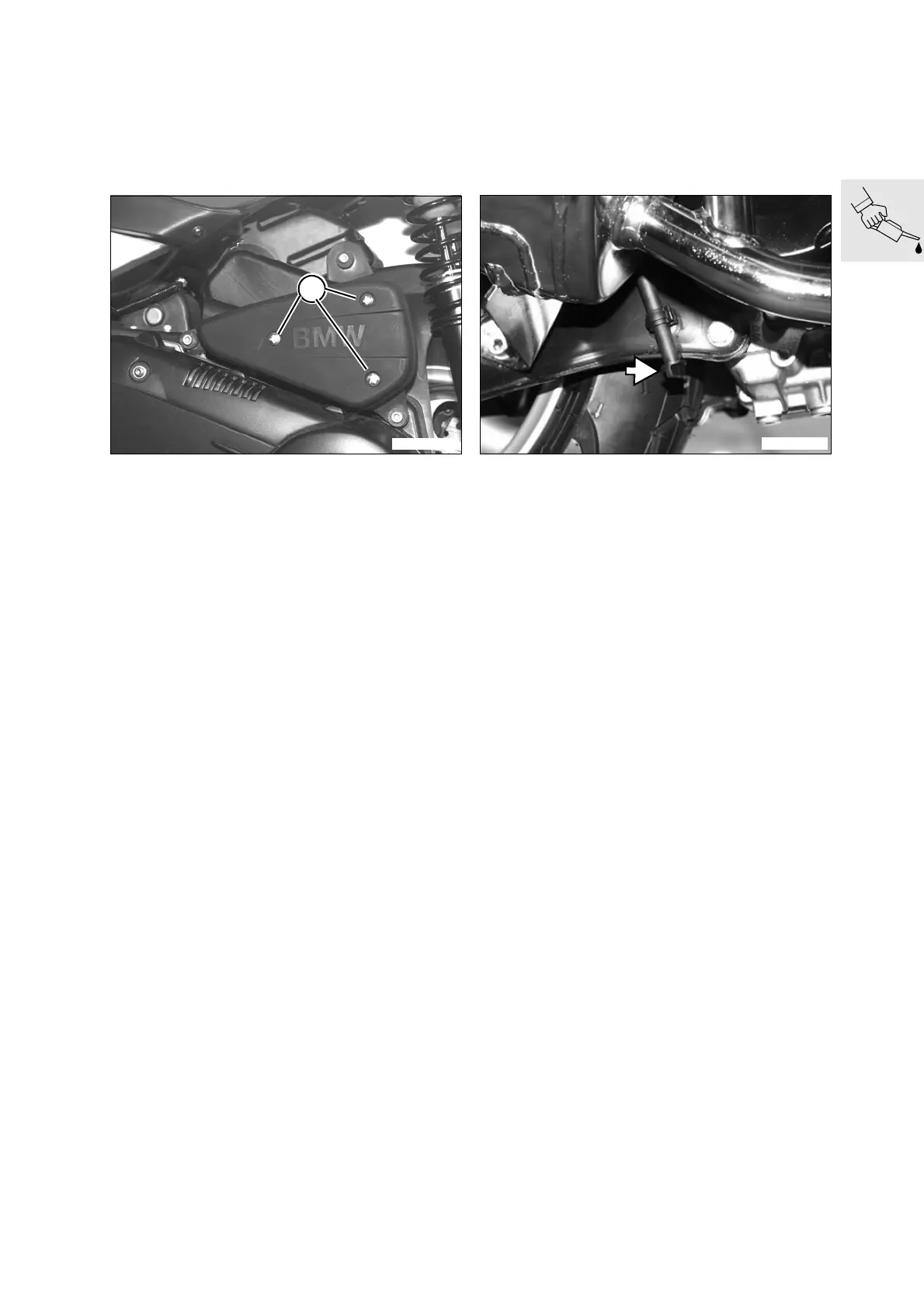

Remove fasteners (1) securing cover to air filter
housing
•
Replace air filter element
Empty drain pipe from intake-air
plenum chamber
(Inspection IV)
•
Empty the drain pipe from the air cleaner housing
•
Remove plug (arrow) and allow oil which has
drained out to escape
•
Assembly is the reverse of the dismantling pro-
cedure
C1130010
1
C1000130
