BMW C1 200 - Page 151

16.5
16 11 030
Removing and installing fuel
tank
e
Attention:
Disconnect earth cable from battery and insulate it!
–Open the seat
– Remove left service cover
– Remove top and left tunnel panels
a
....................................................See Group 46
•
Release tunnel panel on right from frame
•
Release tunnel panel on right from front anchor-
age point
d
Warning:
Comply with safety precautions when handling or
working with fuel; note that the fuel lines are pressu-
rised!
•
Remove fuel cap
•
Remove overflow guard from fuel filler neck
•
Reinstall fuel cap
•

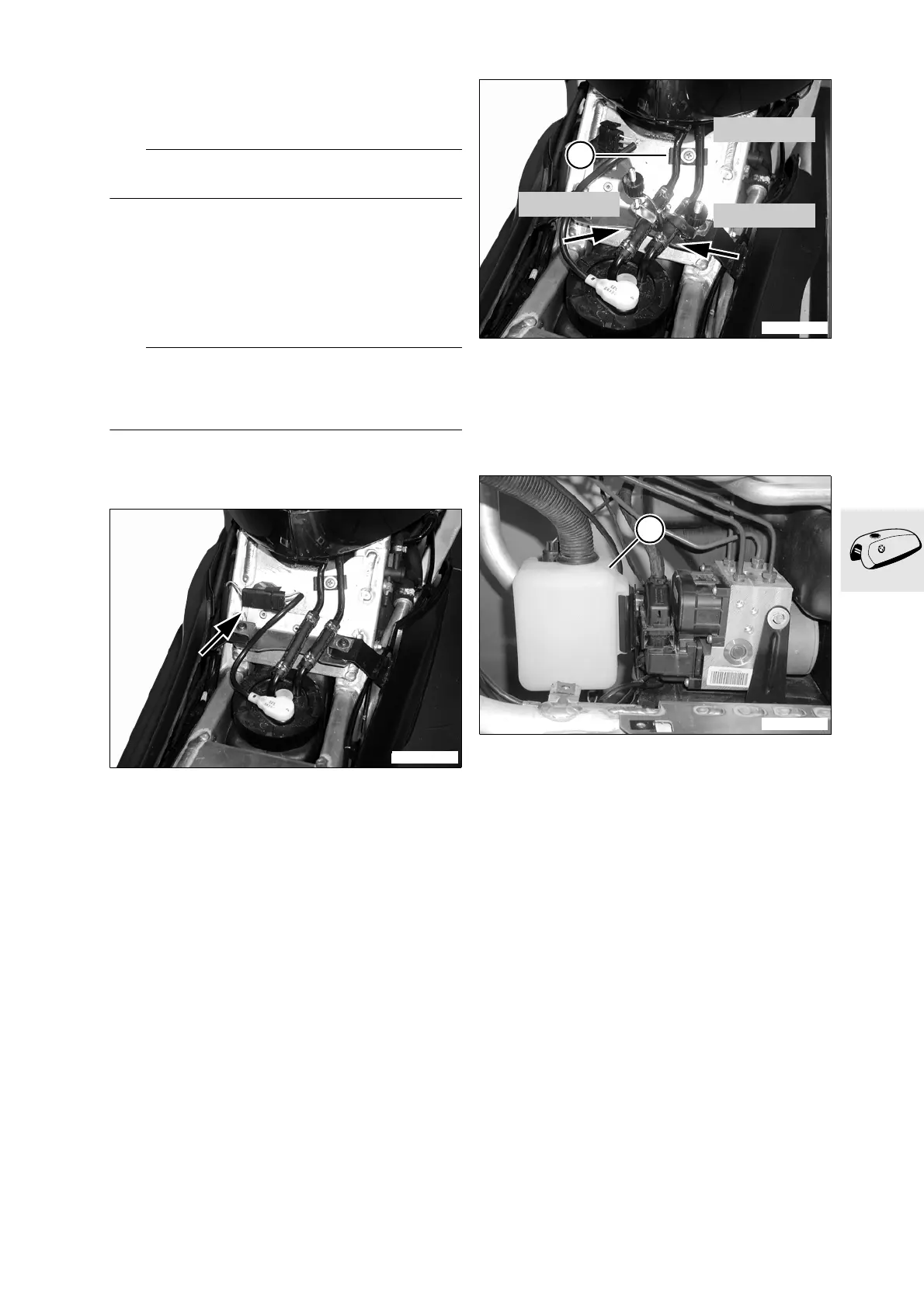

Disconnect the plugs for fuel pump and fuel-level
sensor (arrow)
•
Use hose clamps,
BMW No. 13 3 010
, to close
off fuel hoses (arrows)
•
Use pliers,
BMW No. 17 5 500,
to release hose
clamp
•
Pull fuel lines out of bracket (1)
•
Disconnect the fuel hoses
•
Remove washer fluid reservoir (1) from bracket
C1160001
13 3 010
C1160011
13 3 010
1
17 5 500
C1160021
1
