31.24
•

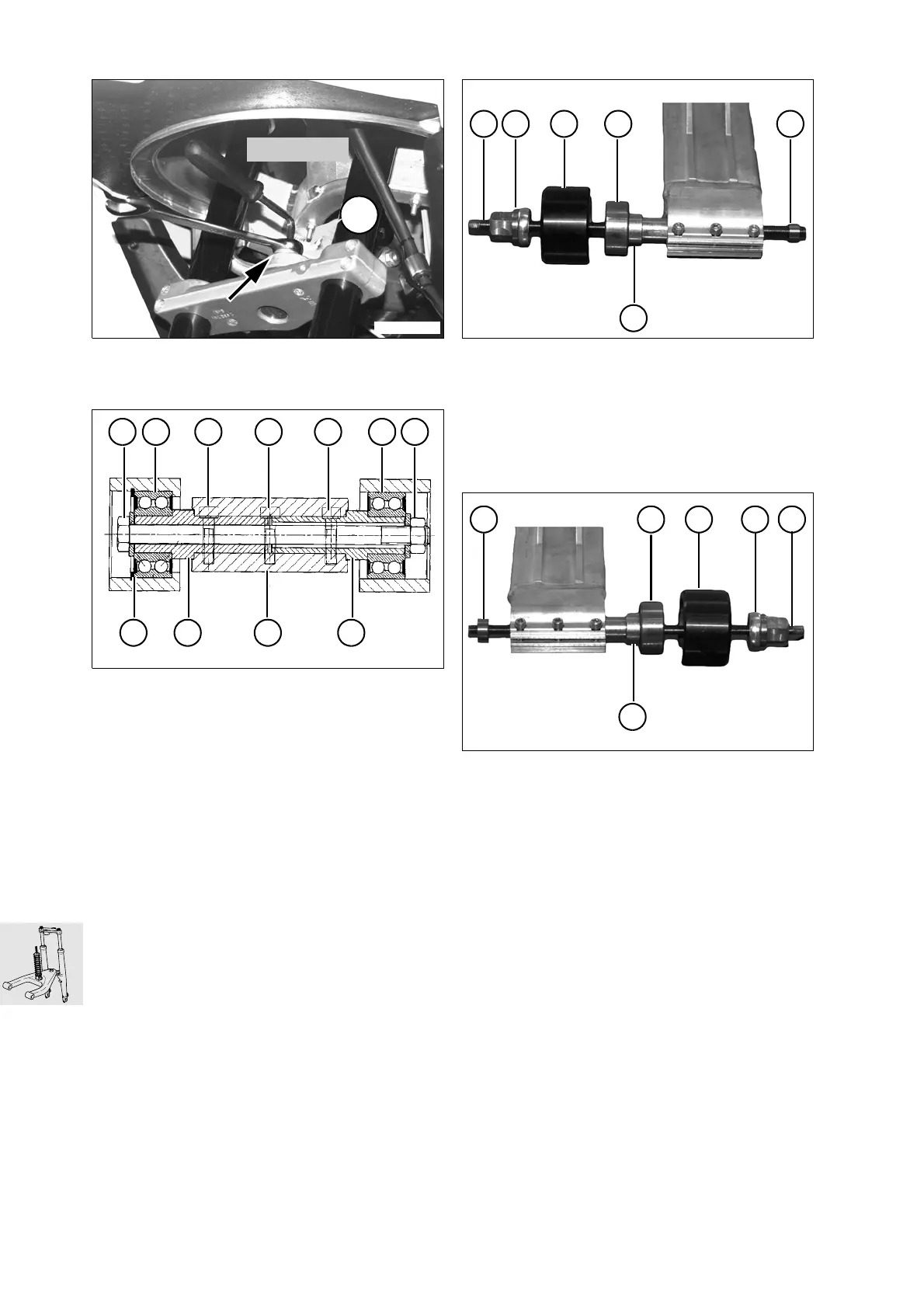

Detach the leading link from the telescoping tube
cross brace
•
Slacken fasteners (3-5) securing leading-link piv-
ot joints
•
Remove fasteners (1, 7) securing leading-link
pivot joints
•
Remove retaining ring (11)
•
Extract bearing with (2) leading link pivot
joint (10) on left with
threaded rod (A) M10,
BMW No. 31 5 701
,
nut (B) M10 with bearing,
BMW No. 31 5 702
,
puller support (C),
BMW No. 31 5 696
,
puller support (D),
BMW No. 31 5 703
•
Extract bearing (6) with leading link pivot joint (8)
on right with
threaded rod (D) M10,
BMW No. 31 5 701
,
nut (C) M10 with bearing,
BMW No. 31 5 702
,
puller support (B),
BMW No. 31 5 696
,
puller support (A),
BMW No. 31 5 704
,
•
Pull the leading link forward to remove
w
31 5 603
C1310040
11 9
32 4 651 7
10 8
C1310210
A B C D2
10
C1310220
A B C D6
8
C1310230
