Fuel gauge replacement
– Remove instrument cluster
•

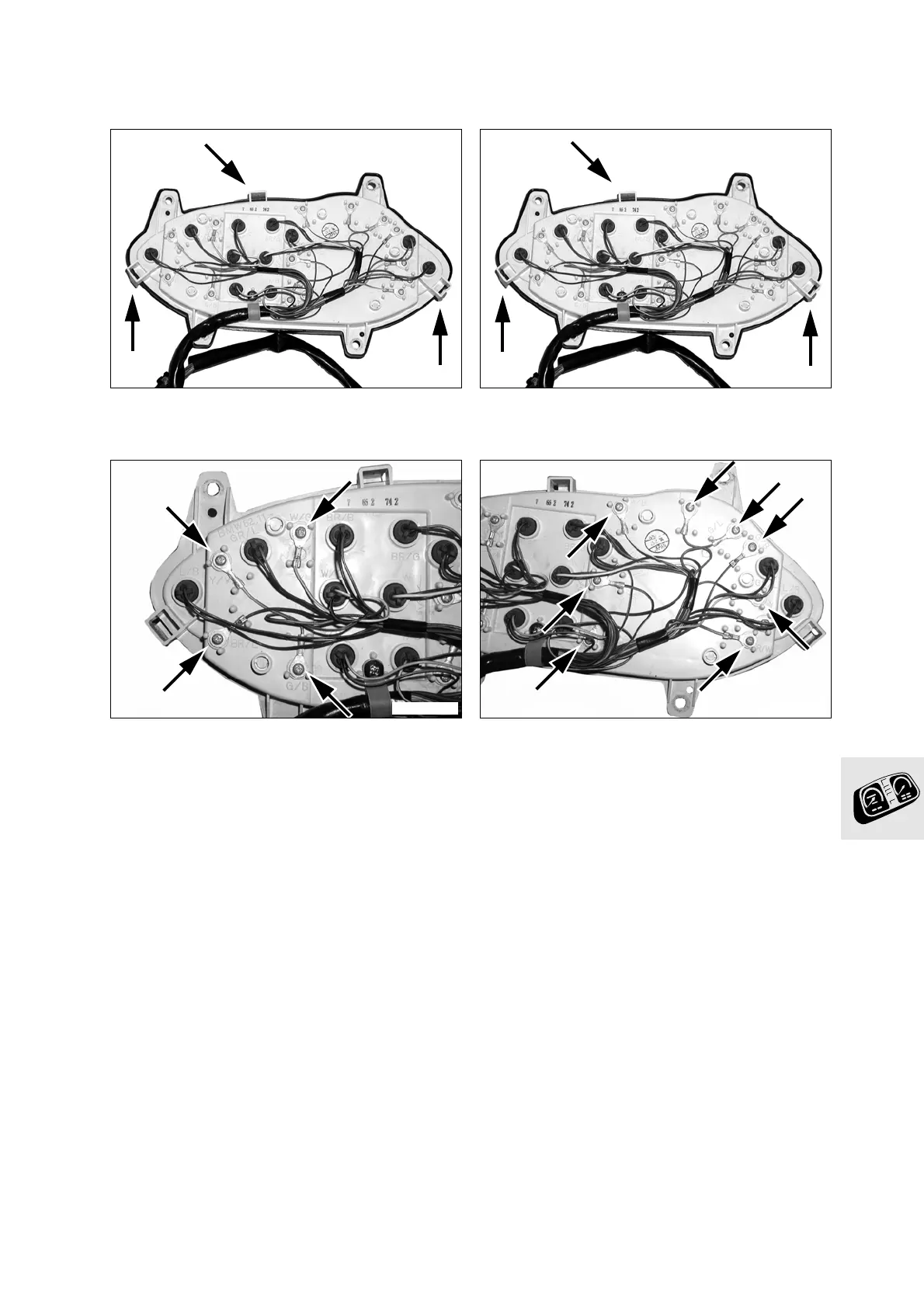

Unsnap front cover of instrument cluster from
attachment (arrows)
•
Detach wire terminal (arrows)
•
Remove fuel gauge
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Wire terminal ............................................... 0.5 Nm
Speedometer replacement
– Remove instrument cluster
•
Unsnap front cover of instrument cluster from
attachment (arrows)
•
Release wire terminal (arrows)
•
Remove speedometer
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Wire terminal ............................................... 0.5 Nm
