Operation | BAT 690 | 19 en
i The battery need not be disconnected from the
vehicle electrical system during charging.
i If the voltage of the 24V battery is less than 17V,
each of the two series-connected 12V batteries must
be charged separately. Below 17V, the BAT 690 only
detects a 12V battery and charging would therefore
also only be performed for a 12V battery.
1. Connect the BAT 690 to the mains voltage system via
the power supply cable.
2. Connect the red charging clip to the battery positive
terminal (+).
3. Connect the black charging clip to the battery
negative terminal (–).
4. Switch on the BAT 690 by way of the on/off switch
(fig.1, item1).
 The red LED (fig.1, item7) lights up.
 The battery voltage is displayed (for four seconds)
then the "Mode" menu appears.
i The "Mode" menu is displayed (only with battery
connected).
5. Select "Charging mode".
6. Press
.
 The "Battery type" menu is displayed.
7. Select battery type.
Lead-acid battery:
UNI = universal characteristic for lead acid batteries
WET = liquid electrolyte battery (H
2
SO
4
)
AGM = AGM batteries
GEL = gel battery (electrolyte as gel)
EFB = EFB batteries
Lithium-ion battery:
LFP = LiFePO
4
batteries with BMS
8. Press
.
 The "Capacity" menu is displayed.
9. Select the capacity of the connected battery with
or
.
10. Press
.
 The green LED flashes rapidly (fig. 1, item 8).
 Battery is charged after detection of its minimum
voltage.
Minimum voltage at 12V 24V
Lead-acid battery 3V 17V
Lithium-ion battery 9V 18V

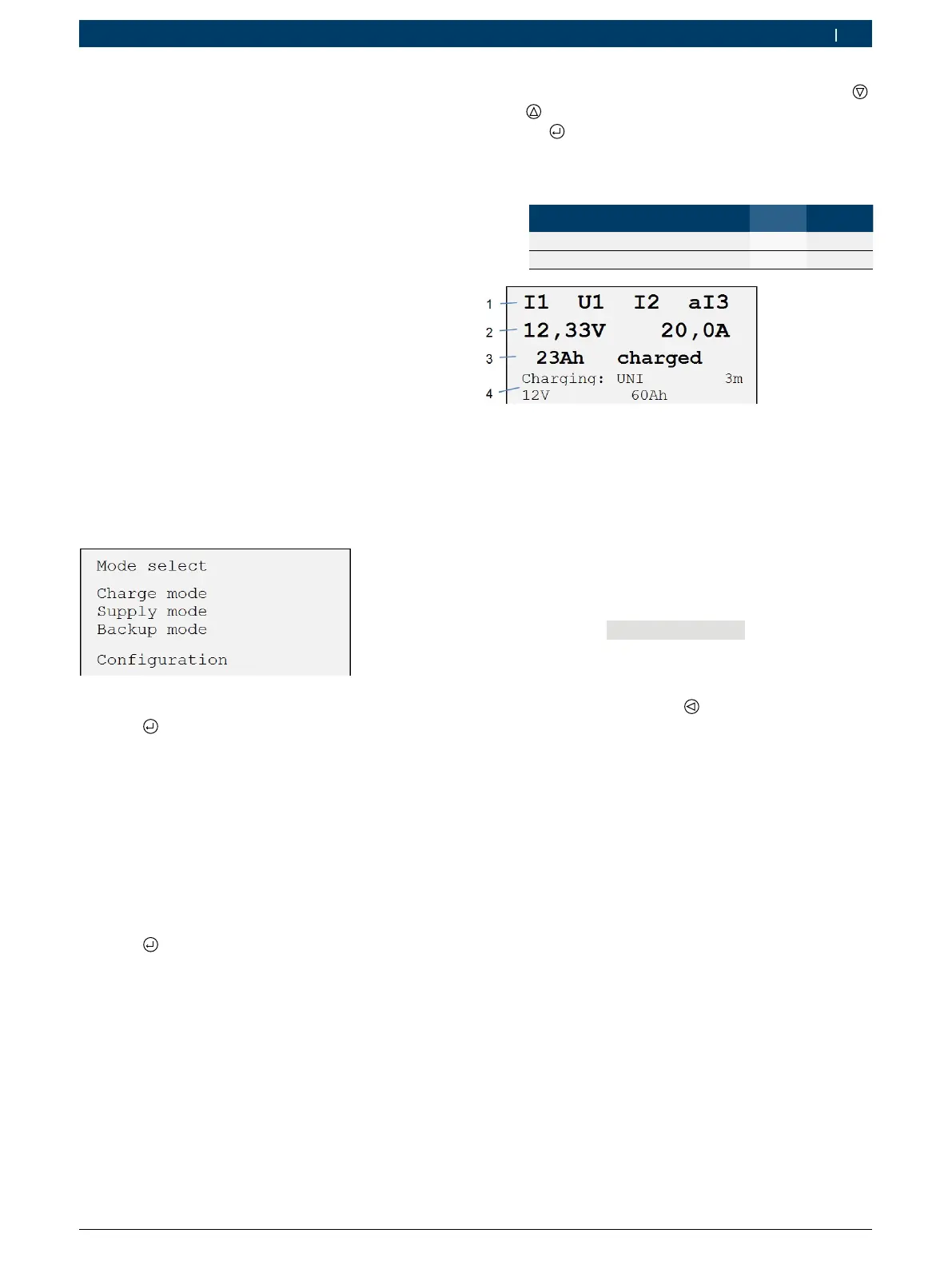

Fig. 5: Standard charging
1 Charging progress (see charging characteristic fig. 3)
2 Current battery charge
3 Charging current supplied so far
4 Information on mode, battery type, length of charging cable,
battery voltage and battery capacity
i For exhausted batteries, the BAT 690 initially
employs gentle charging. The charging current
level is governed by the battery capacity setting.
The message "
Gentle charging" appears on the
display and the green and yellow LED flash at 1
second intervals.
11. Charging is stopped with
or by disconnecting the
charging clips.
 The green LED is off.
 The "Mode" menu is displayed (only when the
battery is connected).
i If charging is interrupted, the process must be re-
started.
12. Switch off the BAT 690 on completion of charging.
13. Remove the charging clips from the battery.
i In the case of cyclical battery operation
(wheelchairs, sweepers, ...), at least every 3rd
charging process should take the form of full
charging to maintain the battery capacity as long as
possible.
