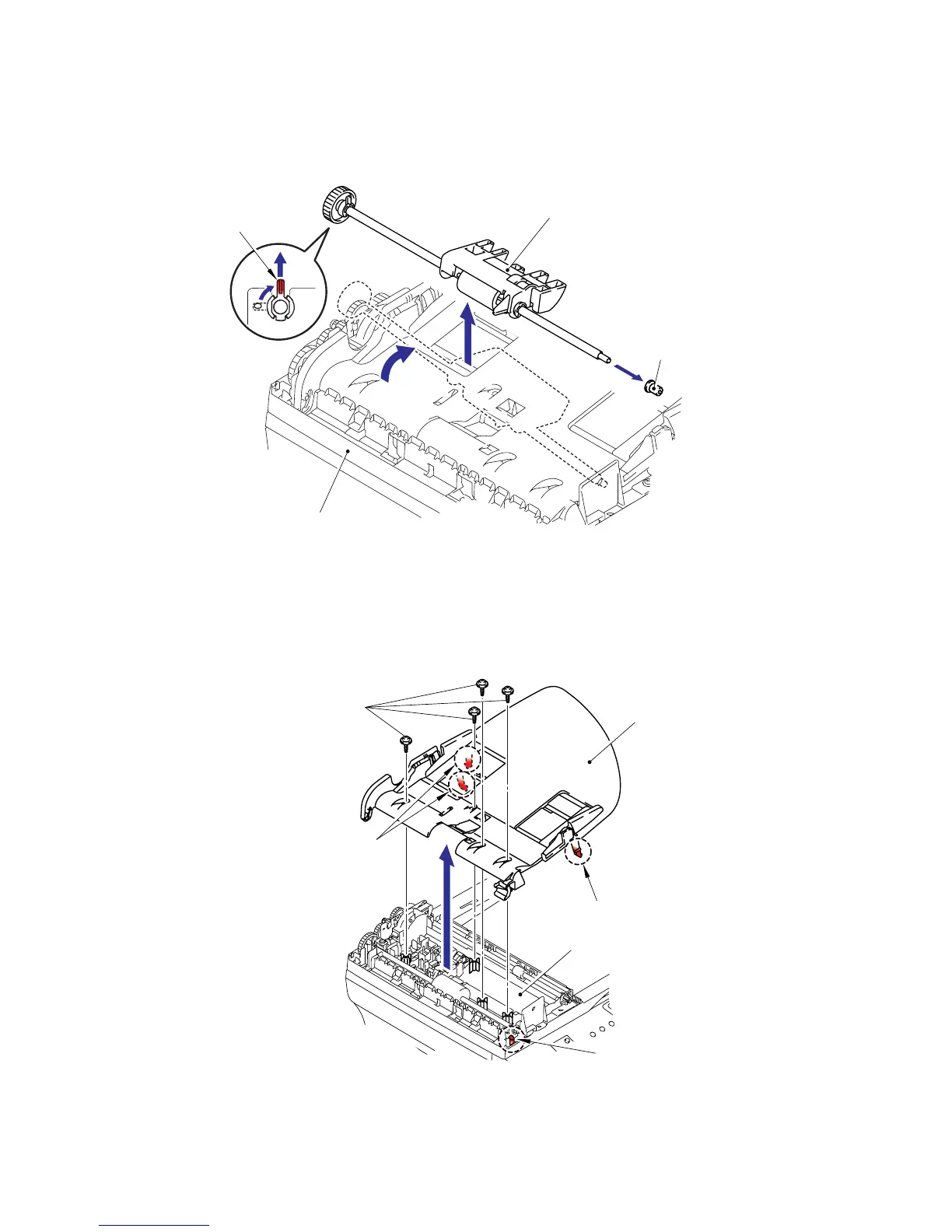

(10) Release the lock lever and then remove the separate roller shaft ASSY and separate roller
bushing from the ADF unit.
Fig. 5-18
(11) Remove the four cup B M3x10 taptite screws.
(12) Release the hook “A” to remove the upper document chute.
Fig. 5-19
Separa
t
e roller shaft ASS
Y
A
DF unit
Taptite, cup B M3
x
10
Hook
Hooks
Upper document chute
Hook “
A
”
A
DF unit
Separate roller bushing
Lock leve
r
