5-18

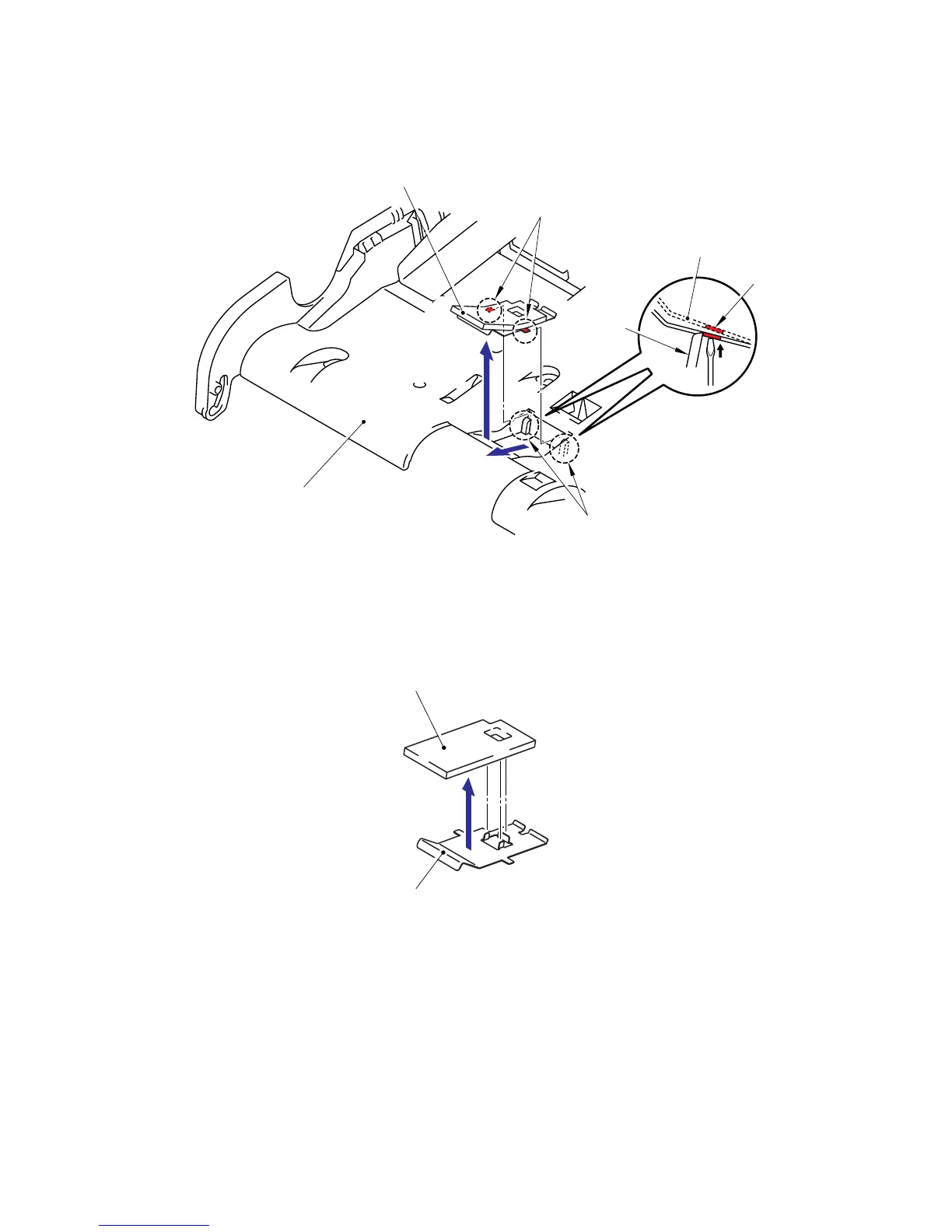

(13) Remove the separation rubber ASSY from the upper document chute.
Fig. 5-20
(14) Remove the separation rubber from the ADF plate spring.
Fig. 5-21
Separation rubber ASS
Y
“
A
”
“
A
”
Upper document chute
Hook
Hooks
A
DF plate spring
1
2
3
Separation rubbe
r
A
DF plate spring
