(15) Remove the one cup S M3x6 taptite screw to remove the ADF FG harness.
(16) Remove the ADF motor harness from the ADF motor.
(17) Remove the ADF sensor harness ASSY from the ADF sensor PCB ASSY.

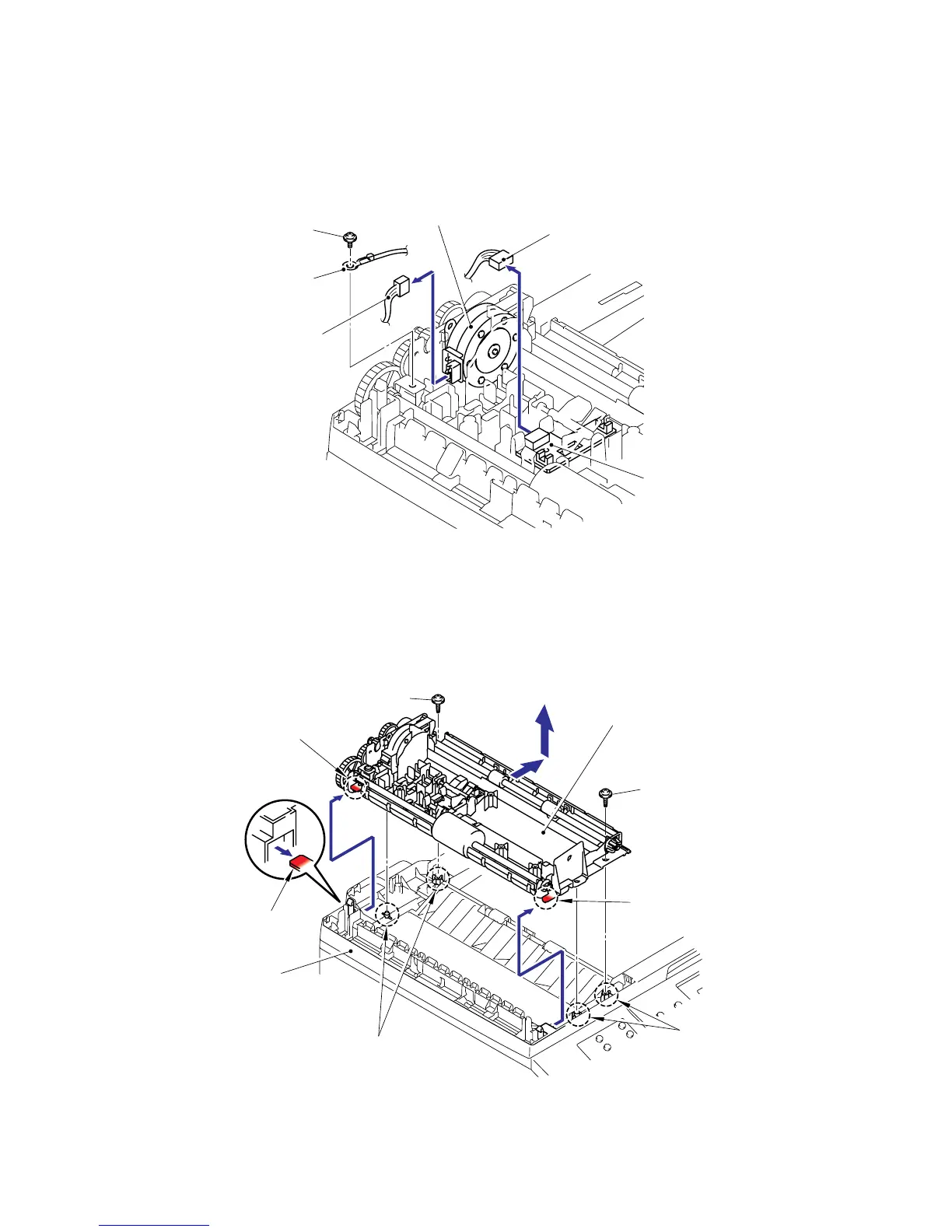

Fig. 5-22
(18) Remove the two cup B M3x10 taptite screws from the lower document chute.
(19) Release the two hooks to remove the lower document chute.
NOTE: When re-connecting the connectors, put them through the holes on the ADF unit
before connecting
.
Fig. 5-23
Taptite, cup B M3
x
10
Taptite, cup B M3
x
10
Lower document chute
Hook
Hook
1
2
Ribs
Hook
A
DF unit
Ribs
Taptite, cup B M3
x
10
A
DF FG harness
A
DF motor harness
A
DF moto
r
A
DF sensor harness ASS
Y
A
DF sensor PCB ASS
Y
