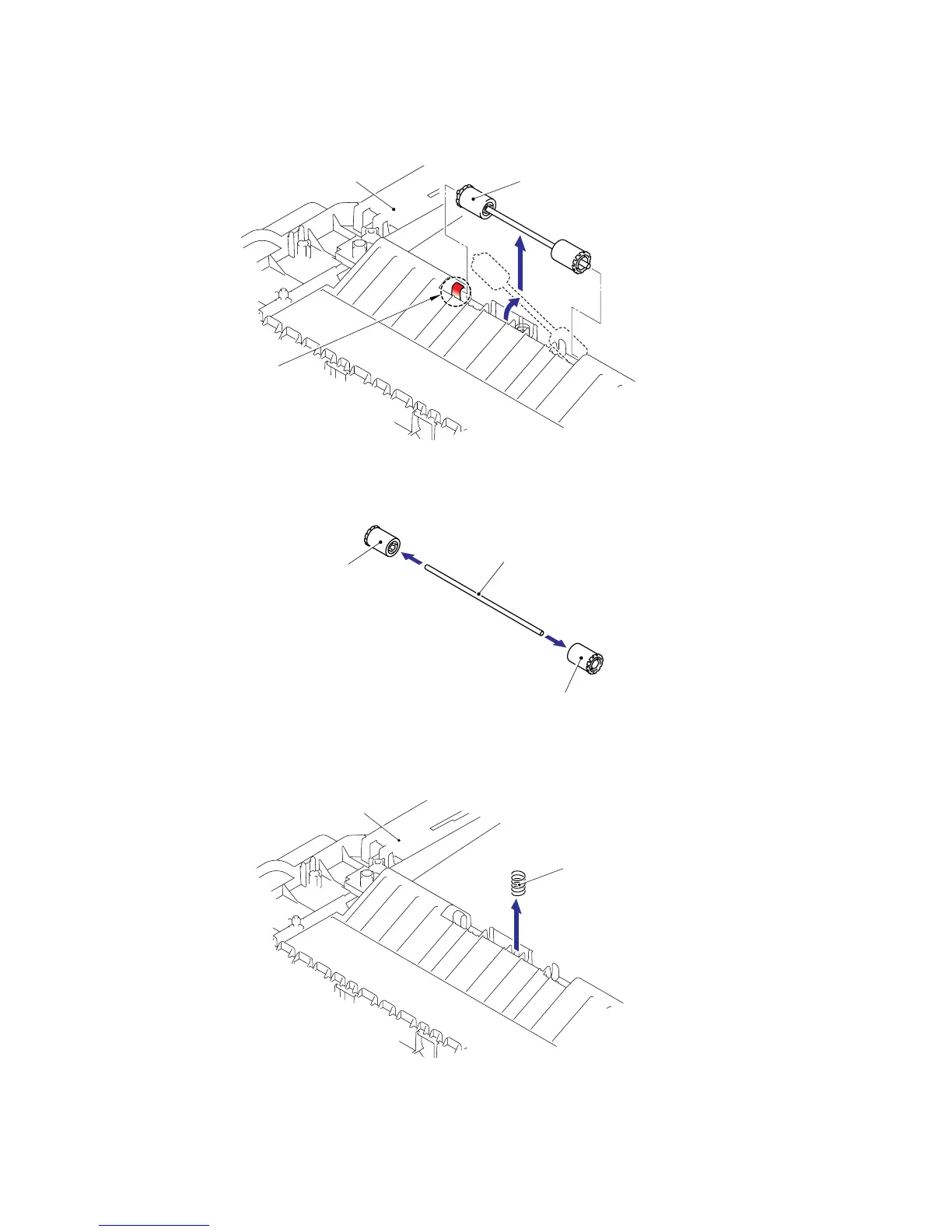

(20) Release the hook on the ADF unit and remove the ejection roller ASSY.
Fig. 5-24
(21) Remove the two ejection rollers from the pressure roller shaft.
Fig. 5-25
(22) Remove the ADF unit ejection spring from the ADF unit.
Fig. 5-26
Pressure roller shaft
Ejection roller
Ejection roller
Ejection roller ASS
Y
A
DF unit
Hook
A
DF unit ejection spring
A
DF unit
