5-23

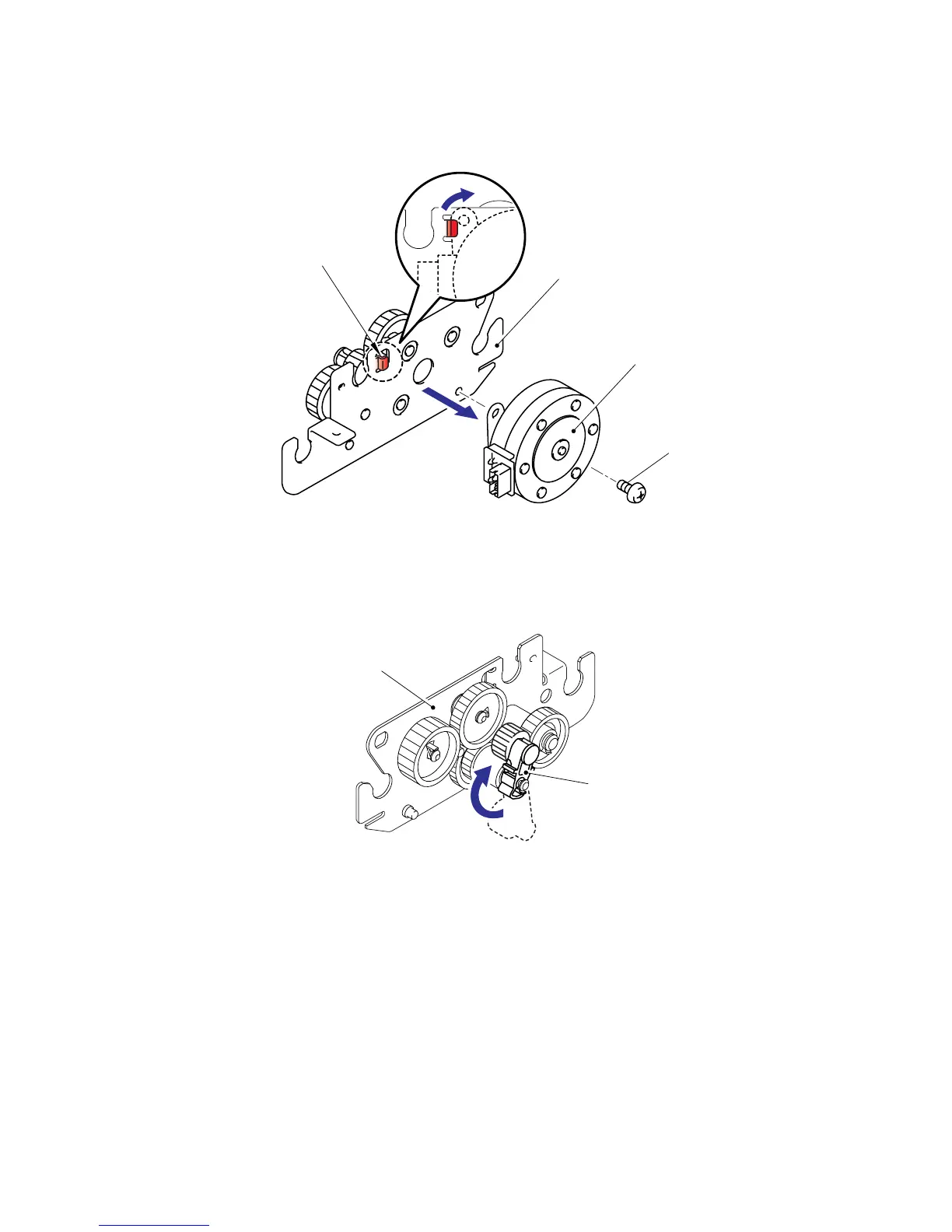

(28) Remove the one bind S M3x6 taptite screw from the drive frame ASSY to remove the ADF
motor.
Fig. 5-31
NOTE: When re-assembling drive frame ASSY, assemble it so that the arm ASSY is at the
top.
Fig. 5-32
A
DF moto
r
Taptite, bind S M3x6
Hook
1
2
Drive frame ASS
Y
A
rm ASS
Y
Drive frame ASS
Y
