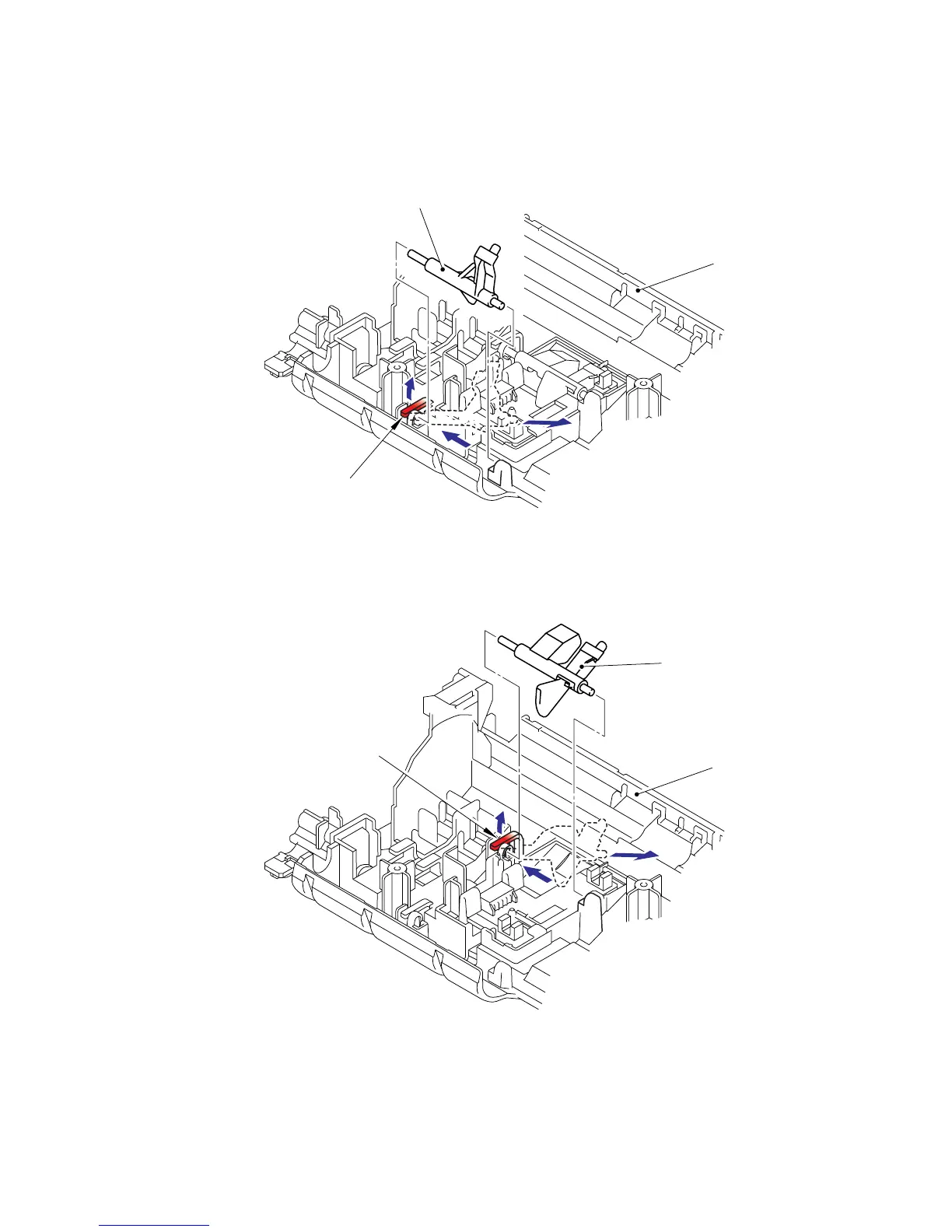

(29) Remove the document rear actuator from the lower document chute.
Fig. 5-33
(30) Remove the document front actuator from the lower document chute.
Fig. 5-34
Document rear actuator
Hook
Lower document chute
1
23
Hook
Document front actuato
r
Lower document chute
1
2
3
