6-11 Confidential

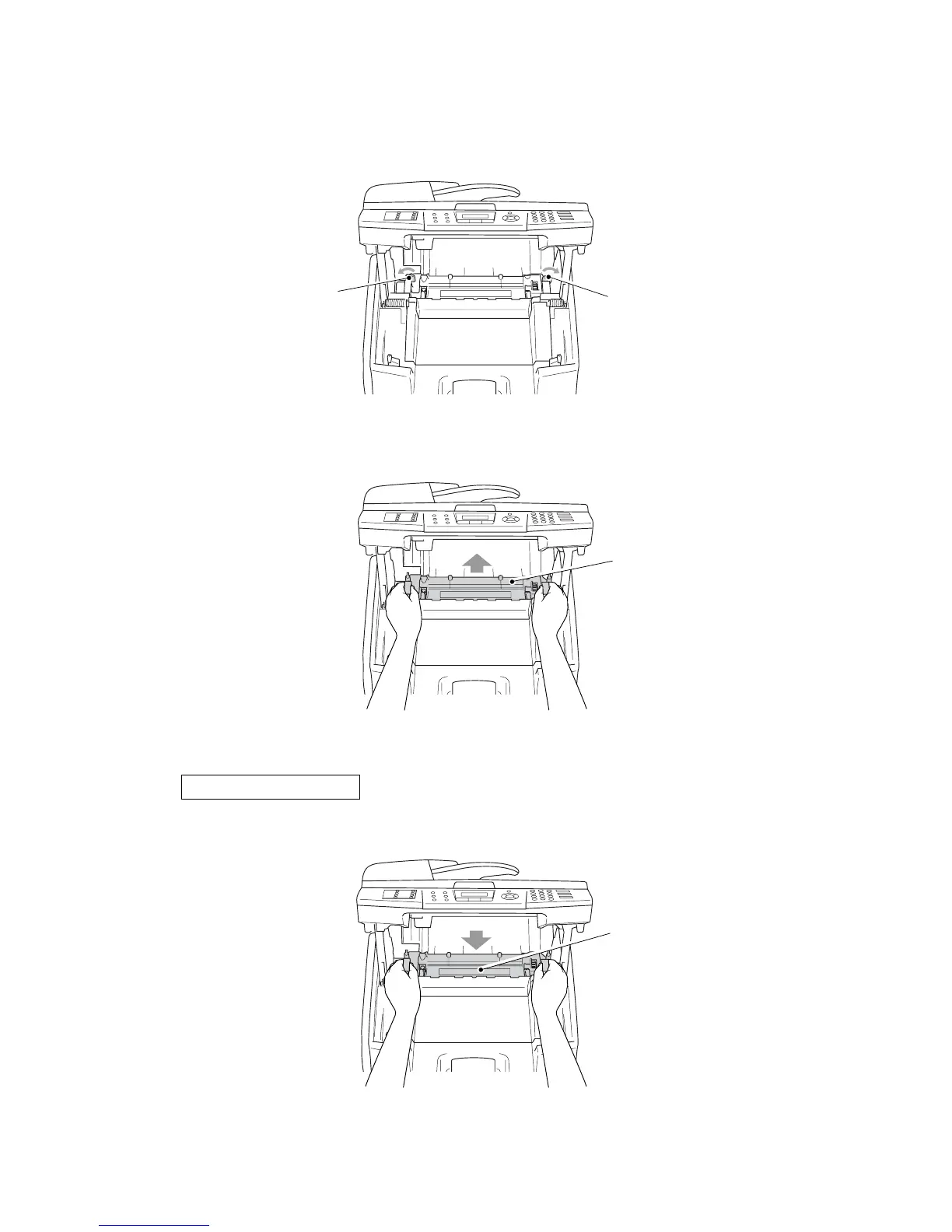

(3) To release the fusing unit from the machine, release the lock levers that are on both sides of
the fusing unit.
Fig. 6-10
(4) Hold the handles on both sides as you take the fusing unit out of the machine.
Fig. 6-11
Sequence of Assembling
(1) Put the new fusing unit into the machine. Be sure to insert the fusing unit completely into
the machine.
Fig. 6-12
Lock lever
Lock lever
Fusing unit
Fusing unit
