COPYRIGHT
©
1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-29
CHAPTER 3 ORIGINAL EXPOSURE SYSTEM

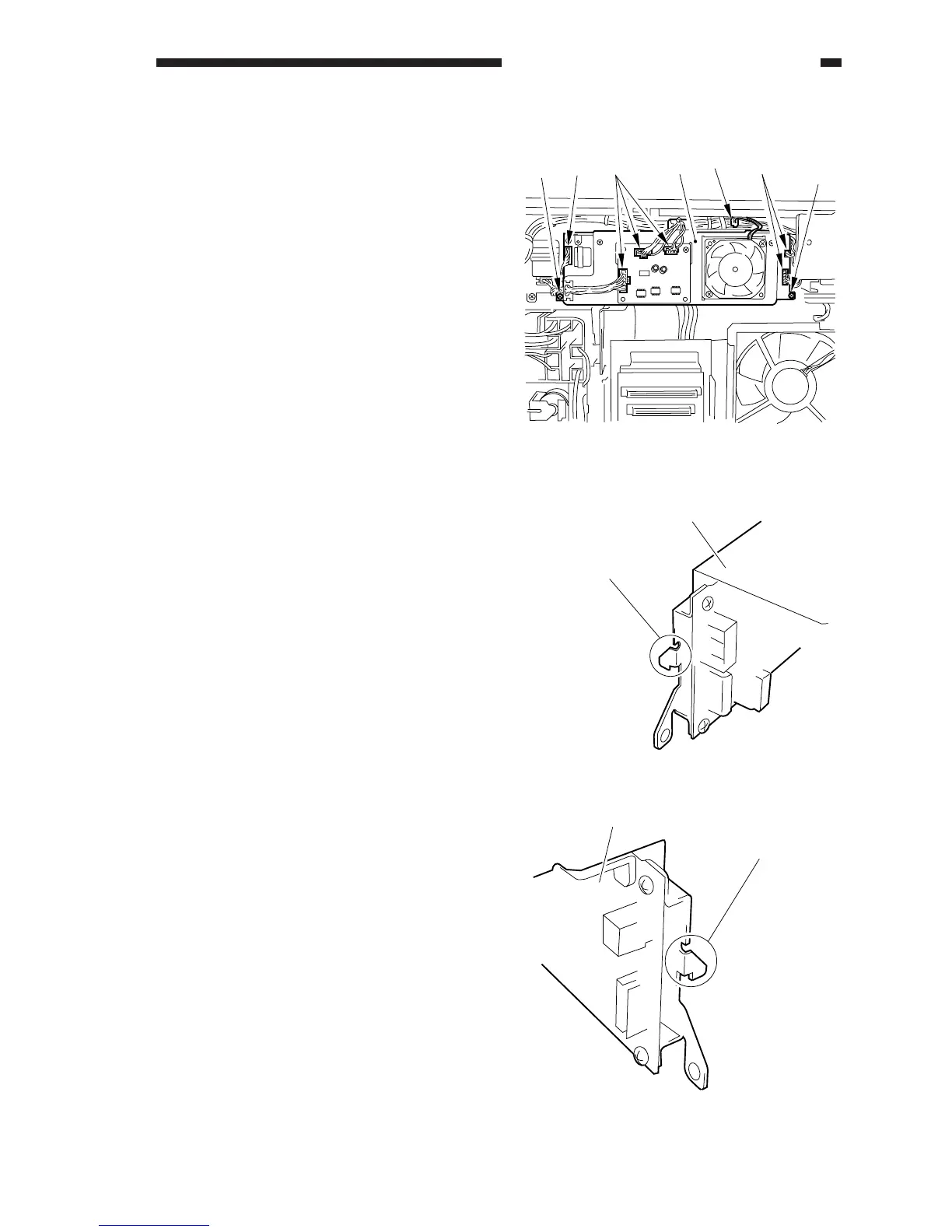

Figure 3-C503
Figure 3-C504
[1]
[2]
[2]
[3]
[2]
[2]
[1]
Hook (left)
Inverter unit
Hook (right)
Inverter unit
2. Removing the Inverter PCB
1) Remove the rear cover.
2) Remove the two screws [1], and discon-
nect the seven connectors [2]. While re-
moving the hook of the mounting plate
upward, remove the inverter control as-
sembly [3].
To Next Page
