CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-10
COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3. Detecting the Presence/Absence of Paper
The presence/absent of paper inside the deck and the cassette is detected by the cassette paper
sensor.

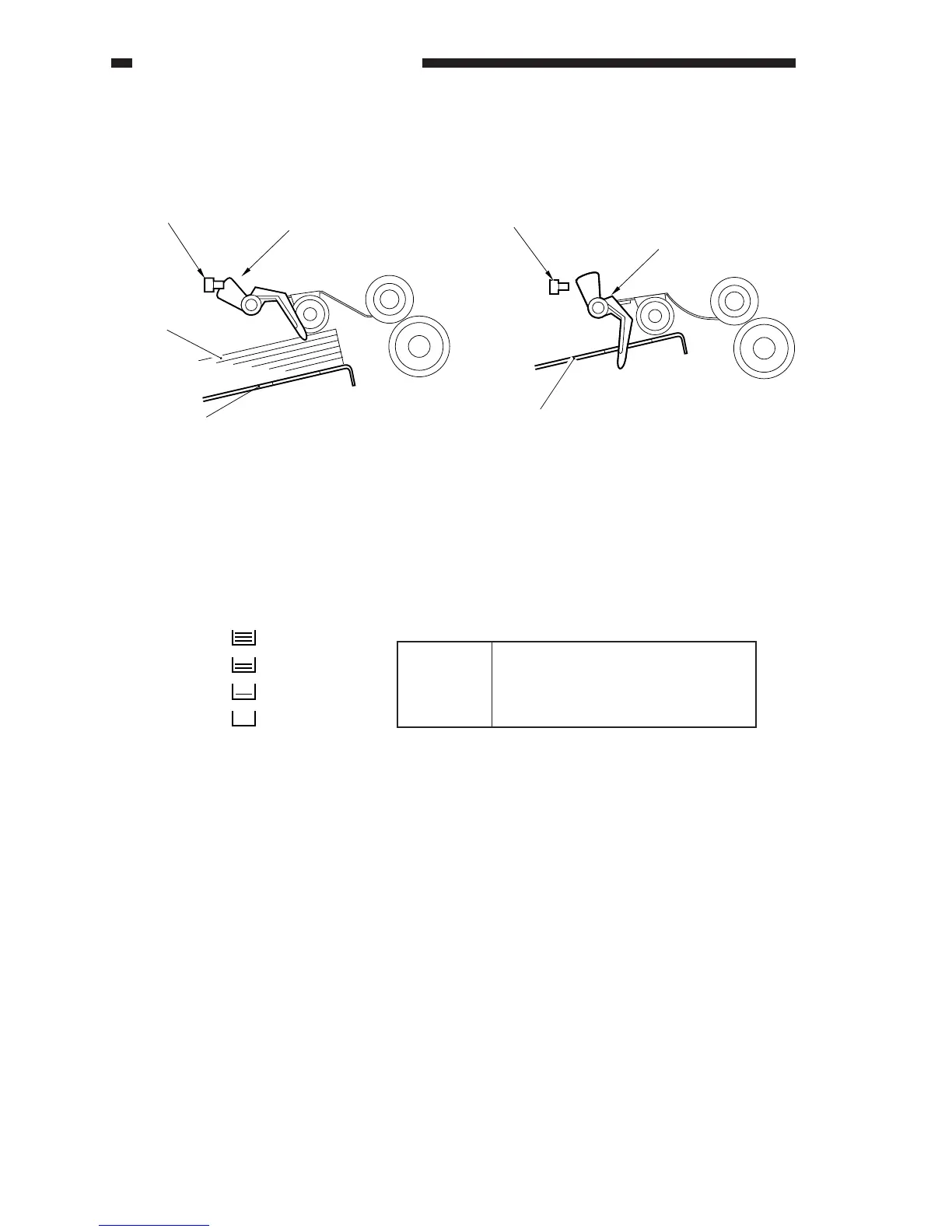

Figure 7-208 Paper Present Figure 7-209 Paper Absent
4. Detecting the Level of Paper
a. Outline
The copier indicates the level of paper inside the deck and the cassette in four readings (includ-
ing No Paper) on the control panel.
Figure 7-210 Table 7-203
Paper sensor
Paper detecting lever
Copy paper
Lifter
Paper sensor
Paper detecting lever
Lifter
100% to about 50% of capacity
about 50% to about 10% of capacity
about 10% of capacity or less
No paper
3 bars
2 bars
1 bar
No bar
