COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
7-5
CHAPTER 7 PICK-UP/FEEDING SYSTEM
2. Pickup from the Cassette 4
• A4, 2 Sheets, Continuous
The copier's cassette pickup assembly uses separation rollers.
Volume 1>Chapter 5 "Separation Mechanism and Pickup Method"

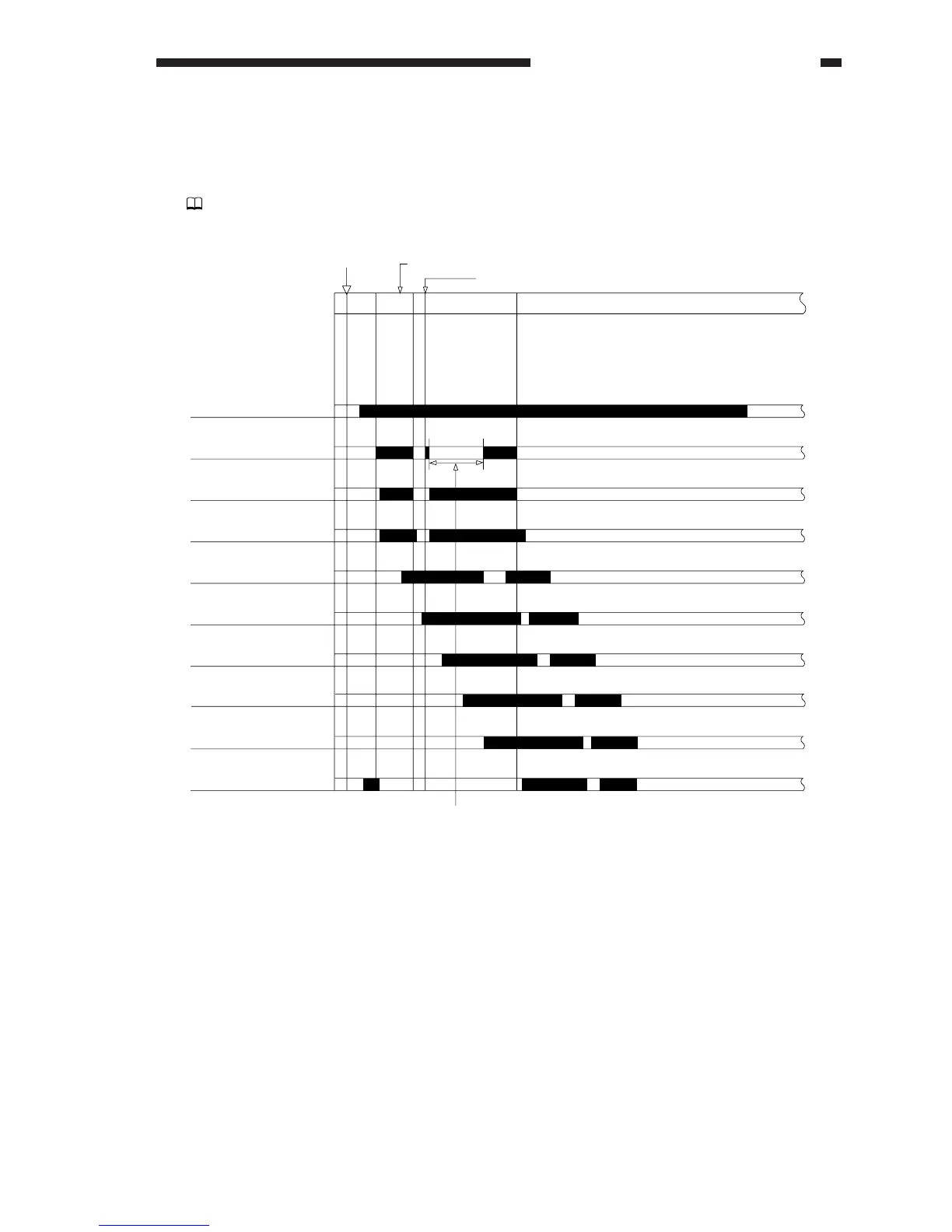

Figure 7-203 Pickup from the Cassette 4
Cassette 4 pickup
clutch (CL14)
Pickup motor (M2)
Cassette 4 pickup
solenoid (SL10)
Cassette 4 pickup
paper sensor (PS42)
Vertical path roller 4
sensor (PS46)
Registration roller
paper sensor (PS5)
Registration roller
clutch (CL2)
Vertical path roller 3
paper sensor (PS41)
Vertical path roller 2
paper sensor (PS49)
Vertical path roller 1
paper sensor (PS47)
Copy Start key ON
or print command received
1st sheet picked up
Stopped temporarily to create a sheet-to-sheet distance
2nd sheet picked up
