CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-80
COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[4]
[3]
[5]
[2]
[2]
[1]
[1]
[3] [3]

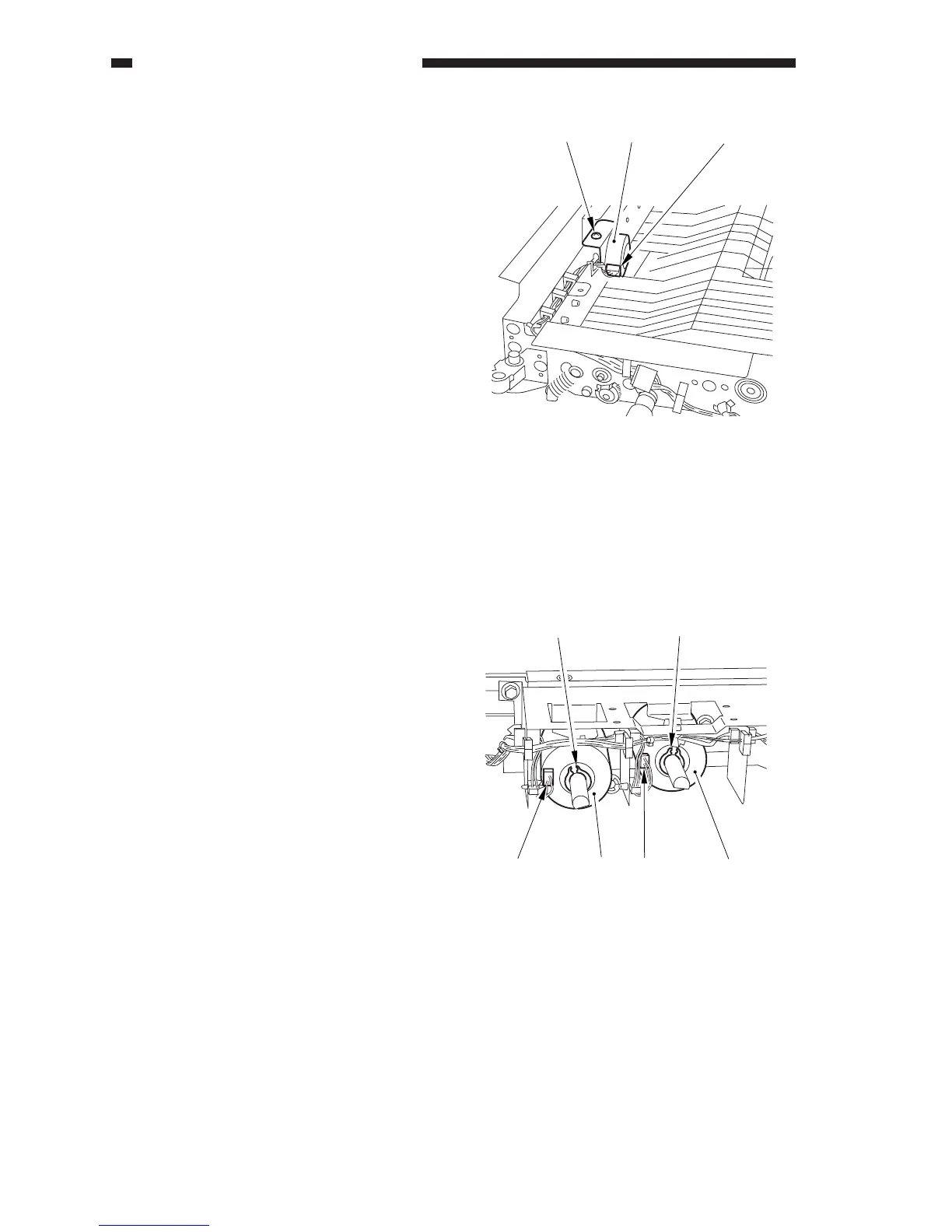

Figure 7-F808
Figure 7-F809
3) Disconnect the connector [3], and remove
the screw [4]; then, detach the horizontal
registration motor [5].
7. Removing the Deck (left) Draw-
Out Clutch/Lower Feeder Middle
Clutch
1) Remove the duplexing unit from the
copier.
2) Remove the front cover.
3) Disconnect the connector [1], and remove
the grip ring [2]; the, detach each clutch
[3].
