COPYRIGHT
©
1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
7-45
CHAPTER 7 PICK-UP/FEEDING SYSTEM
[6]
[7]
[8]
[4] [5]
[3]
[3]

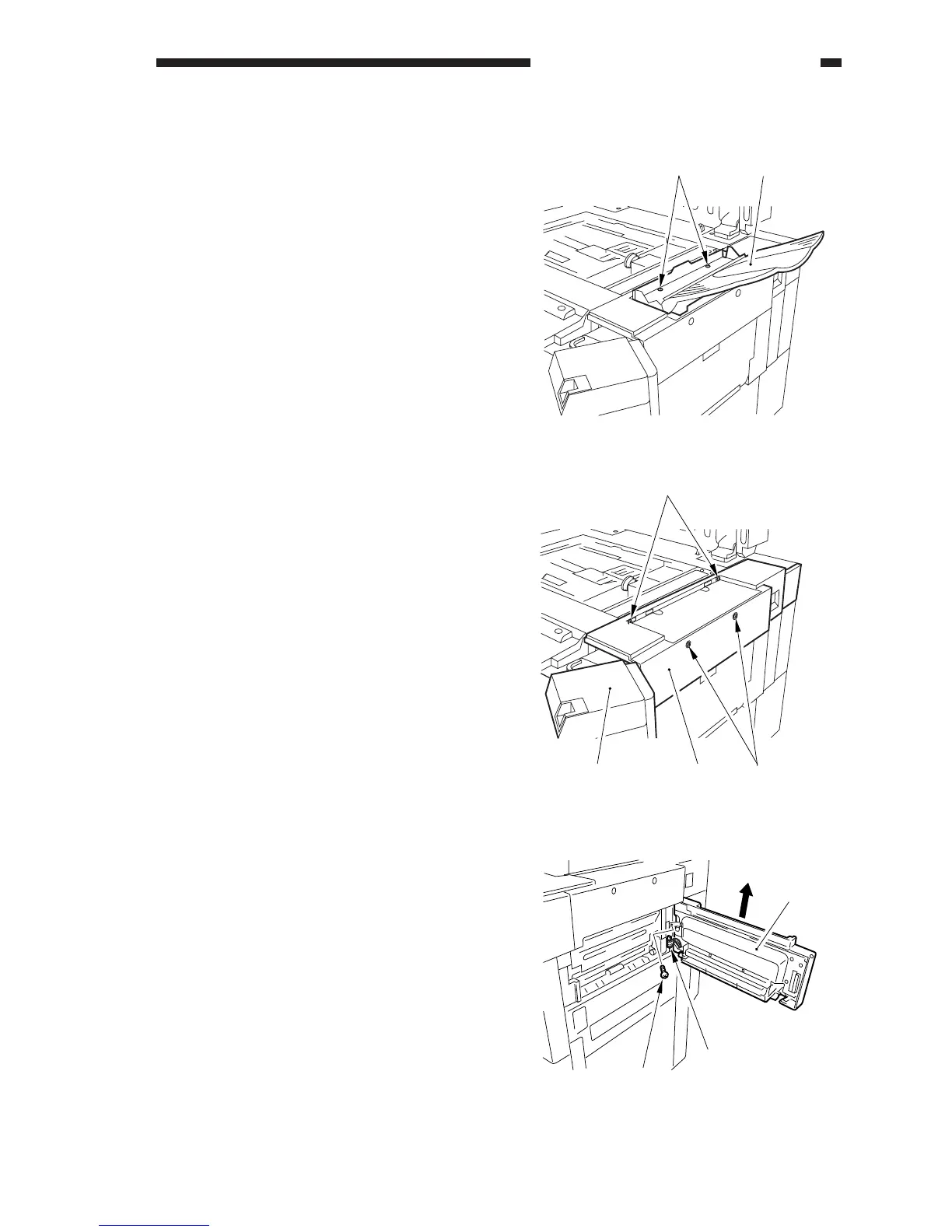

Figure 7-A803
Figure 7-A801
Figure 7-A802
A. Manual Tray Assembly
1. Removing the Manual Tray Unit
1) Remove the two screws [1], and detach
the delivery tray unit [2].
2) Remove the four screws [3], and detach
the upper right cover [5] while the toner
cartridge cover [4] is open.
3) Remove the screw [6], and disconnect the
connector [7]; then, detach the manual
feed tray unit [8].
[1] [2]
To Next Page
