CHAPTER 13 TROUBLESHOOTING
13-28
COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

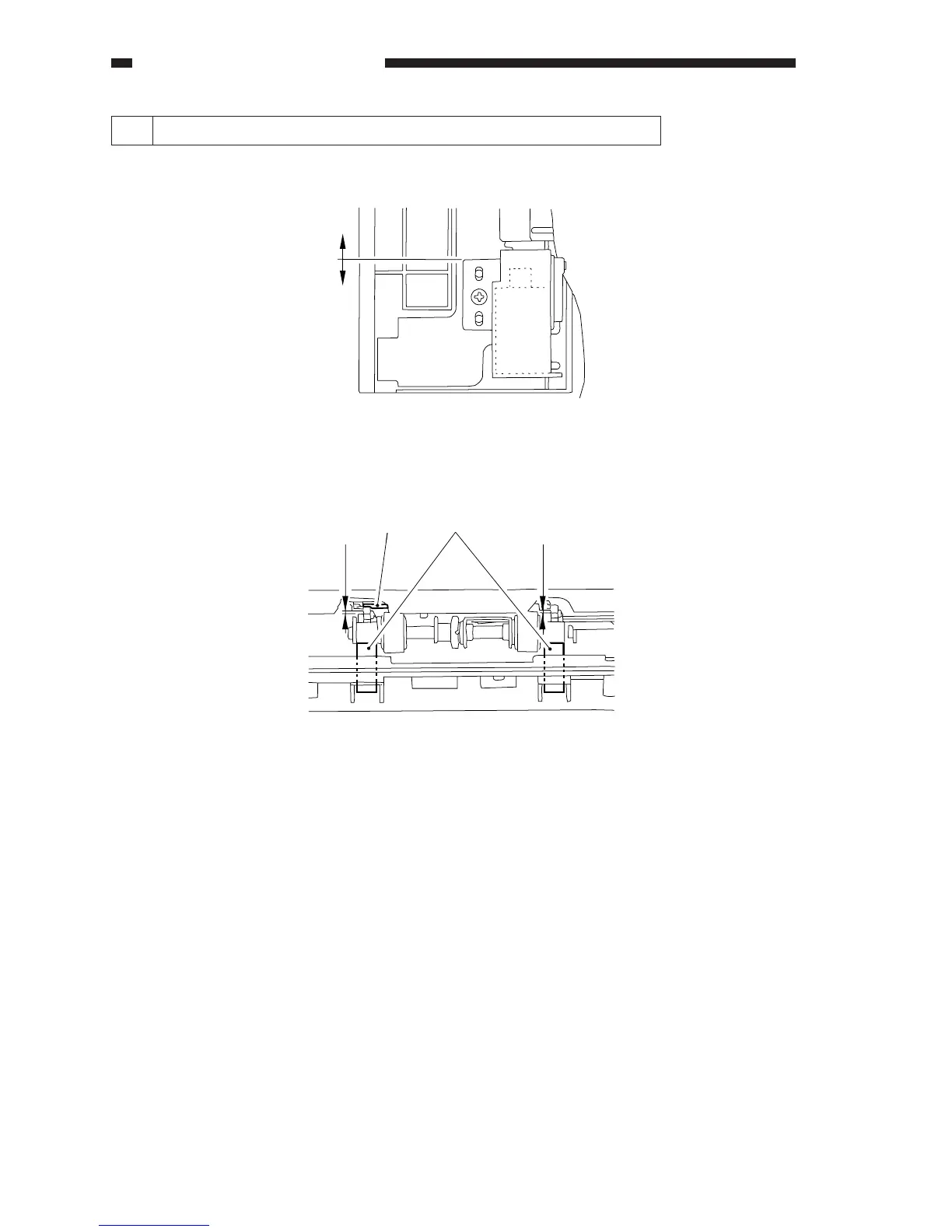

9.5 Position of the Multifeeder Pickup Latching Solenoid (SL6)
A
[1]
[2]
0.4±0.2mm 0.4±0.2mm
Slide the solenoid into the direction of A to adjust so that the gap between the shutter [1] and
the shutter plate [2] is 0.4 ±0.2 mm when the solenoid is pulled.
Figure 13-D214b
Figure 13-D214a
