CHAPTER 4 IMAGE PROCESSING SYSTEM

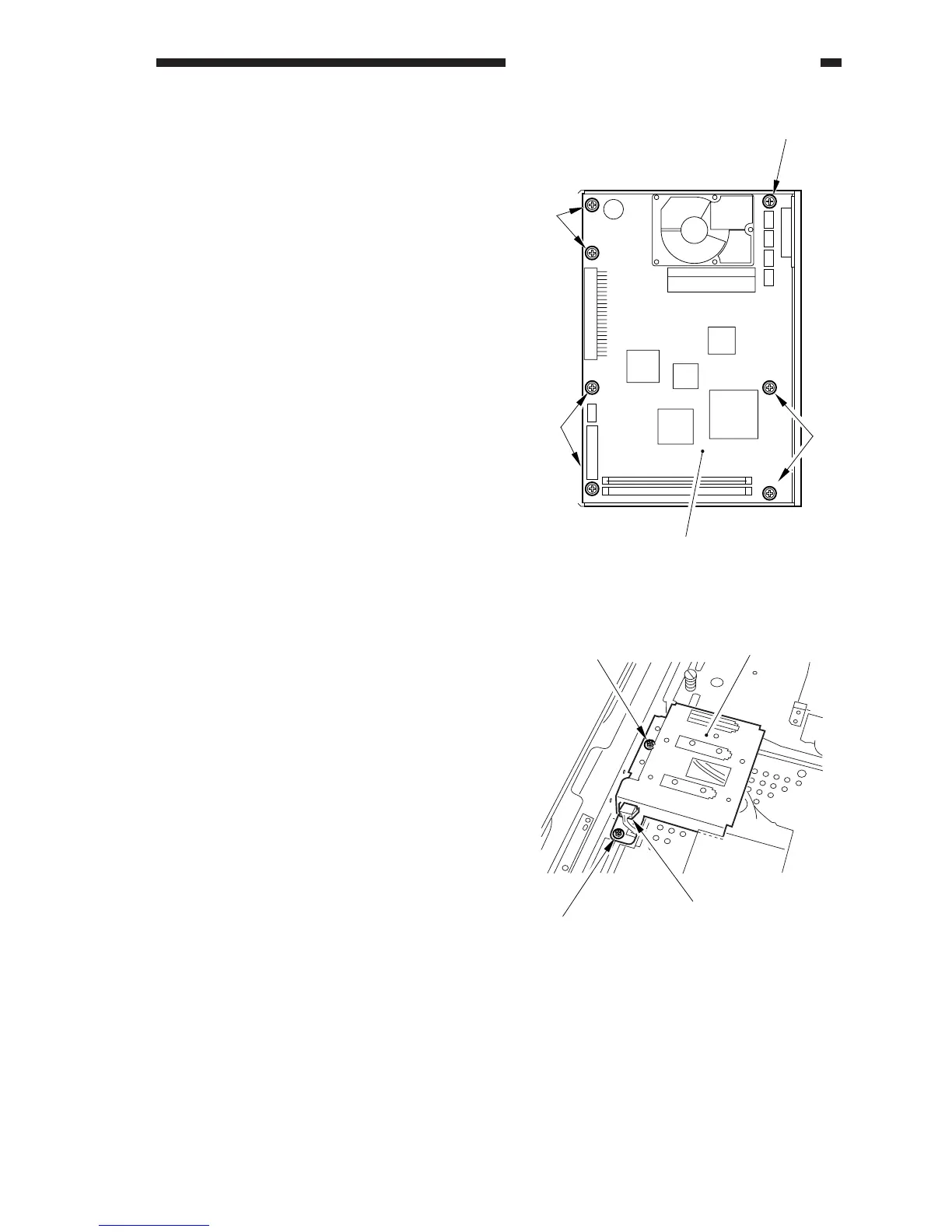

Figure 4-D405
[4]
[4]
[4]
[4]
[5]
Figure 4-D406
[1]
[3]
[1]
[2]
3) Remove the seven screws [4], and detach
the printer board [5].
4. Removing the Original Detection
PCB
1) Remove the copyboard glass.
2) Move the No. 1 mirror mount to the left
end.
3) Remove the two screws [1], and discon-
nect the connector [2]; then, detach the
original sensor unit (rear) [3].
