COPYRIGHT
©
1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
9-61
CHAPTER 9 EXTERNALS/AUXILIARY MECHANISMS

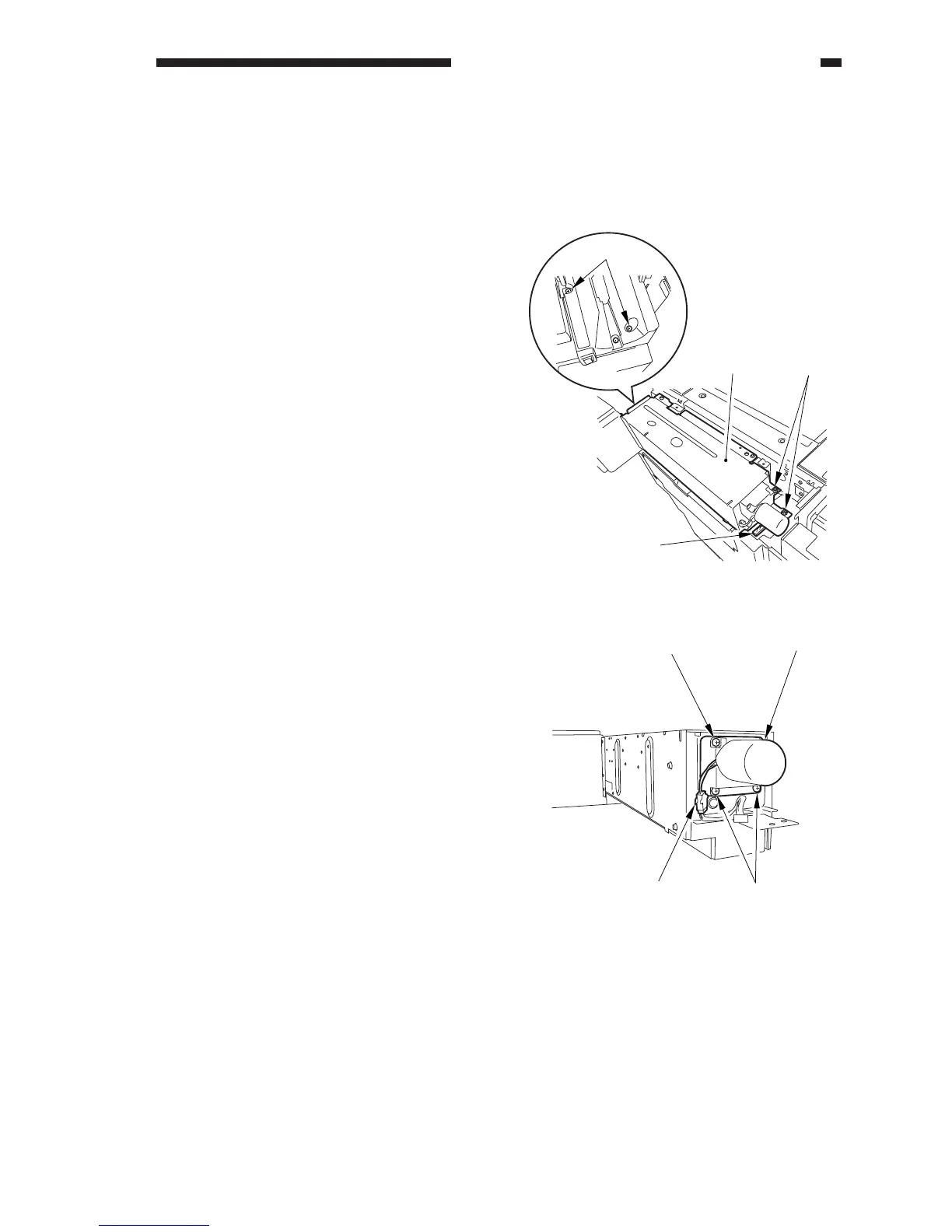

Figure 9-D719
Figure 9-D720
[1]
[3] [1]
[2]
12. Removing the Toner Cartridge
Drive Assembly
1) Remove the upper right cover.
2) Open the toner cartridge cover, and slide
out the toner cartridge.
3) Remove the four screws [1], and discon-
nect the connector [2]; then, detach the
toner cartridge drive assembly [3].
4) Remove the three screws [4], and discon-
nect the connector [5]; then, detach the
toner cartrdige drive motor [6].
[4]
[5]
[4]
[6]
To Next Page
