COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
7-79
CHAPTER 7 PICK-UP/FEEDING SYSTEM
[4]
[4]
[5]
[2]
[2]
[1]
[3]
[1]
[2]

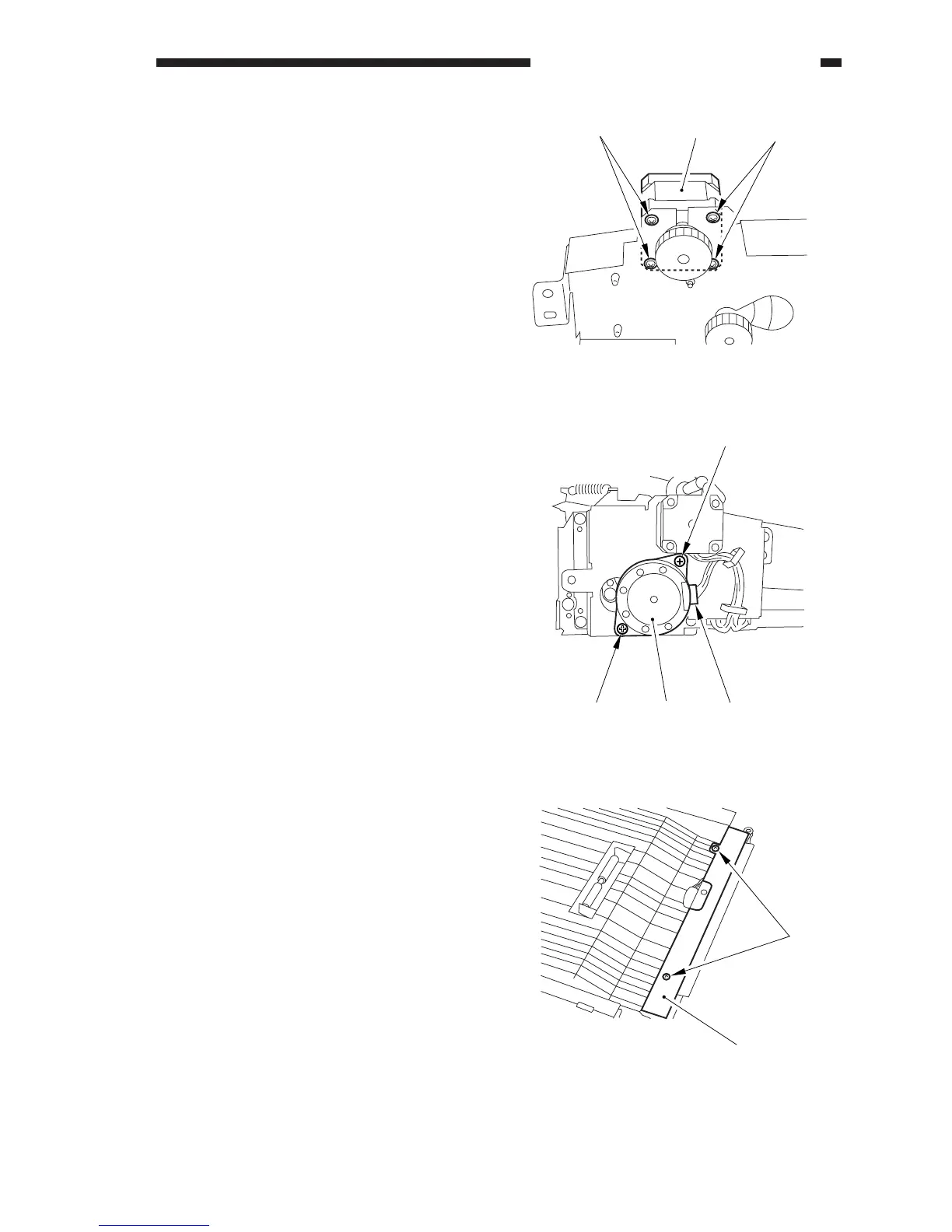

Figure 7-F805
3) Remove the four screws [4], and detach
the reversal motor [5].
5. Removing the Lower Feeder
Motor
1) Remove the front cover of the duplexing
unit.
2) Disconnect the connector [1], and remove
the two screws [2]; then, detach the lower
feeder motor [3].
6. Removing the Horizontal
Registration Motor
1) Remove the duplexing unit from the
copier.
2) Remove the two screws [1], and detach
the upper cover [2].
Figure 7-F806
Figure 7-F807
