E. Controlling the Thermistor Reciprocating Mechanism
Volume 2>Chapter 6>IV.5. "Controlling the Reciprocating Mechanism of the Thermistor"
Figure 8-205 shows the control system used to control the reciprocating mechanism of the
thermistor.

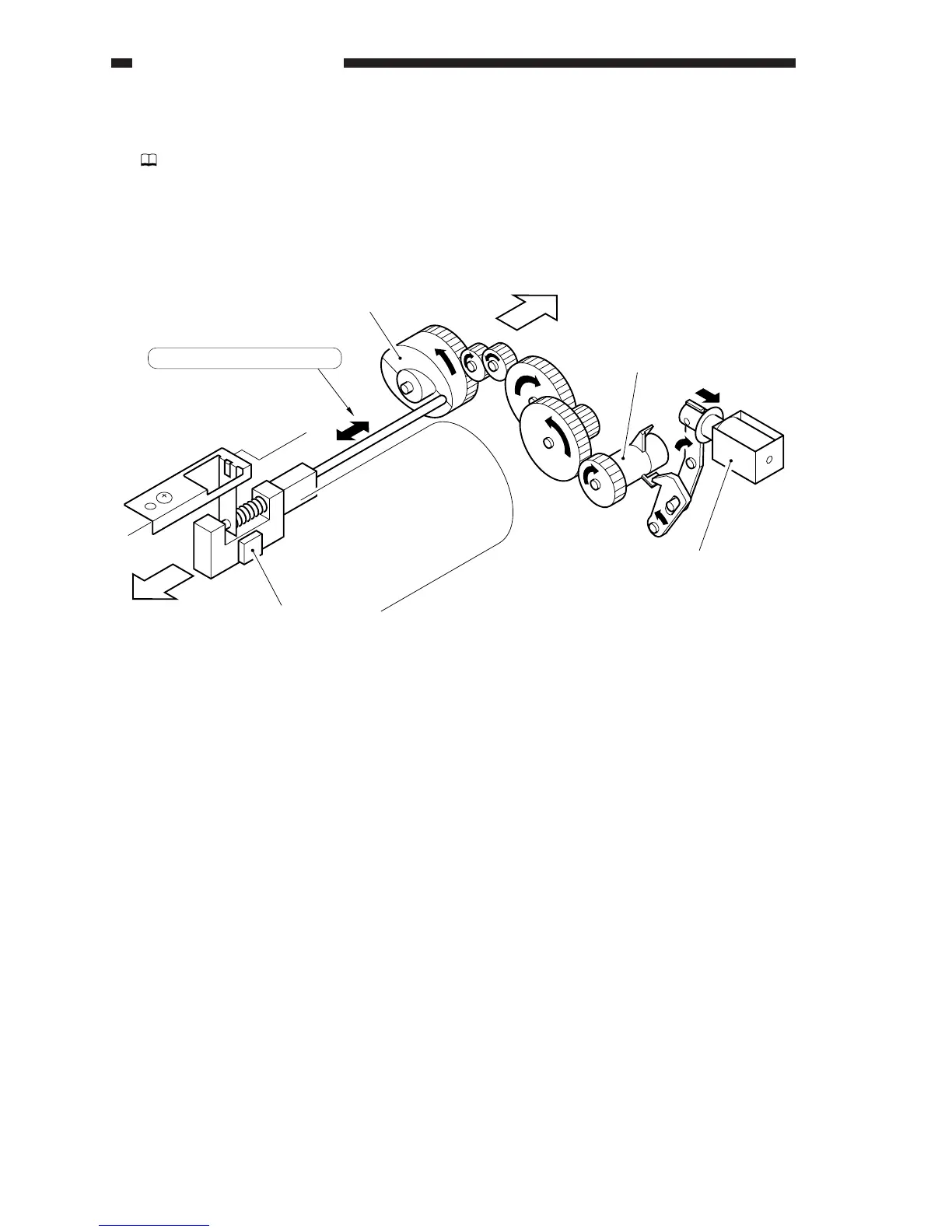

Figure 8-205 Construction of the Control System
Main thermistor
Cam
One-way clutch
Cleaning belt drive belt solenoid (SL2)
(front)
(rear)
Upper fixing roller
Reciprocating width: 12 mm
