CHAPTER 13 TROUBLESHOOTING
5 Orienting the Manual Feed Pickup Roller
(front of the copier)
[3]
[4]
[2]
[1]
[5]
6 Orienting the Side Paper Deck Feeding Roller
Figure 13-D206
(front)
[3]
[4]
[2]
[1]
[5]

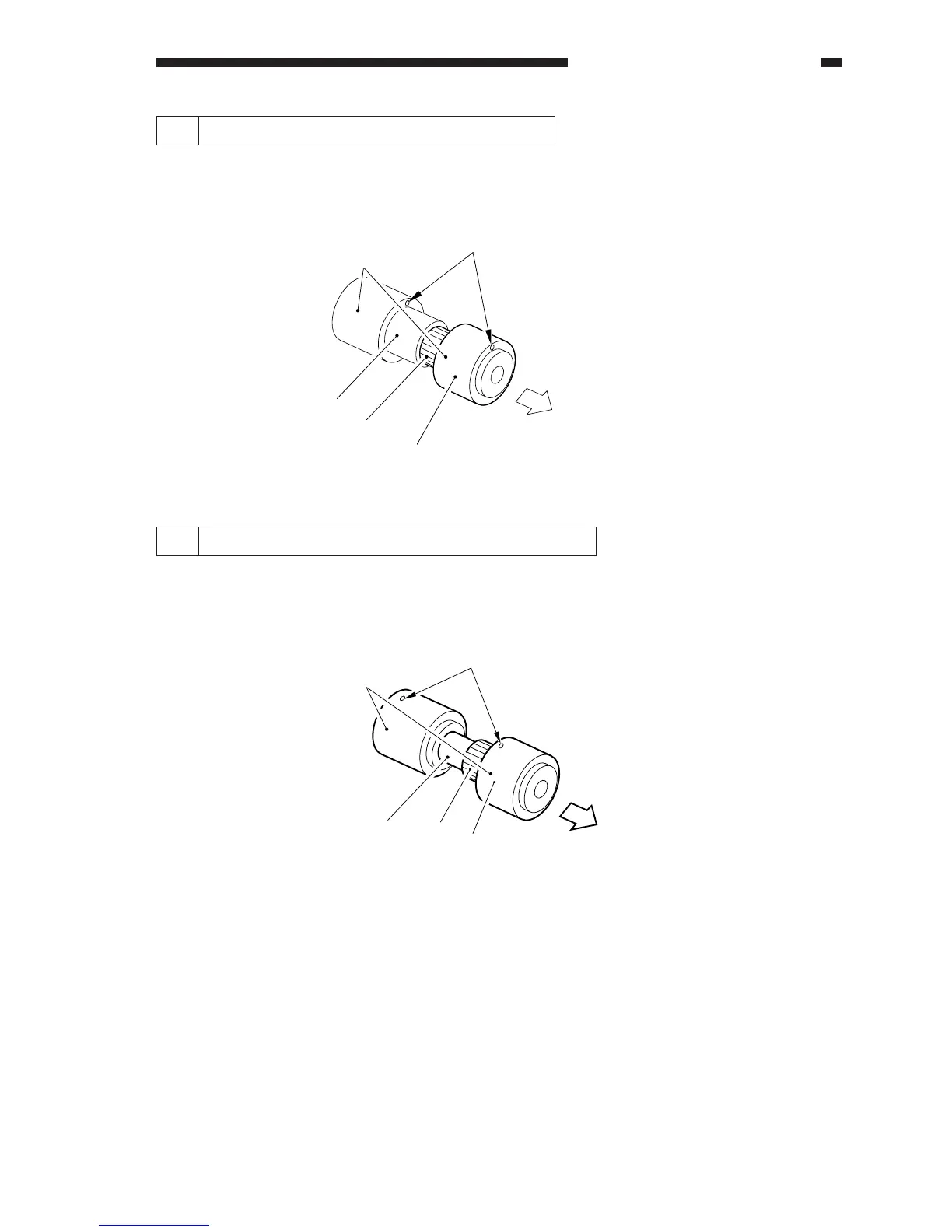

When routing the feeding roller assembly [1] to the manual feed tray pickup assembly, be sure
that the belt pulley [2] is toward the copier's front. When mounting the feeding roller [3] to the
feeding roll shaft [4], be sure that the round marking [5] is toward the copier's front.
Figure 13-D205
When mounting the feeding roller [1] to the side paper deck pickup assembly, be sure that the
belt pulley [2] is toward the copier's front. When mounting the feeding roller [3] to the feeding roler
shaft [4], be sure that the round marking [5] is toward the copier's rear.
