CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-52
COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
A
0.4±0.2mm 0.4±0.2mm
[1]
[2]
[1]
[3]
[2]

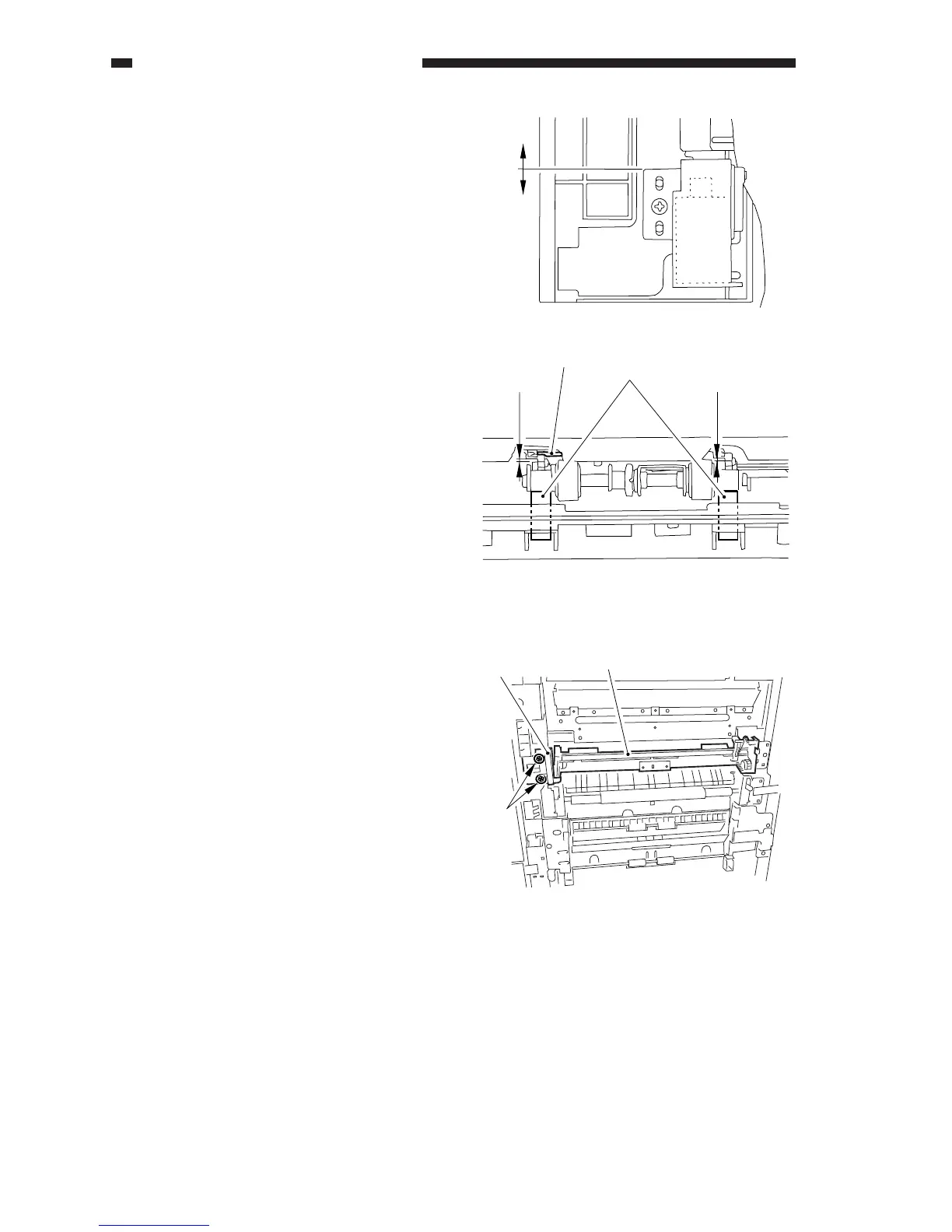

Figure 7-A821
Figure 7-A822
Figure 7-A823
10. Position of the Pickup Roller
Releasing Solenoid of the Manual
Feed Tray
Slide the solenoid into the direction of A
so that the gap between the shutter [1] and the
shutter plate [2] is 0.4 ±0.2 mm when the sole-
noid is pulled.
11. Removing the Manual Feed Roller
1) Open the manual feed tray door.
2) Remove the two screws [3], and detach
the front fixing plate [2] of the manual
feed roller assembly [1].
