Canon GP605 - Developing Assembly; Removing the Developing Assembly

COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
6-69
CHAPTER 6 IMAGE FORMATION SYSTEM

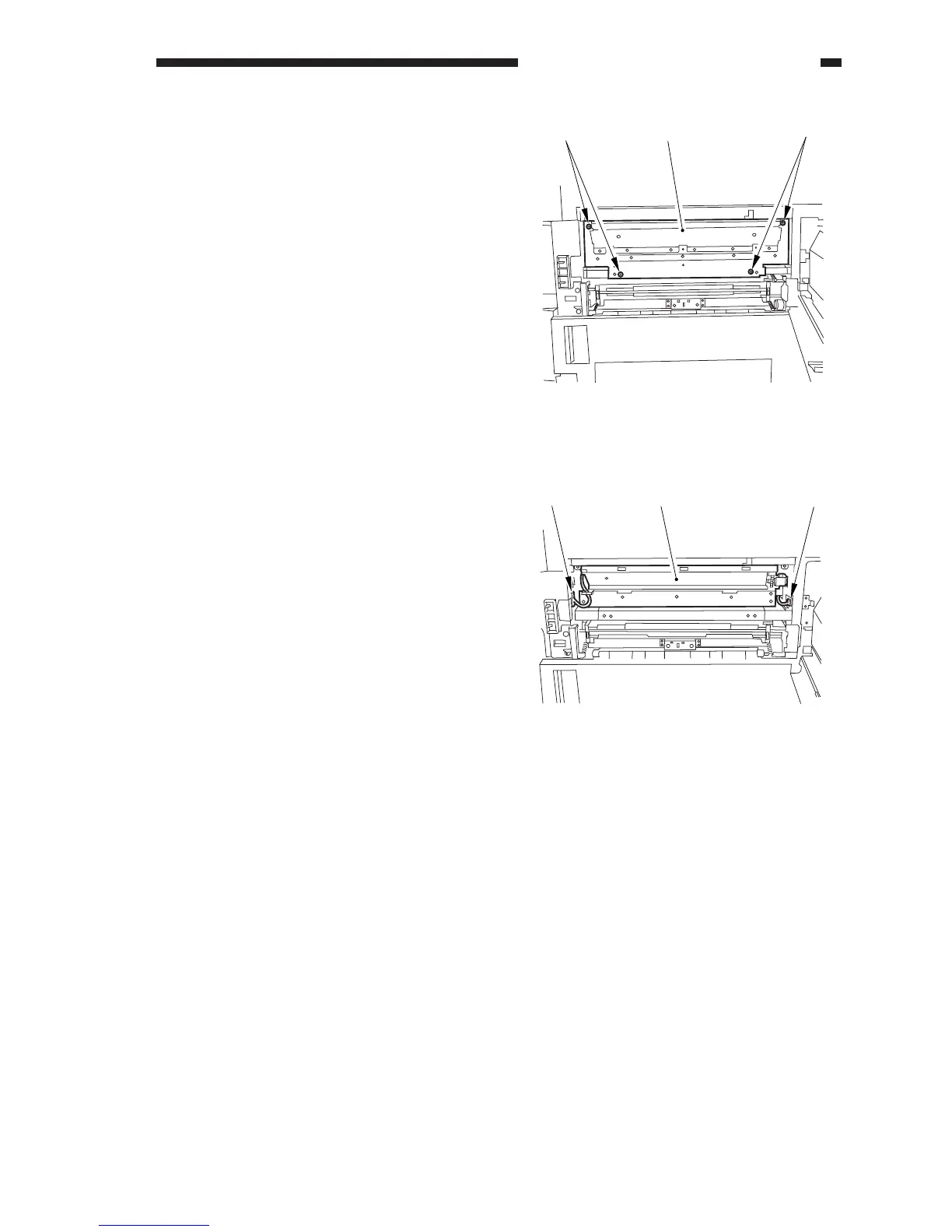

Figure 6-E701
Figure 6-E702
E. Developing Assembly
1. Removing the Developing
Assembly
1) Open the manual feed tray cover; then, re-
move the four mounting screws [1], and
detach the developing assembly stay [2].
2) Disconnect the two connectors [3], and
slide out the developing assembly [4] to
the front.
[1]
[1]
[2]
[4]
[3][3]
