CHAPTER 7 PICK-UP/FEEDING SYSTEM
2. Detecting the Paper Size
Volume 2>Chapter 5>B.3. "Detecting the Paper Size"

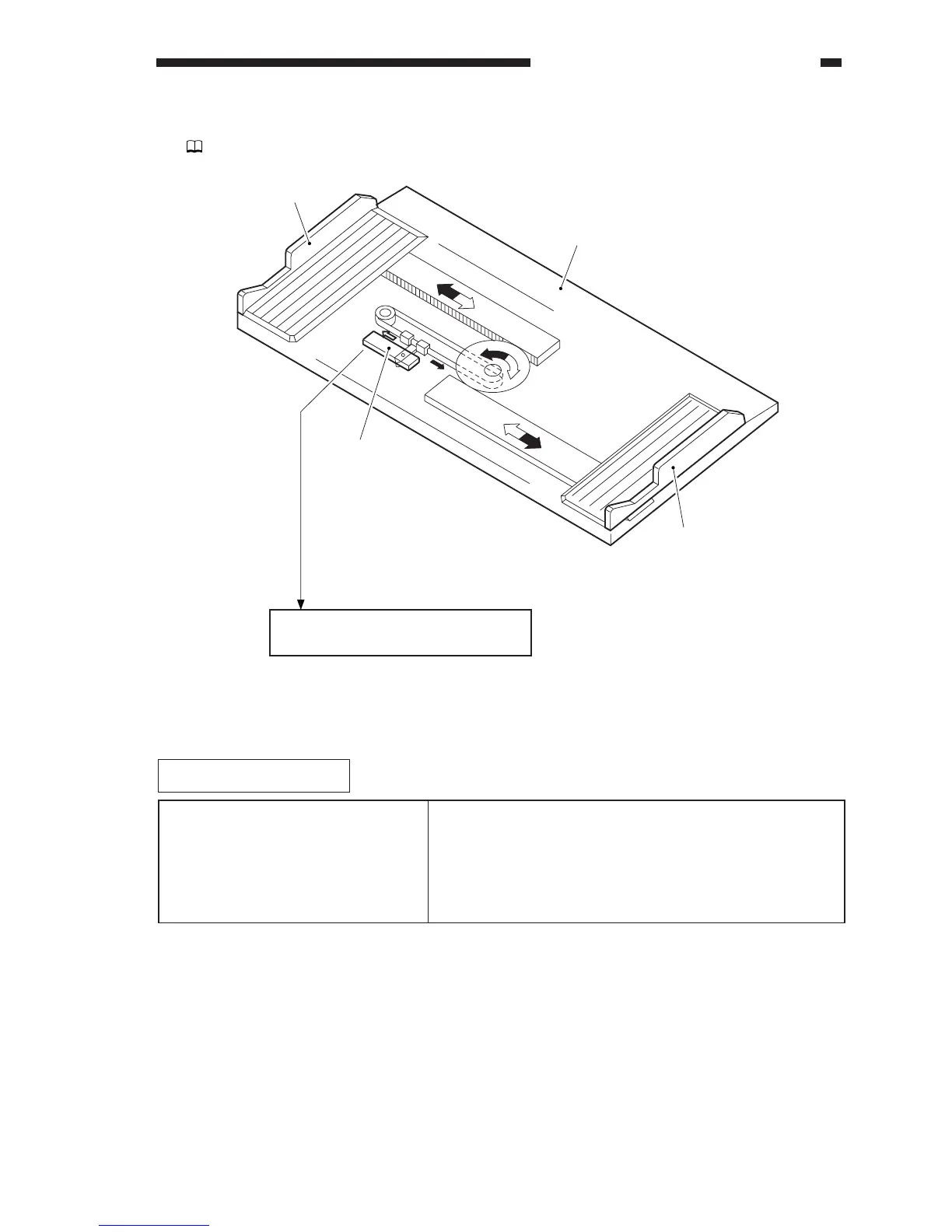

Figure 7-215
DC controller PCB
Variable
registration(SVR1)
Side guide (rear)
Side guide (front)
Manual feed tray
Manual feed tray power width detection signal (MLT_WTH_VR)J510-B5
COPIER>ADJUST>CST-ADJ>MF-A4R
COPIER>ADJUST>CST-ADJ>MF-A6R
COPIER>ADJUST>CST-ADJ>MF-A4
Use it to change the paper width basic value for A4R on the
manual feed tray.
Use it to adjust the paper width basic value for A6R on the
manual feed tray.
Use it to adjust the paper width basic value for A4 on the
manual feed tray.
Related Service Mode
