COPYRIGHT
©
1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
6-79
CHAPTER 6 IMAGE FORMATION SYSTEM
Figure 6-G701
Figure 6-G702
Figure 6-G703
[2]
[3]
[1]
[5]
[4]
Separation claw holder
Rack

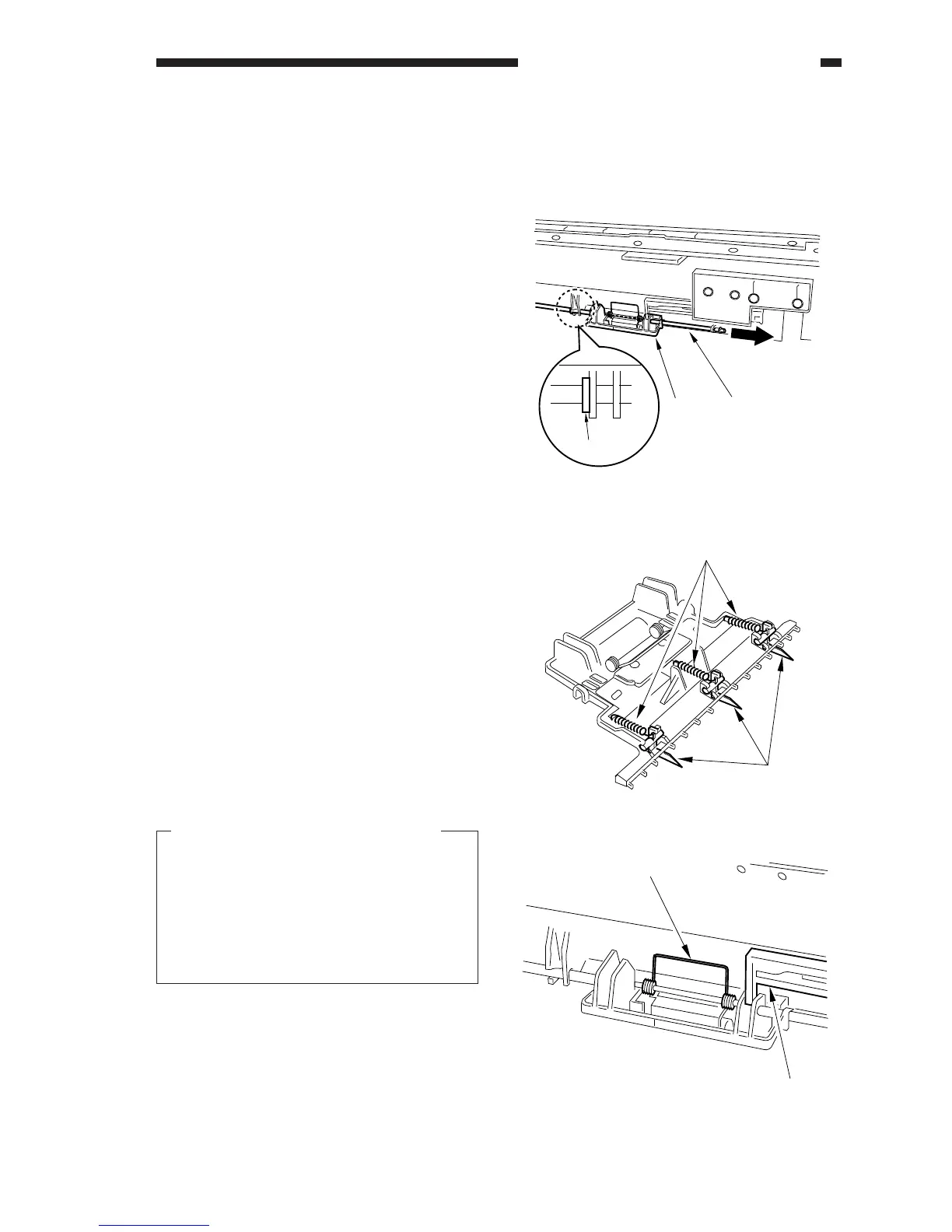

G. Separation Claw/
Separation Claw Drive
Assembly
1) Open the front cover.
2) Take out the process unit.
3) Remove the E-ring [1], and slide out the
separation claw holder shaft [2] to the
front to detach the separation holder [3].
4) Remove the spring [4], and detach the
separation claw [5].
Points to Note When Mounting
When mounting the separation claw
holder, be sure that the separation claw
holder spring is butted against the drum
cleaner case. Further, check to make sure
that the rack of the separation claw 3
drive assembly is engaged with the
groove in the separation claw holder.
To Next Page
