7-21
CHAPTER 7 PICK-UP/FEEDING SYSTEM

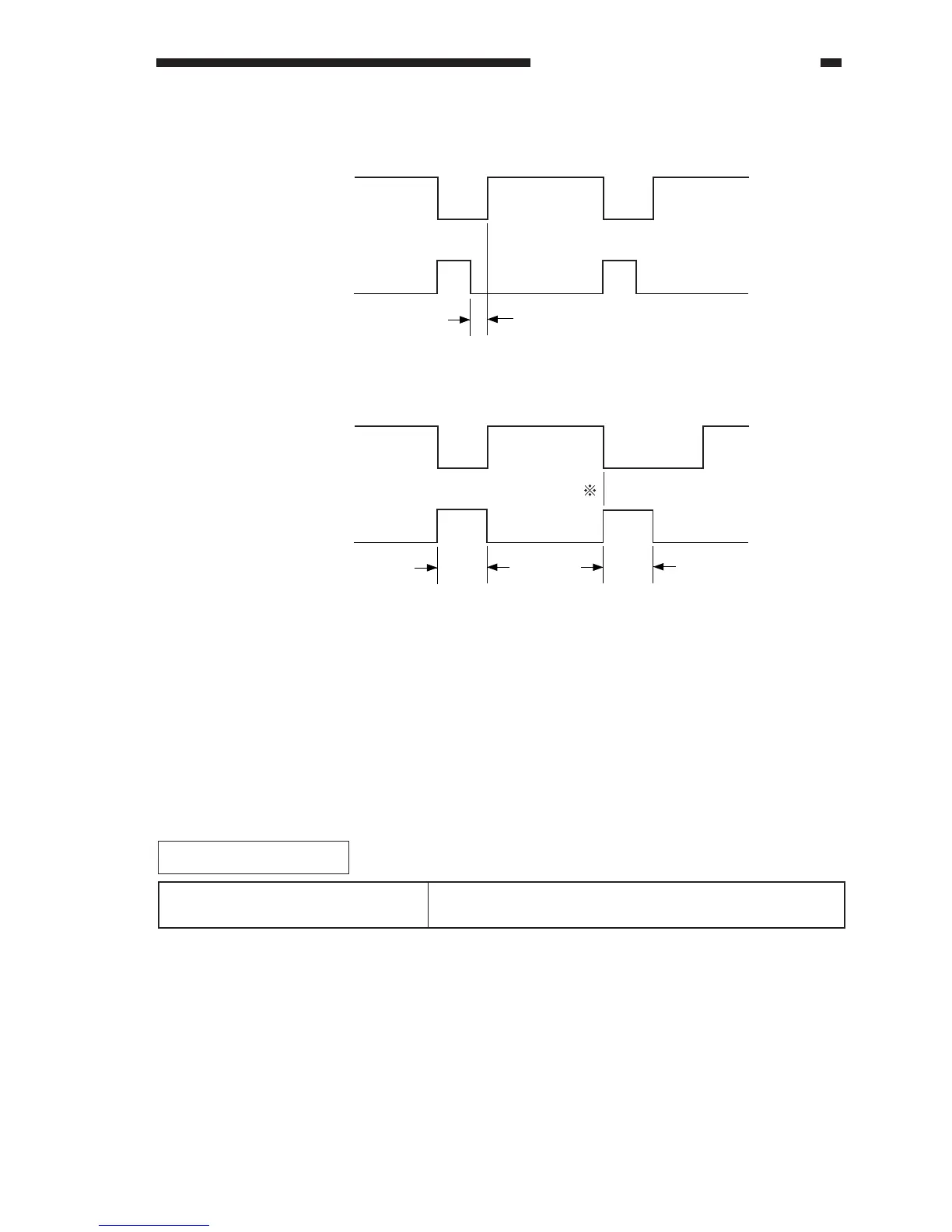

C. Sequence of Operations (registration brake)
Figure 7-302
As soon as the registration drive signal turns off, the registration brake clutch is kept on de-
pending on the way paper is being fed for a specific period of time to prevent idle rotation otherwise
caused by inertia.
Registration clutch
(CL2)
Registration brake
clutch (CL3)
Pre-registration
clutch (CL5)
Pre-registration brake
clutch (CL6)
50 msec (approx.)
146 msec (approx.)
146 msec (approx.)
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Note: If paper stops for a long time before the registration roller,
• ADF original processing time
• Finisher delivery processing time
COPIER>ADJUST>FEED-ADJ>REGIST
Use it to adjust the image write start position in main
scanning direction during re-pickup
Related Service Mode
