Canon GP605 - Removing the Multifeeder Pickup Drive Assembly

COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
9-53
CHAPTER 9 EXTERNALS/AUXILIARY MECHANISMS
[2] [2]
[2]
[2]
[1]
[1]
[1]
[1]
[3]

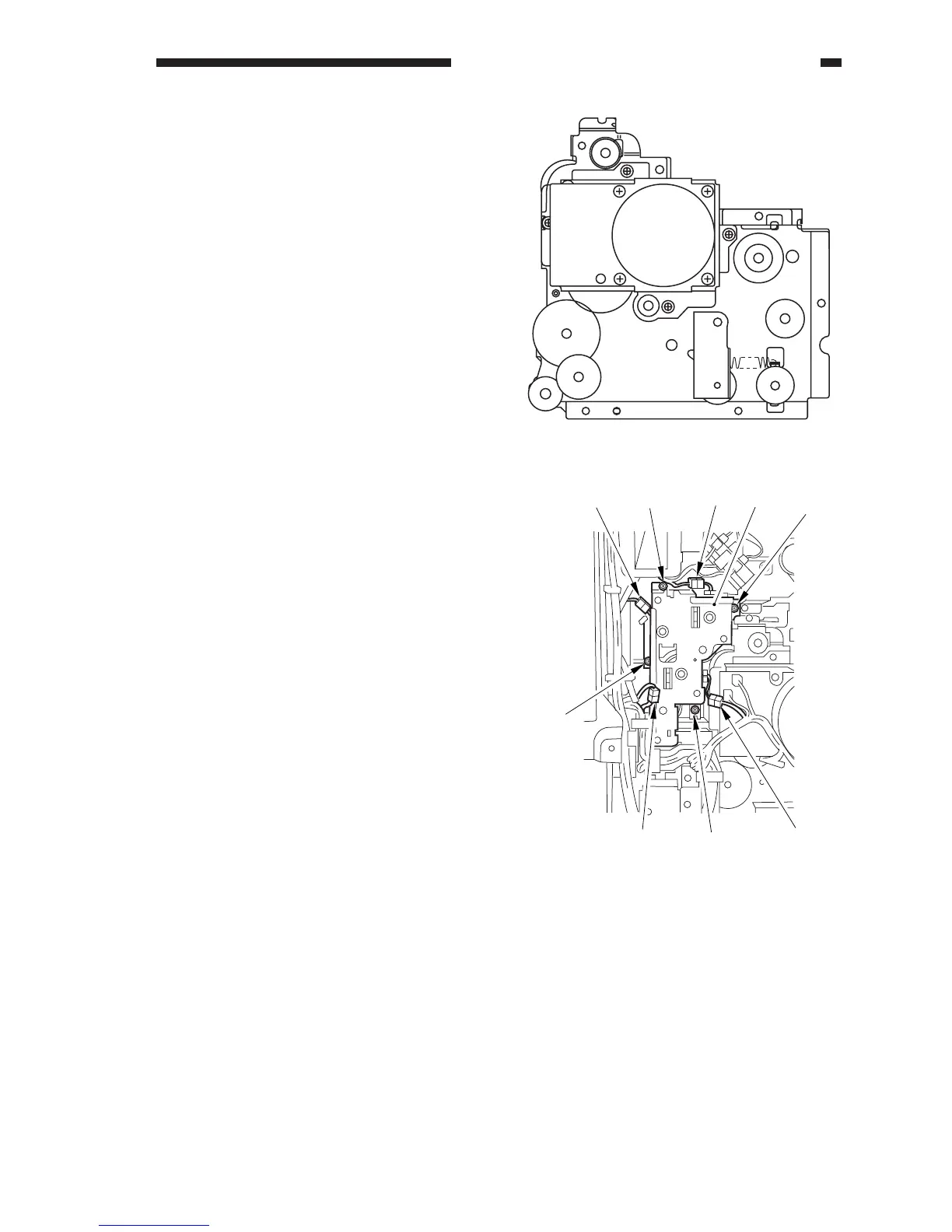

6. Removing the Multifeeder Pickup
Drive Assembly
Construction
1) Remove the rear cover.
2) Remove the high-voltage transformer
(DC).
3) Loosen the mounting screw on the rear
fixing plate of the registration roller as-
sembly.
4) Remove the four screws [1], and discon-
nect the four connectors [2]; then, detach
the multifeeder pickup drive assembly [3].
Figure 9-D708
