CHAPTER 10 SIDE PAPER DECK

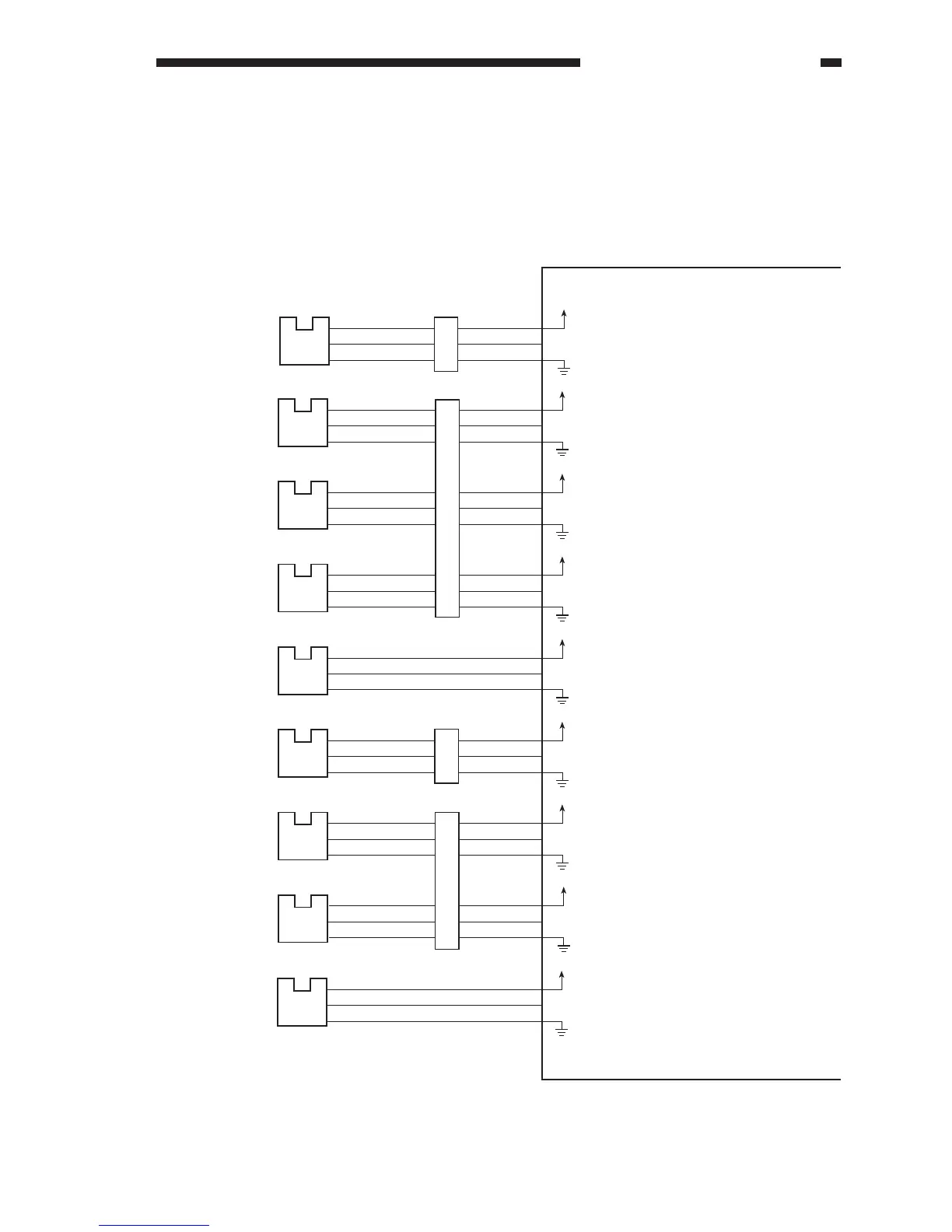

Figure 10-101a
Side deck driver PCB
Deck lifter upper
limit sensor
When the deck lifter is at the upper
limit, '1'.
(When the light-blocking sensor is
at PS103.)
J10-1
-2
-3
J8-5
-4
-3
+5VR
PS101
PS102
PS104
PS105
Deck paper
supply position
sensor
When the deck lifter is at the paper
supply position, '1'.
(When the light-blocking sensor is
at PS107.)
J5-1
-2
-3
J4-4
-3
-2
J4-7
-6
-5
J4-10
-9
-8
J8-10
-9
-8
J104-5
-4
-3
J104-10
-9
-8
J107-3
-2
-1
J107-6
-5
-4
J108-8
-7
-6
J103-7
-6
-5
J103-10
-9
-8
J103-13
-12
-11
+5VR
PS103
Deck set sensor
When the deck is set in the copier,
'1'.
(When the light-blocking sensor is
at PS105.)
J6-1
-2
-3
+5VR
PS109
Deck open sensor
When the compartment is set in
the deck, '1'.
(When the light-blocking sensor is
at PS109.)
J25-1
-2
-3
+5VR
Deck paper level
sensor
J7-1
-2
-3
+5VR
Deck feed sensor
When PS108 detects the absence
of paper (level decreasing to half),
'1'.
(When the light-blocking sensor is
at PS108.)
J24-1
-2
-3
+5VR
Deck pickup
sensor
When PS101 detects paper, '1'.
(When the light-blocking sensor is
at PS101.)
When PS106 detects paper, '1'.
(When the light-blocking sensor is
at PS106.)
J12-1
-2
-3
J17-3
-2
-1
J17-14
-13
-12
+5VR
Deck paper
absent sensor
When paper is absent in the deck,
'0'.
(When the light-blocking sensor is
not at PS102.)
J18-1
-2
-3
+5VR
+5VR
Deck lifter
position sensor
When the lifter is at the pickup
position, '1'.
(When the light-blocking sensor is
at PS104.)
J19-1
-2
-3
J108-5
-4
-3
PS106
PS107
PS108
DPPD
DPE*
DLUL
DLPD
DSET
DPFD
DPSP
DPLD
DOPND*
I . SIDE PAPER DECK
A. Inputs to and Outputs from the Side Deck Driver
1. Inputs to the Side Deck Driver (1/2)
