COPYRIGHT © 1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
4-27
CHAPTER 4 IMAGE PROCESSING SYSTEM

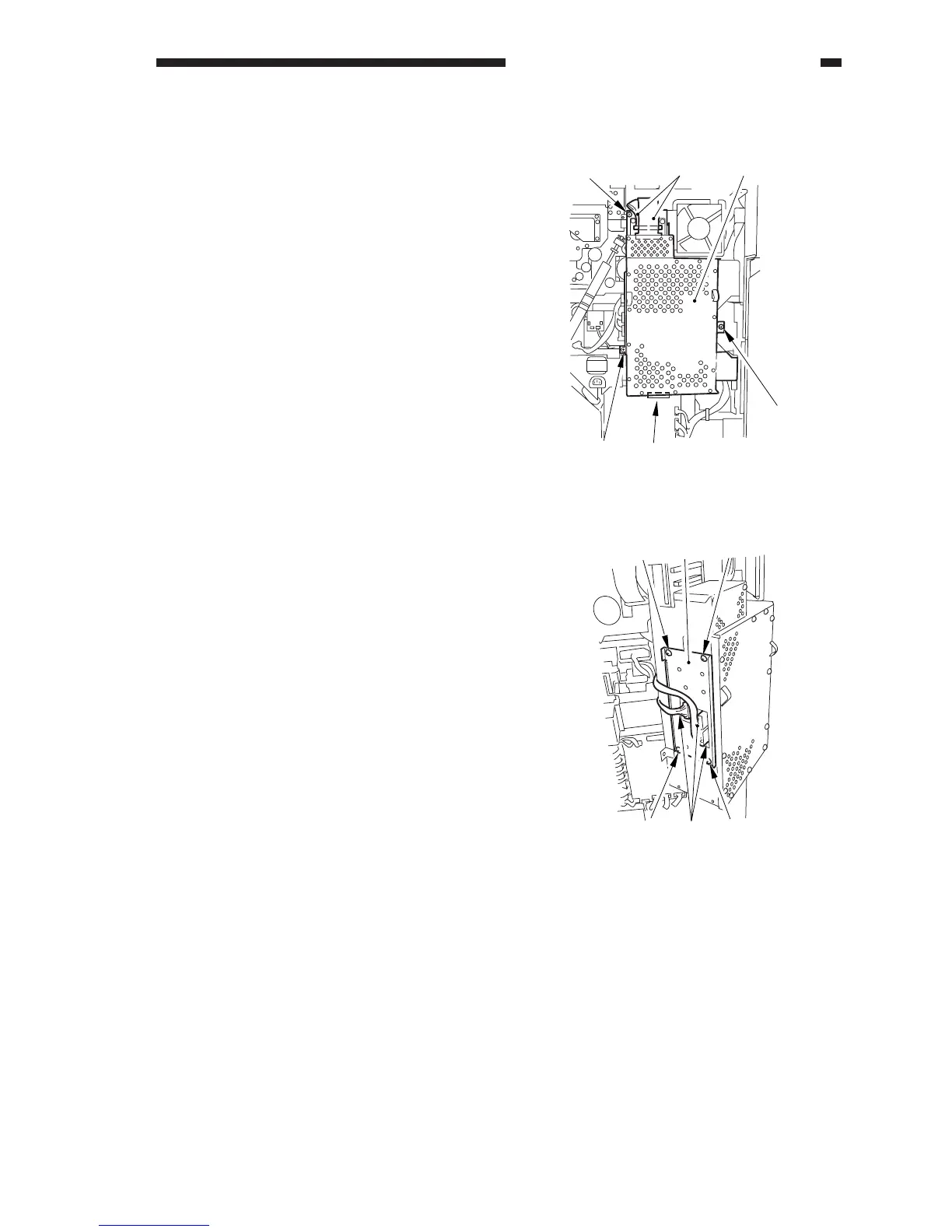

Figure 4-D401
Figure 4-D402
[2]
[1]
[1] [3][2]
[2]
[5]
[5]
[4]
[5] [6]
[5]
D. Others
1. Removing the System Motherboard
1) Remove the rear cover.
2) Remove the three flat cables [1] and three
screws [2]; then, open the system box [3].
3) Disconnect the three connectors [4], and
remove the four screws [5]; then, detach
the motherboard [6].
