CHAPTER 13 TROUBLESHOOTING
13-30
COPYRIGHT
©
1999 CANON INC. CANON GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

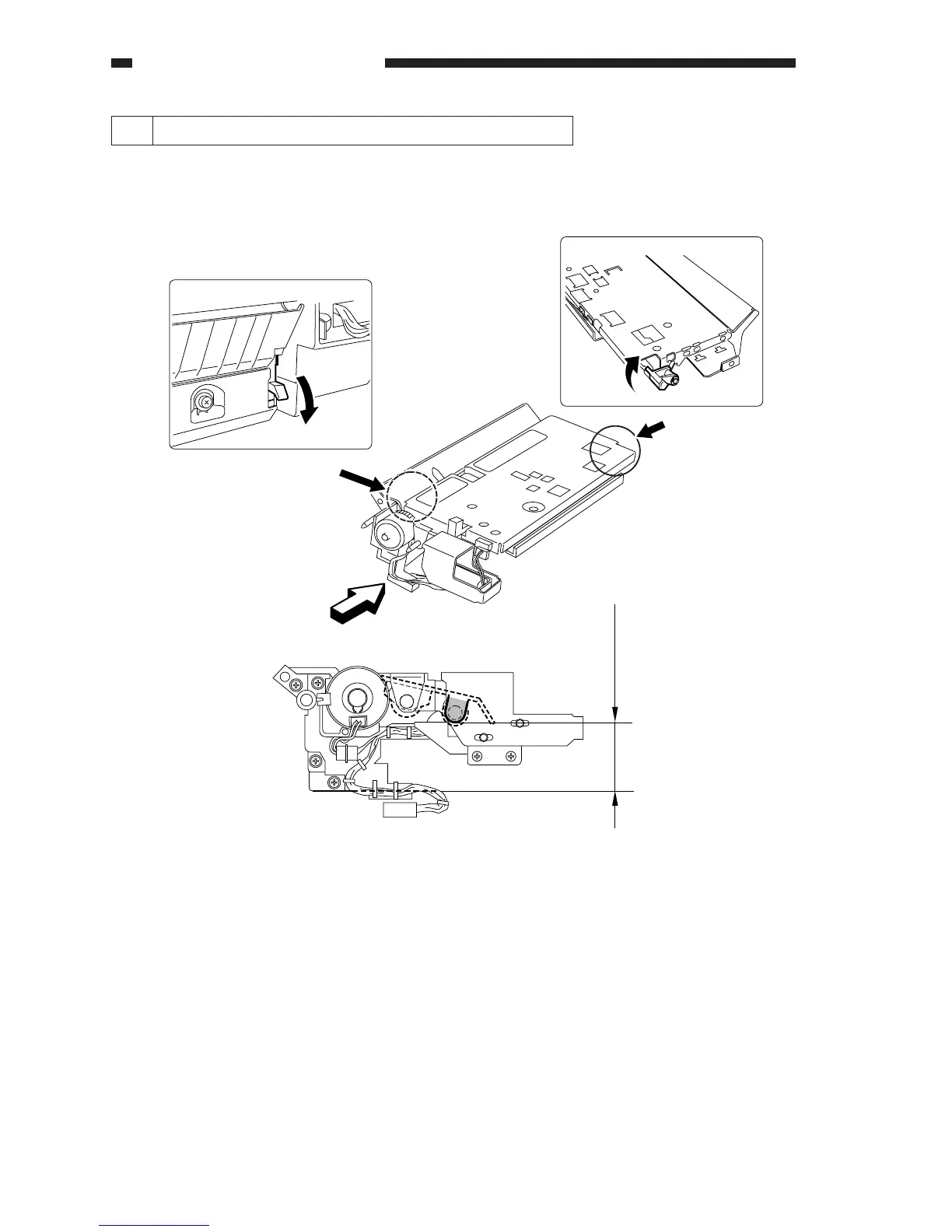

9.7 Position of the Deck (left) Pickup Solenoid (SL8)
Figure 13-D216
[2]
[1]
[1]
[2]
A
Viewed from A
50±0.5mm
Adjust the pickup solenoid using the screw [1] so that the distance between the bottom face of
the pickup unit of each holder and the bottom edge of the bushing of the roller support plate is 50
±0.5 mm when the plunger of the pickup roller releasing solenoid is pulled as shown (operated as in
[1] and [2]).
