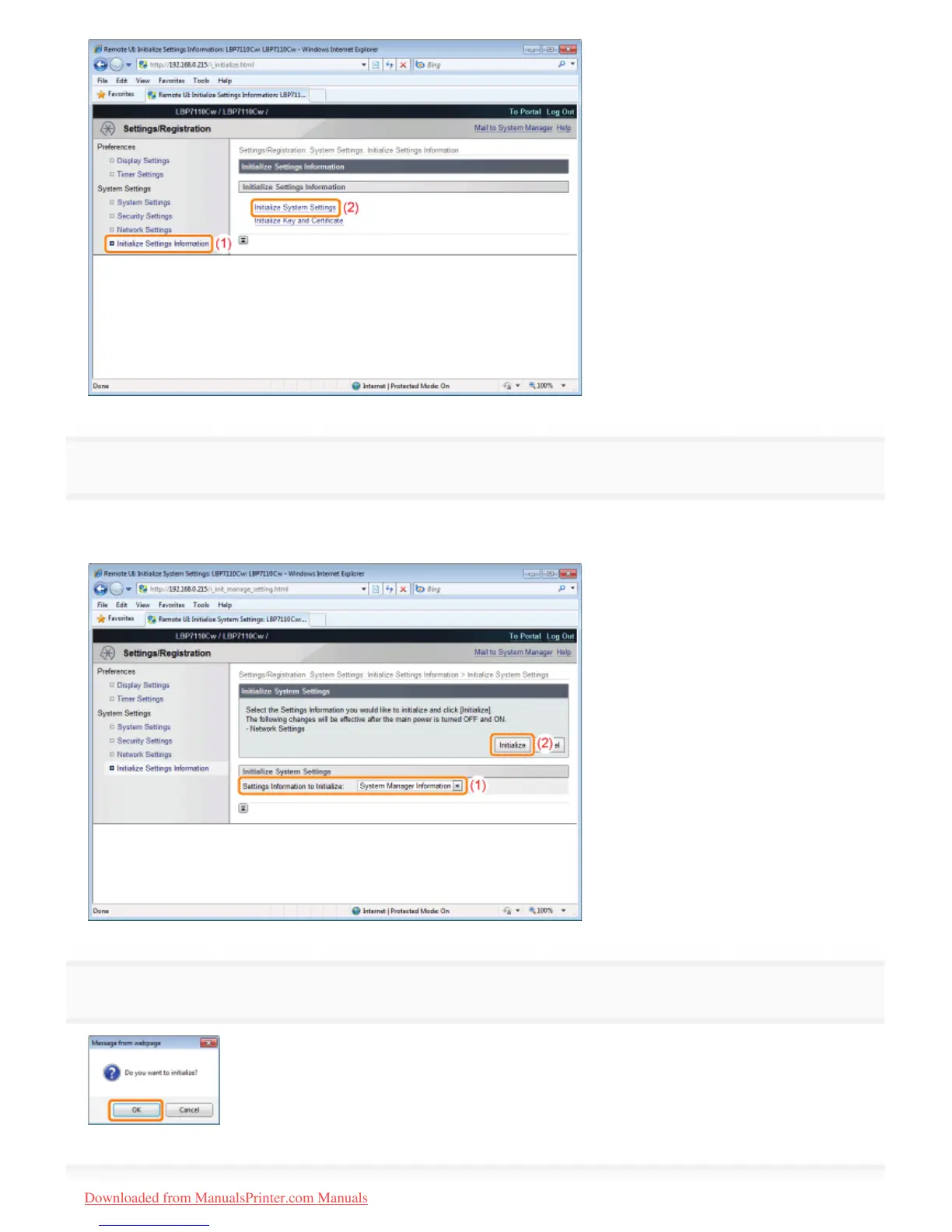

Initialize the system settings.

(1) Select the setting information to initialize.

(2) Click [Initialize].

Clicking [OK] initializes the selected setting information.

㻟㻟㻥㻌㻛㻌㻡㻝㻠
