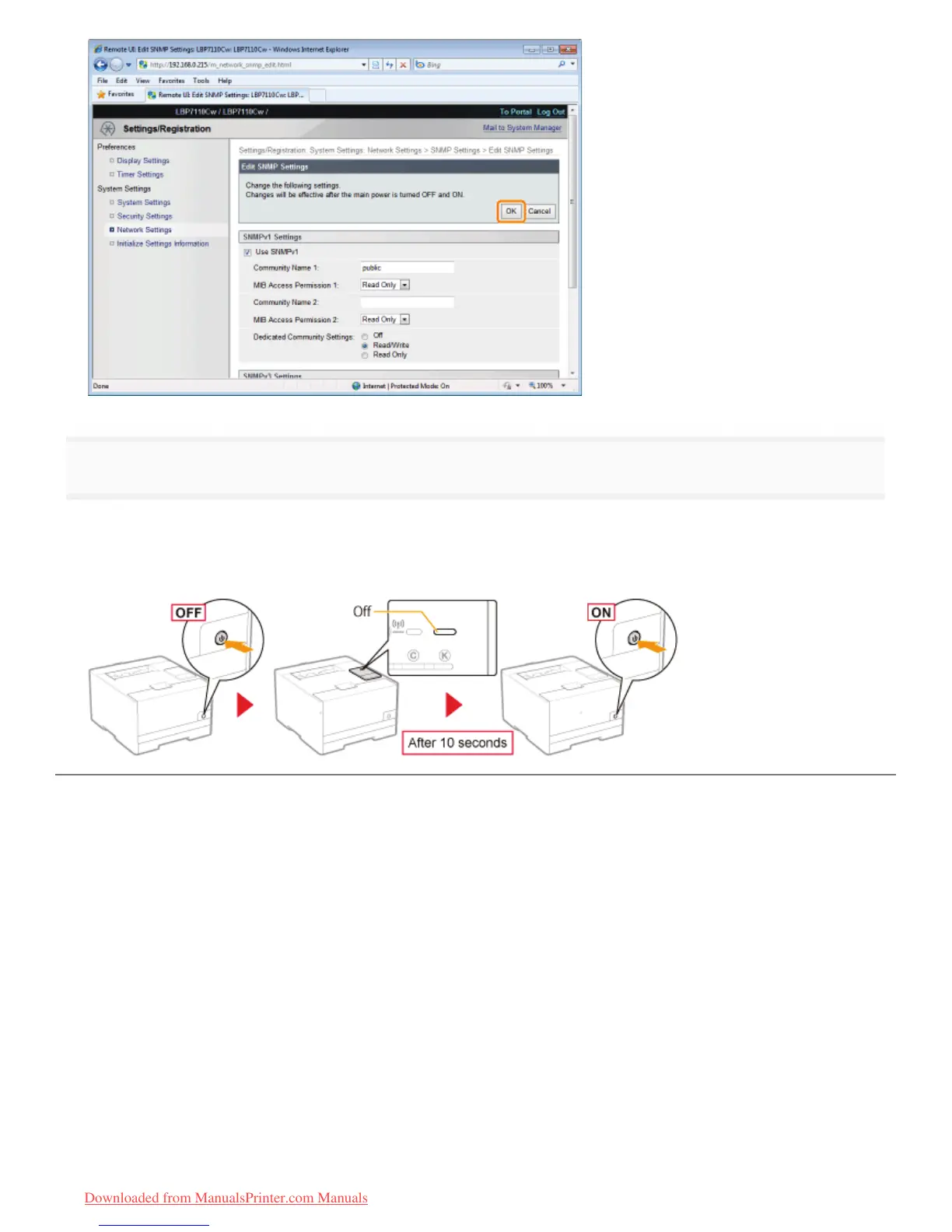

Restart the printer.

Turn the printer OFF, make sure that the Main Power indicator is off, wait for 10 seconds or longer, and then turn it ON

again.

ĺ After the printer is restarted, the settings become effective.

㻟㻡㻥㻌㻛㻌㻡㻝㻠
