Case 1121F - Page 130

3-CONTROLSANDINSTRUMENTS
RCPH10WHL079FAH4

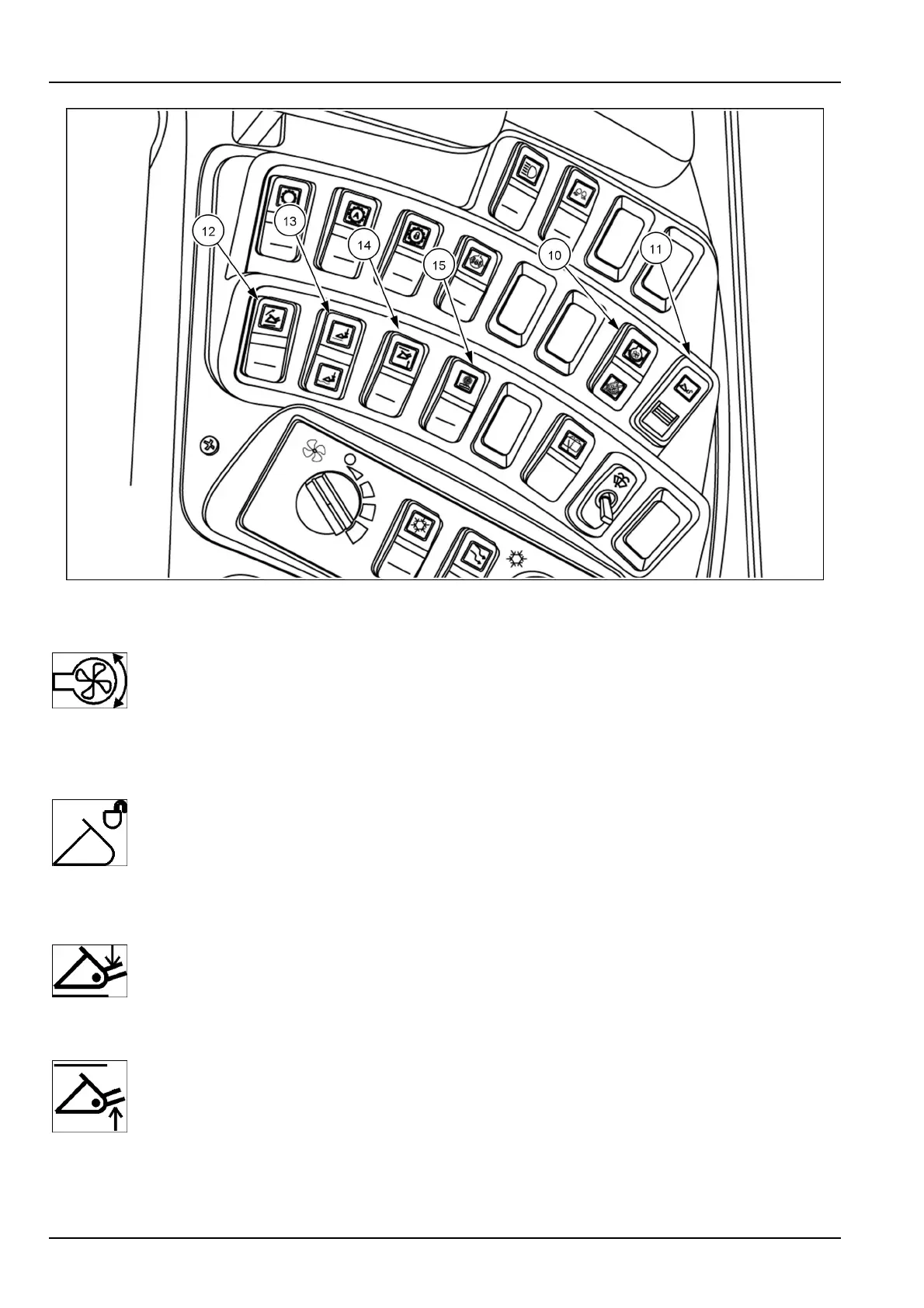

10.Fanreverseswitch(ifequipped)
Tousethefanreverserletthemachineidleinneutral.Depressthefanreverserswitchanddepress
thethrottletohighidleforaminimumof10secondsoruntildebrisstopsblowingoutofthecoolers.
Returnthemachinetoidleandreleasethefanreverserswitch.Thisisathree-positionswitch.Push
theupperpartoftheswitchformomentaryreversalasdescribedabove.Thecenterpositionofthe
switchistheautomaticposition,andthelowerpositiondisablestheautomaticfan.
11.Couplerengagementswitch(ifequipped)
Thisswitchallowsengagementoftheattachmentfromtheoperator'scompartment.Slidethelocking
platetowardthecenteroftheswitch.Pushdownonthetopoftheswitchtoretractpinsforthe
attachment.Theswitchlampwillilluminatewhenthepinshavebeenretracted.Theswitchwilllock
thepinintheextendedpositionwhenthebottomoftheswitchhasbeenpressedandthepinsare
extended.
12.Returntodigswitch
PushonthetopofthefunctionswitchfortheONposition.Thiswillallowthebuckettoreturntolevel
withthegroundfordigging.
13.Returntotraveldetentswitch
Thereturn-to-travelswitchisusedtoautomaticallyreturntheloaderbuckettothetravelpositionafter
youhavedumpedtheloaderbucket.Pushdownonthetopofthereturn-to-travelswitchtoengage
thereturntotraveldetent.Pushthebottomoftheswitchfortheoatdetentposition.
3-64
