Case 1121F - Climate Controls

3-CONTROLSANDINSTRUMENTS
Climatecontrols[60631623]

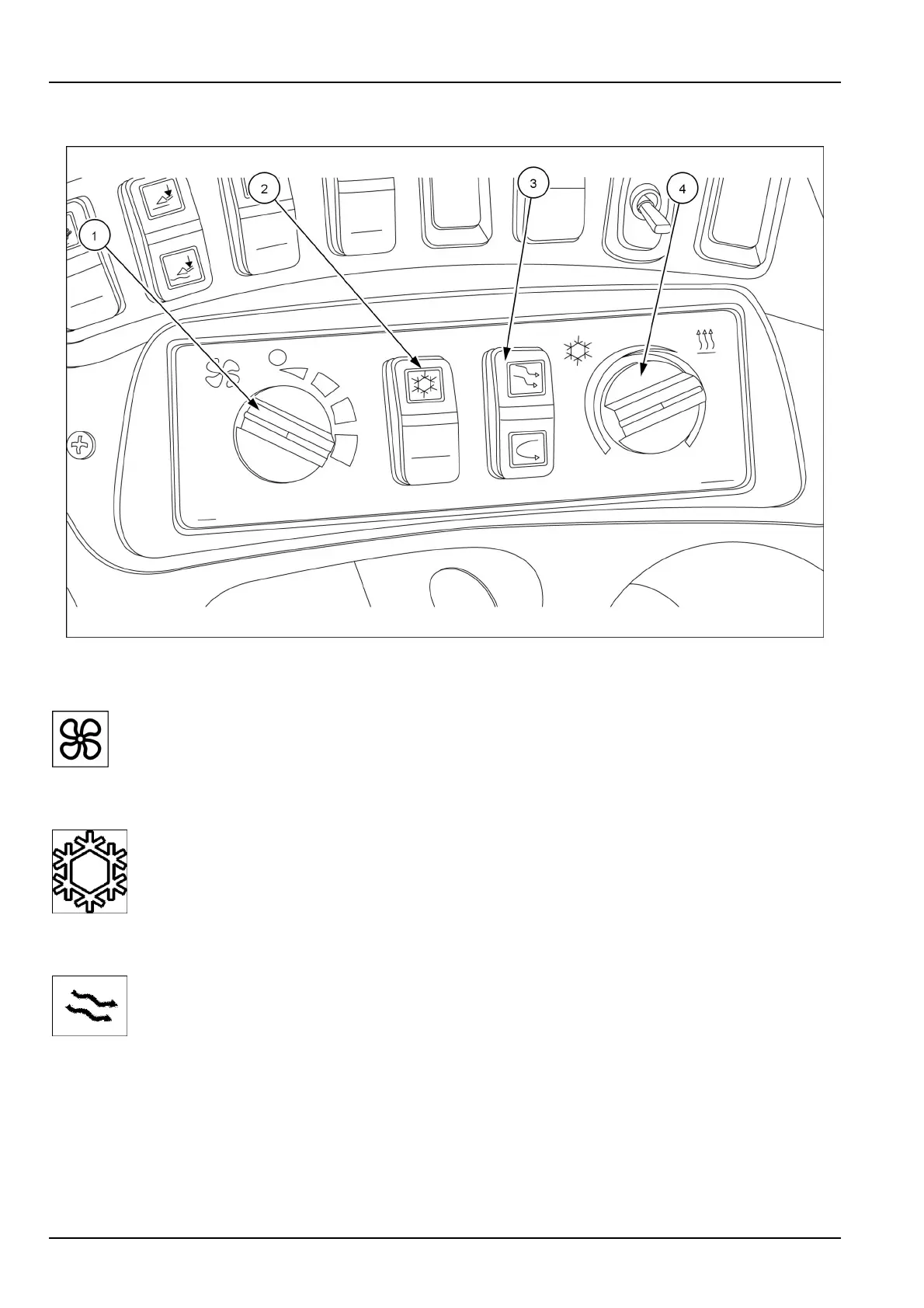

RCPH10WHL451FAH1
1.Fan
Turnthecontrolclockwiseforhigherfanspeed.andadjustthecontroltothedesiredspeed.The
blowerfanswitchhasvepositions:OFF,1,2,3,and4.Turntheswitchto4formaximumspeedand
to1forthelowestspeed.TurncompletelycounterclockwiseforOFF .
2.Airconditioningcontrol(ifequipped)
PushonthesnowakeswitchtoturntheairconditioningfunctionON.WhentheairconditionerisON,
thesnowakewillilluminate.Turnthecontroltoadjustthecontroltothedesiredtemperature.Blue
markingsindicatecoolertemperatures.
3.Recirculationswitch
Presstherecirculationswitchtobringinfreshairoruseinconjunctionwiththeclimatecontrolto
adjustairow.
4.Climatecontroladjustment
Turnthecontrolclockwise,andadjustthecontroltothedesiredtemperature.Bluemarkingsindicatecoolertempera-
tures.Redmarkingsindicatewarmertemperatureswhenusingtheheater.Heaterandairconditioningswitchesturn
thefunctionsonandoff.
NOTE:MakesurethewaterinletfortheheaterisinthefullONposition.Thisinletislocatedintheleftrearofthe
enginecompartment.
