Case 1121F - Height Control and Return to Travel

7-MAINTENANCE
Heightcontrolandreturntotravel[60636941]
RCPH11WHL031FAH1

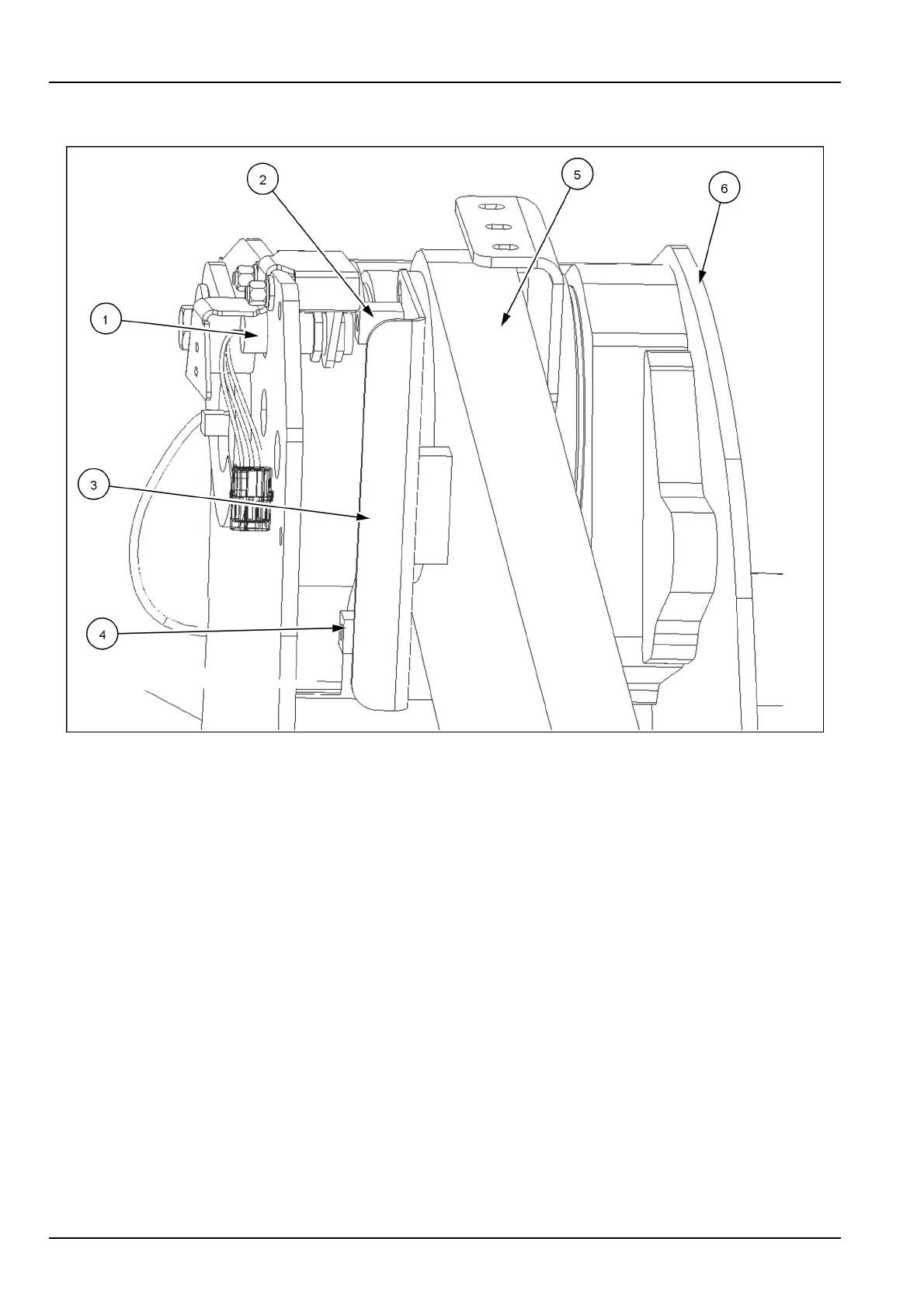

1.Proximityswitch4.Heightcontroltarget
2.Returntotraveltarget
5.Liftarm
3.Targetmountingplate
6.Frontchassis(toplefthandside)
1.Keepallnon-authorizedpersonnelclearofthearea.
Parkthemachineonrm,levelground.
2.Starttheengine,andapplytheparkingbrake.
3.Lowertheliftarms,andplacethebucketatonthe
ground.Stoptheengine.
7-86
