Case 1121F - Machine Inspection and Cleaning

7-MAINTENANCE
Machineinspectionandcleaning[60637153]
Prioroperation:
Keepallnon-authorizedpersonnelclearofthearea.Parkthemachineonarm,levelsurface,lowerbucket/attach-
menttothegroundandapplytheparkingbrake.
Coolingboxcomponents
1.Periodicallycheckthecoolingboxcomponentsfordirt
anddebrisbuildup.Thefanreversingfeaturewillnor-
mallykeepthisareaclearofanybuild-up.Ifnecessary
theareacanbecleanedwithcompressedairorwater.
Donotusehighpressurewatersprayoncomponents
asthismaydamageairconditioningns.

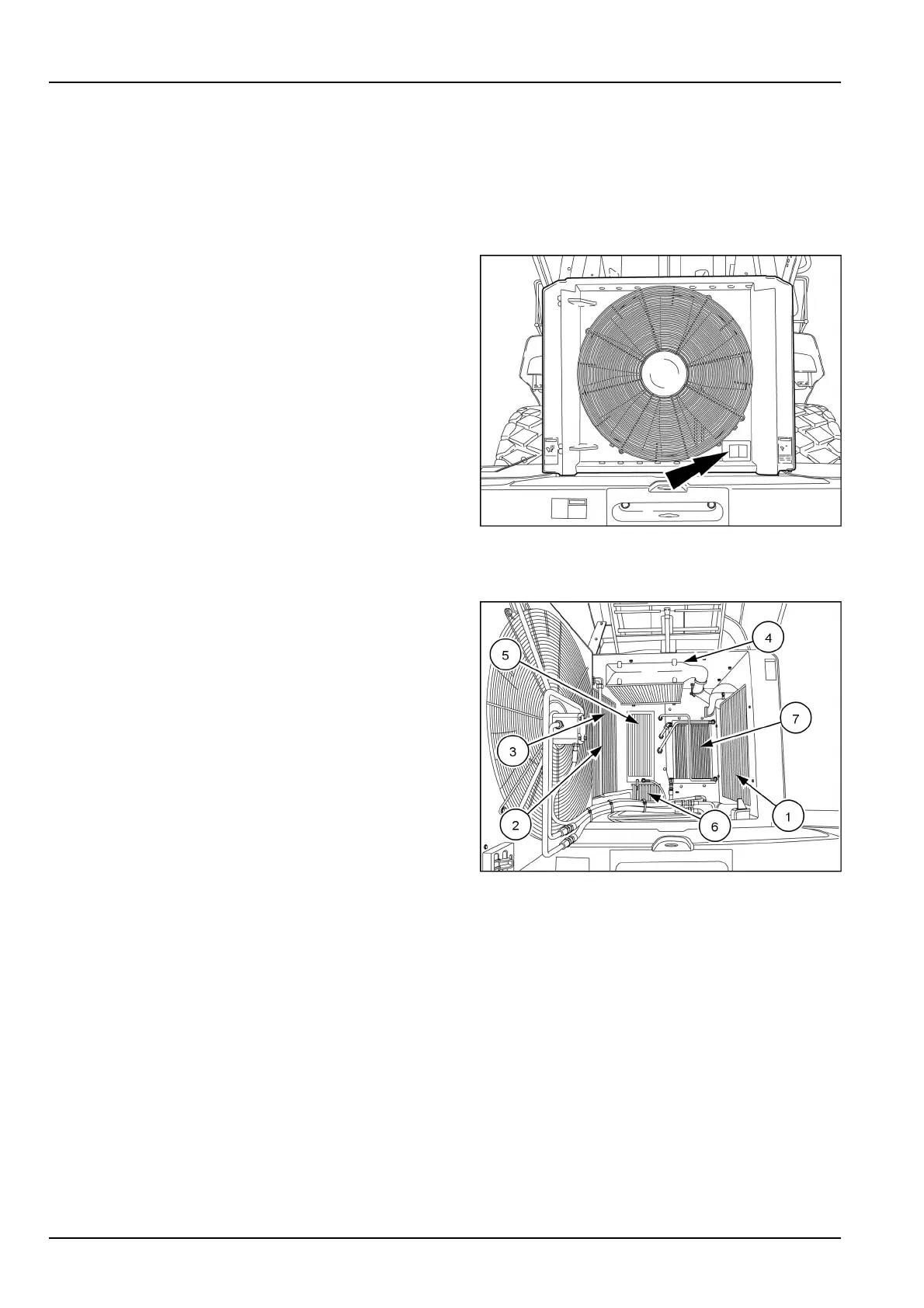

2.T oaccessthecoolingbox,raisethehoodandusethe
latchtoopenfandoor.
RCPH11WHL322AAH1
NOTE:Whenclosingthefandoor,takecaretoliftthedoorstrutslightlytoallowdoortoclose.Donotforcedoor
closed,asthismaydamagethestrutandlatchmechanism.
3.Thefollowingcomponentsarelocatedwithinthecool-
ingbox:
(1)Radiator
(2)Transmissioncooler
(3)Hydrauliccooler
(4)Chargeaircooler
(5)Airconditionercondenser
(6)Fuelcooler
(7)Axlecooler(ifequipped)
RCPH11WHL124AAH2
7-98
