Case 1121F - Three Function Valve

3-CONTROLSANDINSTRUMENTS
Threefunctionvalve[60629819]

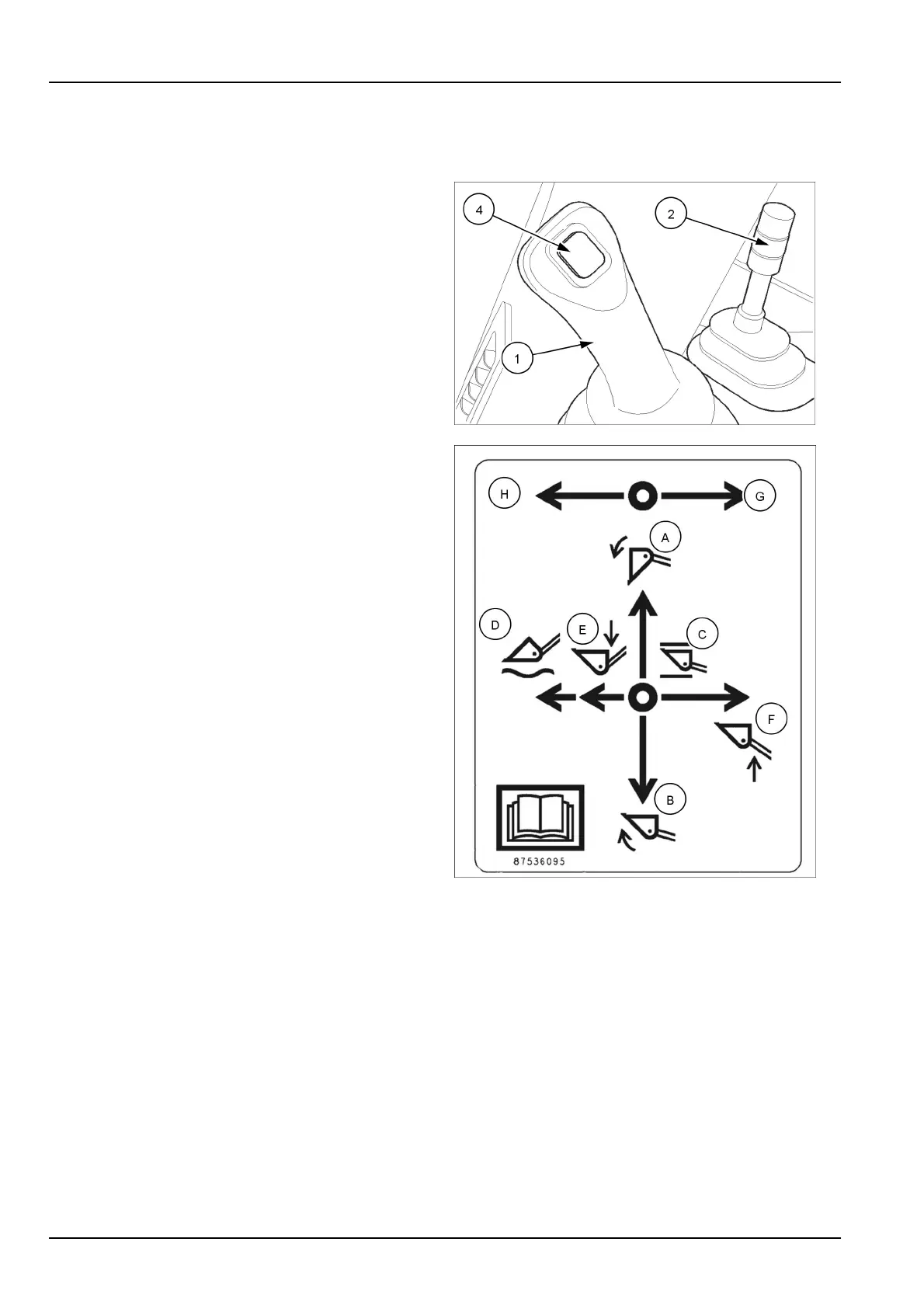

Threefunctionvalve-twocontrollevers
1.LIFTARMANDBUCKETCONTROL
A.DUMP
B.ROLLBACK
C.HOLD-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheHOLDposition.The
controlleverwillautomaticallyreturntotheHOLD
positionwhenreleased.Youmustmanuallymove
thecontrolleverfromtheFLOATpositiontothe
HOLDposition.
D.FLOAT(DETENT)-Thisisadetentposition.
WhenintheFLOAT(detent)position,theloader
bucketcanfollowthelevelofthegroundwithout
movementofthecontrollever
E.LOWER
F.RAISE
2.AUXILIARYCONTROL
G.AUXILIARYFUNCTION
H.AUXILIARYFUNCTION
