Case 1121F - Control Levers

4-OPERATINGINSTRUCTIONS
Controllevers[60632679]
Twofunctionvalve-onecontrollever
NOTE:Thispageshowsthebasicloadercontrollever
positions.
Seeloaderfunctionswitchesinthismanualforre-
turn-to-dig,bucketheightcontrolandreturn-to-travel/oat
switches.

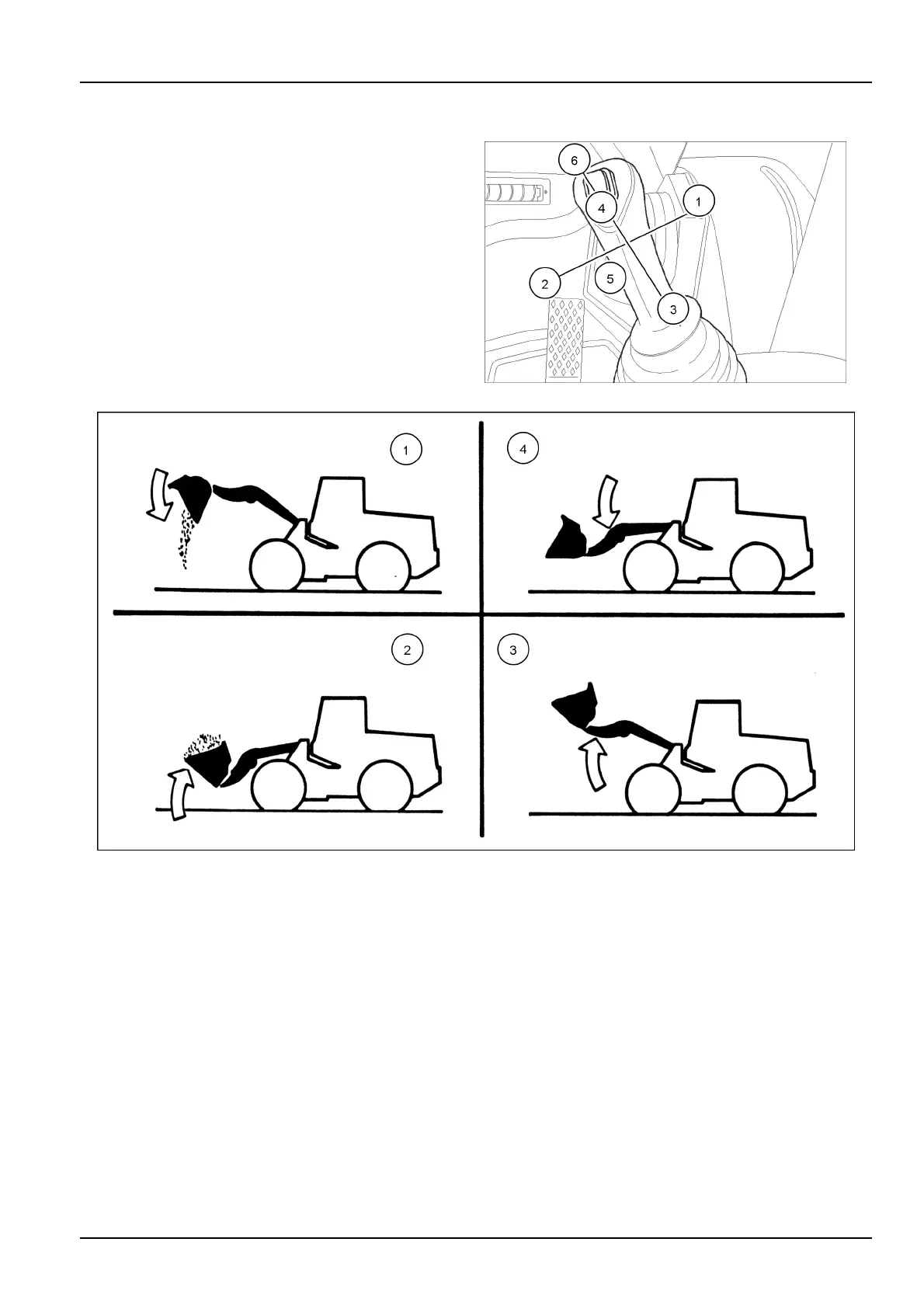

RCPH10WHL121BAL1
RCPH10WHL045BAH2
1.Dumpbucket
2.Rollbackbucket
3.Raiseliftarms
4.Lowerliftarms
5.Hold-Theloaderarmsandbucketwillnotmovewhen
thecontrolleverisintheholdposition.Whenre-
leased,thecontrollevermustbemanuallymoved
fromtheoatpositiontotheholdposition.(onlywith
magnetsengaged.)
6.Float(detent)-Thisisadetentposition.Wheninthe
oat(detent)position,theloaderbucketcanfollow
levelofthegroundwithoutmovementofthecontrol
lever.(onlywithmagnetsengaged.)
4-15
