Case 1121F - Four Function Valve

3-CONTROLSANDINSTRUMENTS
Fourfunctionvalve[60629889]

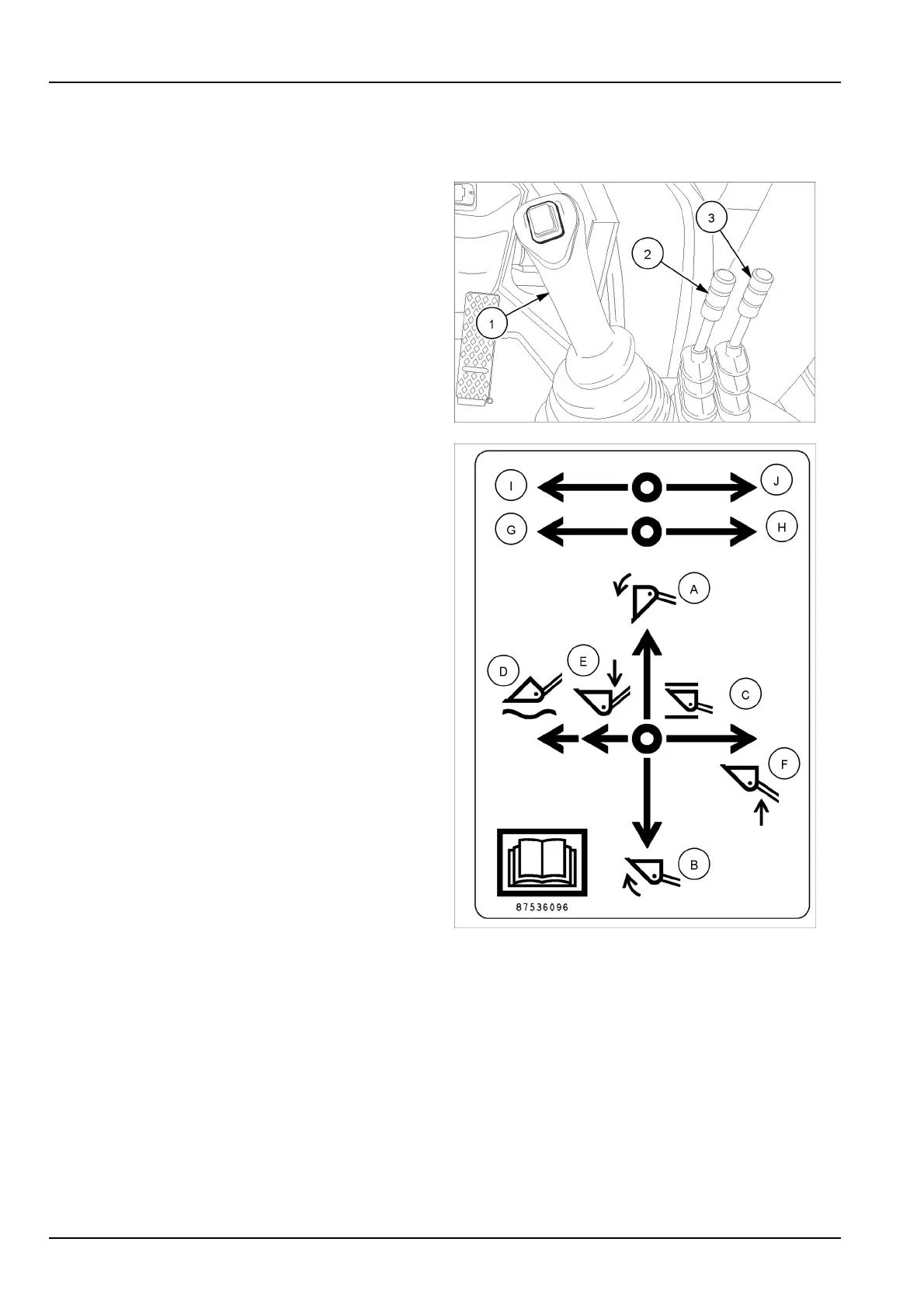

Fourfunctionvalve-threelevers
1.BUCKETANDLIFTARMCONTROL
A.DUMP
B.ROLLBACK
C.HOLD-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheHOLDposition.The
controlleverwillautomaticallyreturntotheHOLD
positionwhenreleased.Youmustmanuallymove
thecontrolleverfromtheFLOATpositiontothe
HOLDposition.
D.FLOAT(DETENT)-Thisisadetentposition.
WhenintheFLOAT(Detent)position,theloader
bucketcanfollowthelevelofthegroundwithout
movementofthecontrollever
E.LOWER
F.RAISE
2.AUXILIARYCONTROL
G.AUXILIARYFUNCTION
H.AUXILIARYFUNCTION
3.AUXILIARYCONTROL
I.AUXILIARYFUNCTION
J.AUXILIARYFUNCTION
