Case 1121F - Calibrating the Gear Box

7-MAINTENANCE
Calibratingthegearbox[60636529]
Calibratethegearboxwhenthehourmeterregisters250hoursforanewmachine.Calibrationofthegearboxshould
beperformedevery1500hoursthereafter.
Prioroperation:
Runthemachineandwarmtheoiltoabout85°C(185.0°F).Keepallnon-authorizedpersonnelclearofthearea.
Parkthemachineonarm,levelsurface.
1.PlacethetransmissioncontrolleverinNEUTRAL.
2.Settheparkingbrake.

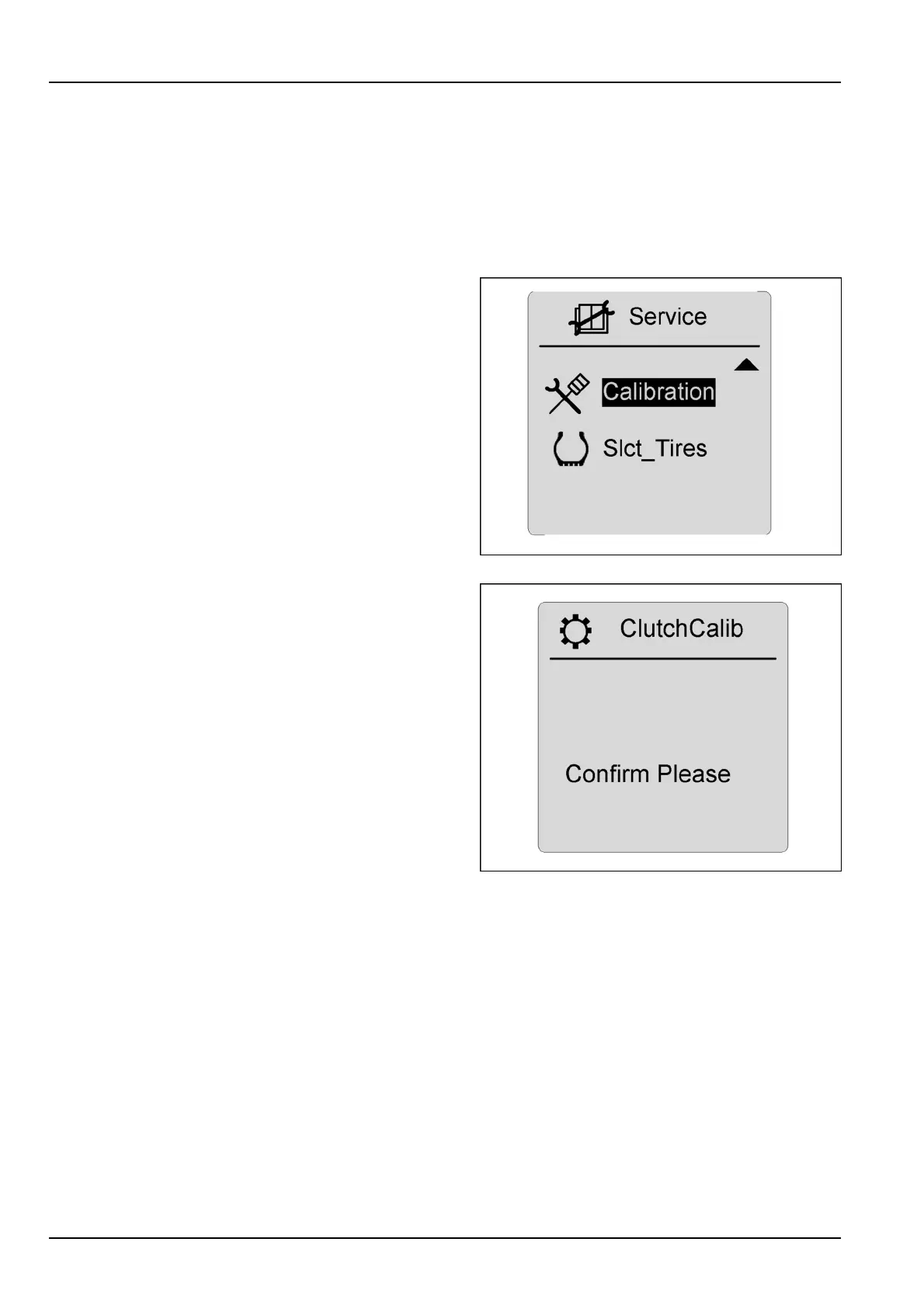

3.Withtheenginerunningatidle,entertheservicescreen
menuandscrolltoCongscreen.Presstheconrm
key.
UsedownarrowbuttontoscrolltoCalibration.Highlight
Calibrationandpresstheconrmkey.Alwaysfollowthe
promptsonthescreen.Shouldanerroroccur,usethe
escapekeytostartoveragain.
RCPH10WHL376BAH1
Thescreenwillshowaconrmprompt.Ifyoudoubtyour
abilitytoperformthisoperation,presstheescapekeyand
callyourdealer.
Ifmachineconditionsareincorrect,anerrormessagewill
appear.Thecalibrationprocedurewillnotcomplete.Fol-
lowthepromptstoaidincorrectinganymachinecondi-
tions.
Thescreenmaydisplaythefollowingpromptstoguide
theusertocorrectmachineconditions:
•
Notinneutral
•
ParkingbrakeOFF
•
Machinemoving
•
Oiltemptoolow
•
Oiltemptoohigh
•
EngineRPMlow
•
EngineRPMhigh
Ifconditionsarecorrect,theuserwillseesixcalibration
screensdisplayed.Theywillappearinthefollowing
order:
•
AdjustK1
•
AdjustK2
•
AdjustK3
•
AdjustK4
•
AdjustKV
•
AdjustKR
Oncethecalibrationprocessiscomplete,theuserwillbe
promptedtoturntheengineOffandrestartthemachine.
Iftheprocessisnotcompleted,thescreenwillpromptthe
usertoescape.
RCPH10WHL378BAH2
