4-OPERATINGINSTRUCTIONS
Fourfunctionvalve-threecontrollevers
NOTE:Thispageshowsthebasicloadercontrollever
positions.TheDetentSwitchisintheOFFposition.
Seeloaderfunctionswitchesinthismanualforre-
turn-to-dig,bucketheightcontrolandreturn-to-travel/oat
switches.
RCPH10WHL109BAL9
RCPH10WHL045BAH10

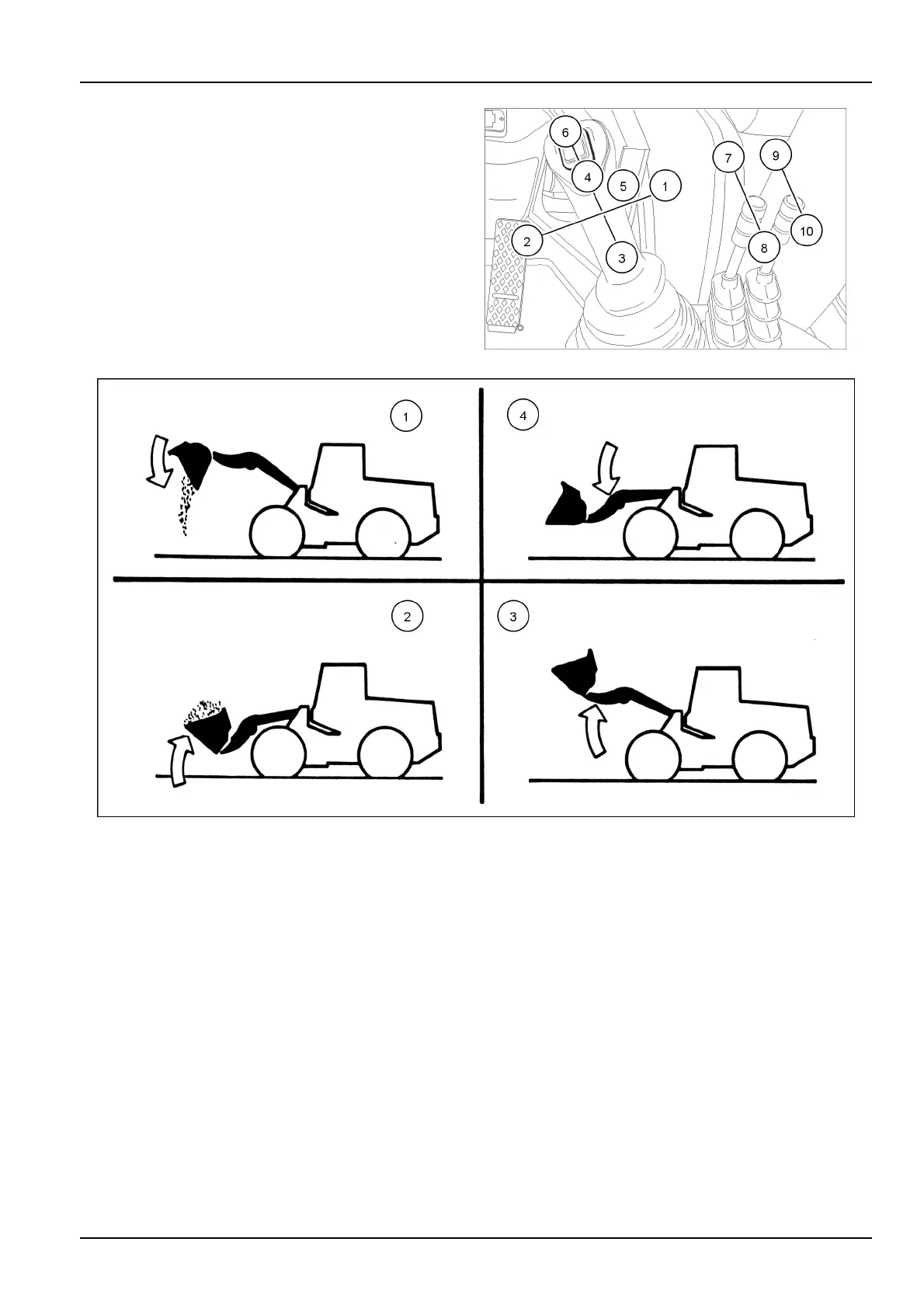

1.Dumpbucket
2.Rollbackbucket
3.Raiseliftarms
4.Lowerliftarms
5.Hold-Theloaderarmsandbucketwillnotmove
whenthecontrolleverisintheholdposition.When
released,thecontrollevermustbemanuallymoved
fromtheoatpositiontotheholdposition.(onlywith
magnetsengaged.)
6.Float(detent)-Thisisadetentposition.Wheninthe
oat(detent)position,theloaderbucketcanfollow
levelofthegroundwithoutmovementofthecontrol
lever.(onlywithmagnetsengaged.)
7.Firstauxiliaryfunction
8.Firstauxiliaryfunction
9.Secondauxiliaryfunction
10.Secondauxiliaryfunction
